Sch80S Stainless Steel Pipe Tube ASTM TP201 S20100 In Petroleum Industry

Name: Sch80S Stainless Steel Pipe Tube ASTM TP201 S20100 In Petroleum Industry
Brand: Wenzhou Zheheng Steel Industry Co.,Ltd
SKU: 88.9mm
Price: 2,600.00 USD
Availability: InStock

Product Details

Place of Origin: CHINA

Brand Name: zheheng steel

Certification: iso9001

Model Number: 88.9mm

Document: Product Brochure PDF

Payment & Shipping Terms

Minimum Order Quantity: Negotiable

Price: Negotiable

Packaging Details: In bundles with waterproof material,or wooden crate packing

Delivery Time: 30 DAYS

Payment Terms: L/C, T/T, D/A, D/P

Supply Ability: 50TONS/30DAYS

Get Best Price

Product Details

Product Description

Highlight:
                                                                                                                                                                                                                                                                                Sch80S Stainless Steel Seamless Pipe, Petroleum Industry Stainless Steel Pipe, TP201 Stainless Steel Pipe


Material:	TP201	Standard:	ASTM, GB, JIS, DIN, EN, AISI
Shape:	Sch80s	Technique:	Cold-drawn
APPLICATION:	Chemical	Package:	Woven Packing
OD:	6-830mm

Material:	TP201
Standard:	ASTM, GB, JIS, DIN, EN, AISI
Shape:	Sch80s
Technique:	Cold-drawn
APPLICATION:	Chemical
Package:	Woven Packing
OD:	6-830mm

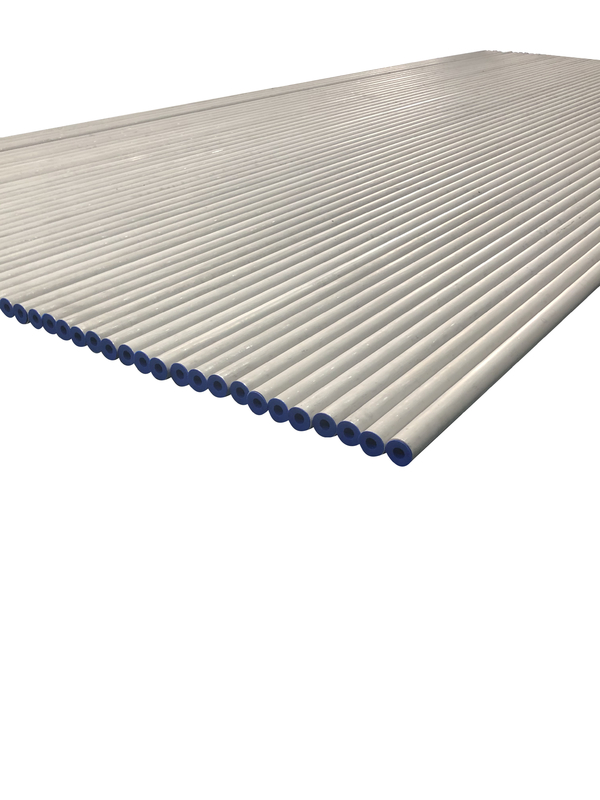

Sch80S Stainless Steel Pipe Tube ASTM TP201 S20100 In Petroleum Industry

Sch80S Stainless Steel Pipe Tube ASTM TP201 S20100 used in petroleum industry

Product Introduction

Cr-Ni Austenitic stainless steels 201 tubing is a lower-cost alternative to the SS304. It has wider applications, and has been used for handrails, decorative pipe, instruments, or other places where corrosion resistance and lower costs are required.

Applications

ASTM A554 TP201 stainless steel pipes are generally used in petroleum industry, pharmaceutical industry, food industry, aviation and aerospace industry, boiler and heat exchanger industry, architectural decoration industry, fluid transport, and more.

Chemical Composition

Element	Composition (%)
C	≤0.15
Si	≤1.00
Mn	5.50～7.50
P	≤0.060
S	≤0.030
Ni	3.50～5.50
Cr	16.00～18.00
Mo	/
Cu	/
N	≤0.25

Production Range

Name: Stainless Steel Seamless Pipe
Standard: EN10216-5, EN10216-2, DIN 17456, DIN 17458, ASTM A312, A213, A269, A511, A789, A790, GOST 9941, GOST 5632, JIS G3459, JIS G3463, GB/T14975, GB13296, GB5310, GB9948
Material Grade: 1.4571
Diameter: OD: 6-830mm
Wall Thickness: 0.6mm - 60mm
Length: Up to 13 meters or as per customer request
Tolerance: According to standard specifications
Surface Finishes: Natural color of annealing & pickling, 180G, 320G, 400G Satin/Hairline, 400G, 500G, 600G or 800G Mirror finish
Testing: UT, ET, HT, RT, and others according to standard requirements or customer specifications

Product Packaging

Tensile Requirements

Tensile Strength: 75 KSI
Yield Strength: 30 KSI

Technical Notes

10^-6*K^-1 = 10^-6/K
1 Ω*mm²/m = 1 μΩ*m
1 g/cm³ = 1 kg/dm³ = 1000 kg/m³
1 GPa = 1 kN/mm²
1 MPa = 1 N/mm²

Additional Specifications

Each pipe undergoes nondestructive electric testing or hydrostatic testing as per A999/A999M standard
Pipe lengths from NPS 1/8" to NPS 8 available up to 24ft (15-24ft range), with short lengths by agreement
Finished pipes are reasonably straight with workmanlike finish; imperfection removal by grinding permitted within wall thickness limits
Butt weld ends conform to ANSI B16.25 specifications
Pipe marking includes: Logo, Standard, Size, Heat No., Lot No., H.T/E.T/U.T
Packaging includes plastic end caps, anti-rust steel strip bundling, and plastic woven bag or film outer protection
Packing marks include: Size, Steel Grade, Quantity of Pieces/Weight/Meter
Official Original MTC (Material Test Certificate) provided for each order
