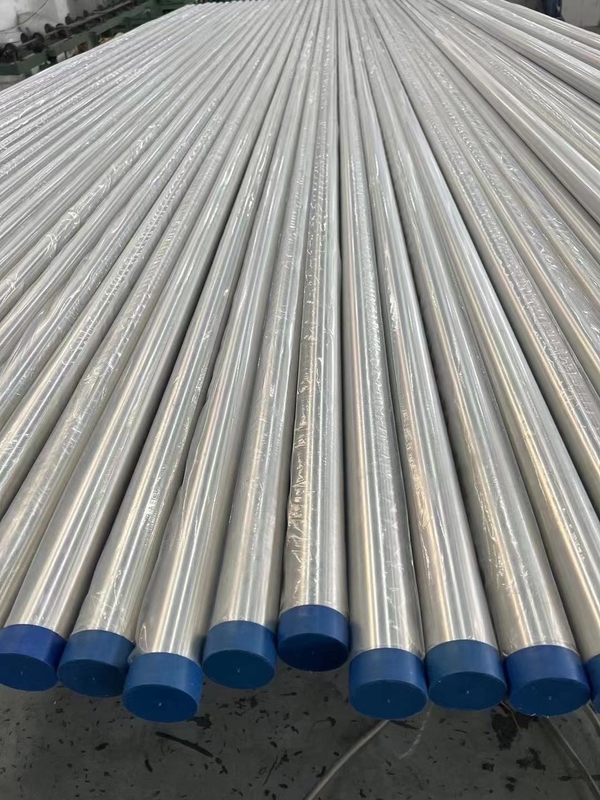

ASTM TP316Ti Seamless Stainless Steel Tube Sch40S Sch80S Used In Furnace Parts

ASTM TP310S Seamless Stainless Steel Tube Sch40S Sch80S Used in Furnace parts

Introduction to products:

316Ti stainless steel is a variant of the 316 series austenitic stainless steel. This steel contains a small amount of titanium, making it more resistant to corrosion and high temperatures than similar steels. The "Ti" in 316Ti stands for titanium, which combines with carbon to form titanium carbide, which helps stabilize the material from sensitization. Sensitization refers to the process by which chromium-rich grains are depleted from the microstructure of a metal at high temperatures, leaving it vulnerable to corrosion.
Another important characteristic of 316Ti is its excellent mechanical properties such as strength and ductility. It has good weldability and can be easily molded into various shapes.
In addition, compared to other grades such as 304 or 321 alloys, this grade of stainless steel is non-magnetic and has excellent resistance to pitting and crevice corrosion. Due to its outstanding properties, including durability, heat resistance, mechanical strength and excellent corrosion resistance, it is ideal for applications that require reliability under extreme environmental conditions.

APPLICATIONS :

• High corrosion resistance
• Excellent strength and toughness properties

Features

Oxidation resistance up to 1650°F for continuous service and up to 1500°F where cyclic heating is involved.

General purpose corrosion resistance.

Non-magnetic except when cold worked.

May be susceptible to chloride stress corrosion cracking.

Used where field working is employed.

Description for our production range:

our products packing:

Tensile Requirements – Stainless Steel 310S/310H:

Tensile Strength (KSI): 75

Yield Strength (KSI): 30

Notes:

10-6·K-1 = 10-6/K

1 Ω·mm²/m = 1 μΩ·m

1 g/cm3 = 1 kg/dm3 = 1000 kg/m3

1 GPa = 1 kN/mm2

1 MPa = 1 N/mm2

other supplement:

1.A999/A999M: Each pipe shall be subjected to the nondestructive electric test or the hydrostatic test, the pipe of test to be used shall be at the option of the mfg, unless otherwise specified in the PO.
2. The Pipe lengths : Unless otherwise agreed upon, all size from NPS 1/8" TO AND INCLUDING nps 8 are available in a length up to 24ft with the permitted range of 15 to 24 ft. Short length are acceptable and the number and min, length shall be agreed upon between mfg and purchaser.
3. The finished pipe shall be reasonably straight and shall have workmanlike finish, Removal of imperfections by grinding is permitted, provided the W.T are not decreased to the less than the permitted in Section 9 of Specification A999/A999M
4. Butt Weld End: According to ANSI B 16.25
5. Pipe Marking: Specified in A999/999M, include "Logo+Standard+SIZE+Heat No.+Lot No.+H.T/E.T/U.T"
6. Packing: Each Pipe end is protected by Plastic cap. Then packed by Anti-rust steel strip, The outside of the bundle is plastic woven bag, or Plastic film.
7. Packing Mark: SIZE + STEEL GRADE+ QTY OF PIECE/WEIGHT/METRE.
8.MTC: BWSS Official Original MTC paper will be supplied for each order.
