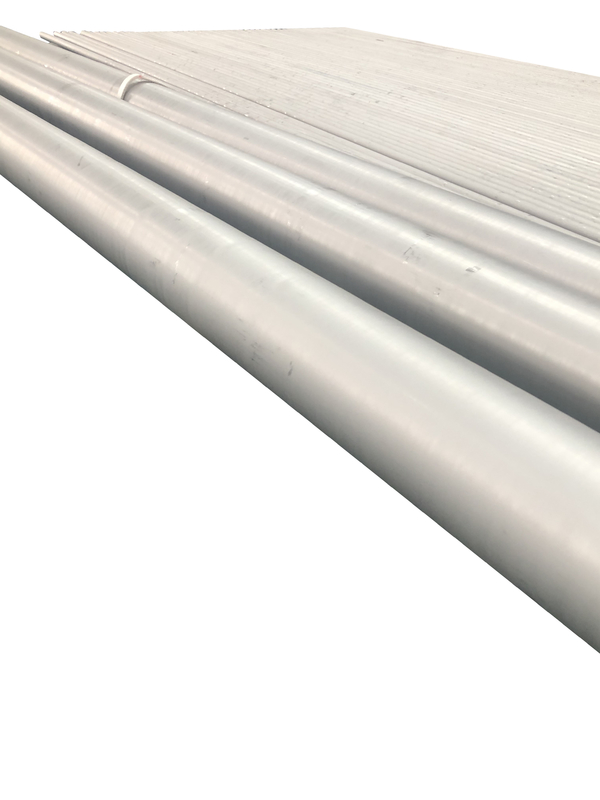

Sch80S Stainless Steel Pipe Tube EN 1.4571 Intended For Pipelines

Name: Sch80S Stainless Steel Pipe Tube EN 1.4571 Intended For Pipelines
Brand: Wenzhou Zheheng Steel Industry Co.,Ltd
SKU: 88.9mm
Price: 2,600.00 USD
Availability: InStock

Product Details

Place of Origin: CHINA

Brand Name: zheheng steel

Certification: iso9001

Model Number: 88.9mm

Document: Product Brochure PDF

Payment & Shipping Terms

Minimum Order Quantity: Negotiable

Price: Negotiable

Packaging Details: In bundles with waterproof material,or wooden crate packing

Delivery Time: 30 DAYS

Payment Terms: L/C, T/T, D/A, D/P

Supply Ability: 50TONS/30DAYS

Get Best Price

Product Details

Product Description

Highlight:
                                                                                                                                                                                                                                                                                Sch80S Stainless Steel Pipe Tube, Stainless Steel Pipe Tube for pipelines, EN 1.4571 stainless Seamless Pipe


Material:	1.4571	Standard:	ASTM, GB, JIS, DIN, EN, AISI
Shape:	Sch80s	Technique:	Cold-drawn
APPLICATION:	Chemical	Package:	Woven Packing
OD:	6-830mm

Material:	1.4571
Standard:	ASTM, GB, JIS, DIN, EN, AISI
Shape:	Sch80s
Technique:	Cold-drawn
APPLICATION:	Chemical
Package:	Woven Packing
OD:	6-830mm

Sch80S Stainless Steel Pipe Tube EN 1.4571 Intended For Pipelines

Product Overview

EN 1.4571 (X6CrNiMoTi17-12-2) Stainless Steel Tube Sch80S intended for pipelines

DIN EN 1.4571 material (X6CrNiMoTi17-12-2) is manufactured by adding titanium (Ti) to EN 1.4401 stainless steel (X5CrNiMo17-12-2) to enhance resistance to intergranular corrosion. Titanium improves the corrosion resistance of stainless steel, particularly intergranular corrosion, effectively preventing sensitization of stainless steel while also enhancing stability in high temperature and high pressure environments. When the mass fraction of titanium is between 0.03% and 0.1%, the yield strength of the steel is improved. Consequently, EN 1.4571 material offers superior temperature resistance, corrosion resistance, and sensitization resistance compared to 1.4401.

Applications

Construction encasement, doors, windows and armatures
Off-shore modules
Container and tubes for chemical tankers
Warehouse and land transportation of chemicals
Food and beverages, pharmacy industries
Synthetic fibre, paper and textile plants
Pressure vessels

Due to the Ti-alloy composition, resistance to intergranular corrosion is guaranteed after welding.

Chemical Composition of 1.4571

Country (Region)	Standard	Steel Grade	C, ≤	Si, ≤	Mn, ≤	P, ≤	S, ≤	Cr	Ni	Ti	Mo
European Union	EN 10216	X6CrNiMoTi17-12-2 (1.4571)	MAX 0.08	MAX 1	MAX 2	MAX 0.04	MAX 0.015	16.5-18.5	10.5-13.5	5xC to 0.70	2 to 2.5

Product Specifications

Name: Stainless Steel Seamless Pipe
Standard: EN10216-5, EN10216-2, DIN 17456, DIN 17458, ASTM A312, A213, A269, A511, A789, A790, GOST 9941, GOST 5632, JIS G3459, JIS G3463, GB/T14975, GB13296, GB5310, GB9948
Material Grade: 1.4571
Diameter: OD: 6-830mm
Wall Thickness: 0.6mm - 60mm
Length: Up to 13 meters or as per customer request
Tolerance: According to standard specifications
Surface Finishes: Natural color of annealing & pickling, 180G, 320G, 400G Satin/Hairline, 400G, 500G, 600G or 800G Mirror finish
Testing: UT, ET, HT, RT, and others according to standard requirements or customer specifications

Product Packaging

Tensile Requirements

Tensile Strength: 75 KSI
Yield Strength: 30 KSI

Technical Notes

10-6*K-1 = 10-6/K
1 Ω*mm²/m = 1 μΩ*m
1 g/cm3 = 1 kg/dm3 = 1000 kg/m3
1 GPa = 1 kN/mm2
1 MPa = 1 N/mm2

Additional Specifications

A999/A999M: Each pipe shall be subjected to nondestructive electric test or hydrostatic test, with test method selection at manufacturer's option unless otherwise specified in purchase order.
Pipe lengths: Sizes from NPS 1/8" to NPS 8 available in lengths up to 24ft (15-24ft range). Short lengths acceptable with agreement between manufacturer and purchaser.
Finished pipes shall be reasonably straight with workmanlike finish. Imperfection removal by grinding permitted provided wall thickness remains within A999/A999M Section 9 specifications.
Butt Weld End: According to ANSI B 16.25
Pipe Marking: As specified in A999/999M, including "Logo+Standard+SIZE+Heat No.+Lot No.+H.T/E.T/U.T"
Packing: Each pipe end protected by plastic cap, bundled with anti-rust steel strip, and wrapped in plastic woven bag or plastic film.
Packing Mark: SIZE + STEEL GRADE + QTY OF PIECE/WEIGHT/METRE
MTC: BWSS Official Original MTC paper supplied for each order.
