Product Details
Place of Origin: Wenzhou,China
Brand Name: Zheheng
Certification: ISO9001
Model Number: TP309Hcb
Payment & Shipping Terms
Minimum Order Quantity: MOQ500kg
Packaging Details: In wooded cases or pallets,or as for clients requirement
Delivery Time: 7-15 working days after receiving payment
Payment Terms: L/C, D/P, T/T, Western Union
Supply Ability: 1000 Ton/Tons per Month
WT: |
SCH5-XXS |
Size: |
1/8''-24'' |
Surface Finish: |
Polishing, Hair Line,Pickling |
Price Terms: |
FOB,CIF,CFR,EXW |
Application: |
Industry |
Ends: |
Plain/Bevelled |
WT: |
SCH5-XXS |
Size: |
1/8''-24'' |
Surface Finish: |
Polishing, Hair Line,Pickling |
Price Terms: |
FOB,CIF,CFR,EXW |
Application: |
Industry |
Ends: |
Plain/Bevelled |
Characteristic

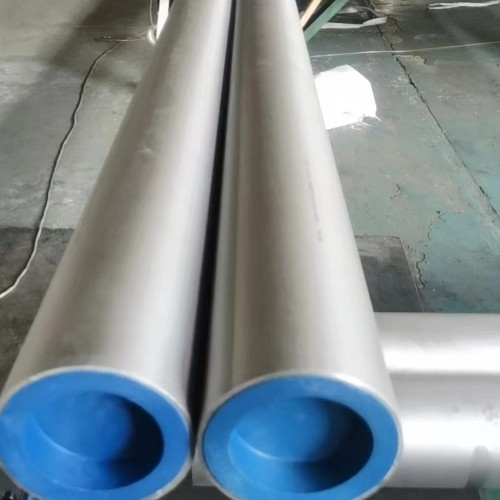

ASTM A312 TP 309HCB stainless steel pipes are austenitic chromium-nickel stainless steels that are often used for higher temperature applications. Grade 309HCB is the AISI designation for this material. 309HCB Stainless steel pipe are high-alloy steels which have higher corrosion resistance compared to other steels due to the presence of large amounts of chromium. SS 309HCB Pipe is a highly alloyed austenitic stainless steel used for its excellent oxidation resistance, high temperature strength and creep resistance. Stainless Steel 309HCB Seamless Pipes and SS 309HCB Welded Pipes used in different industries like oil & gas, Refineries, Fertilizers, Heat-Exchangers, Paper & Pulp, Pharmaceuticals, Chemicals, Water Treatment, Dairy, Sugar & Food Processing etc.
Chemical Composition
| A312 GRADES | UNS | C | Mn | P | S | Si | Cr | Ni | Mo | Ti | Nb | N |
| TP309HCb | S30941 | 0.04-0.10 | 2 | 0.045 | 0.03 | 1 | 22.0-24.0 | 12.0-16.0 | 0.75 | 10xC min 1.10 max |
||
Mechanical Properties
| Grade | Tensile Strength (MPa) min | Yield Strength 0.2% Proof (MPa) min | Elongation (% in 50mm) min | Hardness | |
| Rockwell B (HR B) max | Brinell (HB) max | ||||
| 309HCB | 515 | 205 | 40 | 95 | 217 |
Physical Properties
| Density (lb./ in^2) @ RT | 0.29 | |
| Modulus of Elasticity in Tension (psi x 10^6) | 29 | |
| Specific Heat (BTU/o F/lb.) | 32 to 212 oF | 0.12 |
| Thermal Conductivity (BTU/hr/ft^2/ft) | 212oF | 9 |
| 932oF | 10.8 | |
| Mean Coefficient of Thermal Expansion (in. x 10^-6 per o F) | 32 to 212oF | 8.3 |
| 32 to 600oF | 9.3 | |
| 32 to 1,000oF | 9.6 | |
| 32 to 1,200oF | 10 | |
| Electrical Resistivity (micro ohms – cm) | at 70oF | 39.8 |
| Melting Point Range (oF) | 2550 – 2650 | |
| Oxidation Resistance – Continuous Service(oF) | 2000 | |
| Oxidation Resistance – Intermittent Service(oF) | 1800 |
To improve the corrosion resistance of steel, the following measures can be taken:
(1) to form a stable passivation film on the surface of the steel. Passivation is due to the action of metal and medium to produce a thin protective film, the existence of the protective film hinders the anode process, thus improving the chemical stability of the metal. After chromium is contained in the steel, chromium is also contained in the passivation film. The higher the chromium content in the steel, the higher the chromium content in the TP309cb stainless steel tube film, which will increase the stability of the film, and its thickness is above 1nm. Therefore, the corrosion resistance of stainless steel is mainly caused by a chromium-rich oxide film with a thickness of about 1nm or more. The type of medium and other elements in the steel will affect the stability of the passivation film.
(2) The steel obtains a single solid solution structure. For example, 18Cr-8Ni austenitic stainless steel has high corrosion resistance only after solution treatment to obtain a single uniform austenitic structure
(3) Increase the electrode potential of the solid solution. The corrosion resistance of the metal is closely related to the type, concentration, temperature, pressure and other conditions of the medium, and the oxidation capacity of the medium has the greatest impact.
