Product Details
Place of Origin: Wenzhou,China
Brand Name: ZHE HENG
Certification: BV, PED, ISO9001
Model Number: ASMT316
Payment & Shipping Terms
Minimum Order Quantity: 500 kg
Price: $1000-4200/Ton
Packaging Details: As to clients' requirements,Wooden Cases,Bundle Packin,Waterproof Paper Covered
Delivery Time: 30-45 work days
Payment Terms: L/C, T/T, D/P, D/A
Supply Ability: 1000+
Term Name: |
Stainless Steel Pipe |
Material Grade: |
ASMT316,ASME S31600 |
Shape: |
Rounde Pipe,Square Pipe,Rectangular Pipe |
Technique: |
Hot Rolled,Pickling |
Length: |
2100mm Or 15000mm |
Size: |
As Per Requirement |
Welding Line Type: |
Seamless,Welded |
Packing: |
As To Clients' Requirements,Waterproof Paper Covered |
Term Name: |
Stainless Steel Pipe |
Material Grade: |
ASMT316,ASME S31600 |
Shape: |
Rounde Pipe,Square Pipe,Rectangular Pipe |
Technique: |
Hot Rolled,Pickling |
Length: |
2100mm Or 15000mm |
Size: |
As Per Requirement |
Welding Line Type: |
Seamless,Welded |
Packing: |
As To Clients' Requirements,Waterproof Paper Covered |

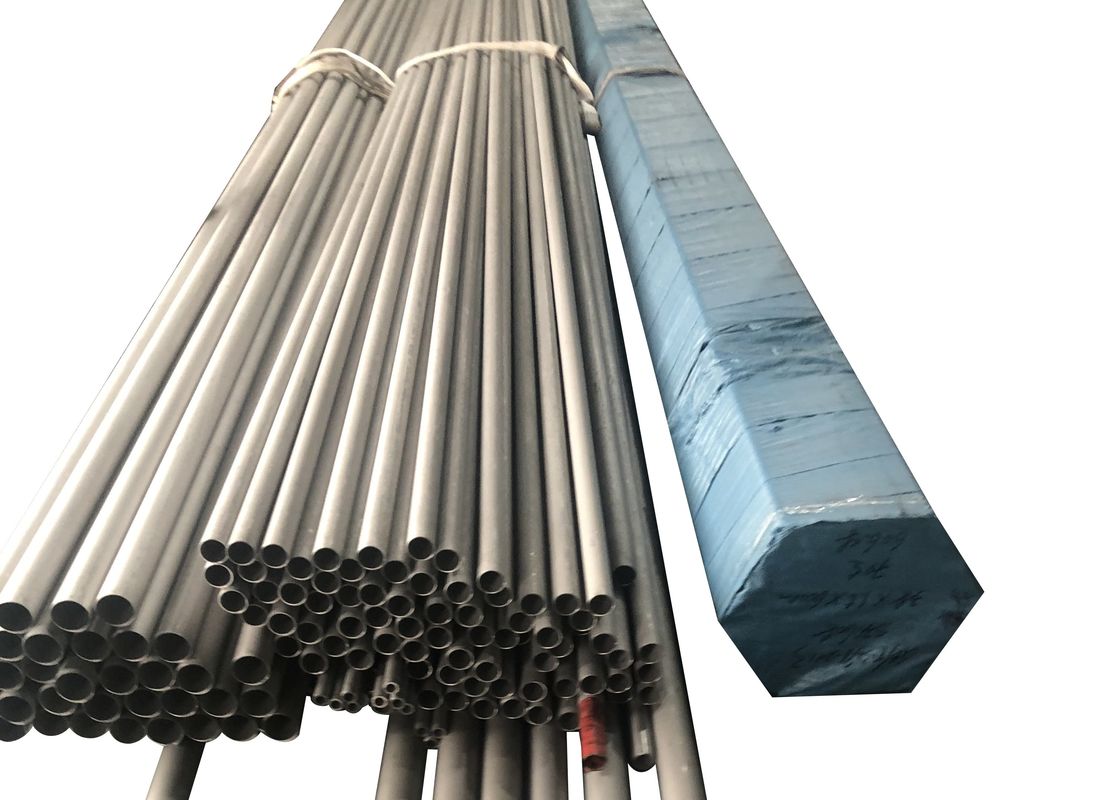

Overview:
316 stainless steel has good weldability. All standard welding methods can be used for welding. In order to obtain the best corrosion resistance, the welded section of 316 stainless steel needs to be annealed after welding. If 316L stainless steel is used, post-welding annealing isn't required.
Specification:
ASTM/ASME | ISO | USA | JAPAN | BRITAIN | GERMANY | CNS | |
UNS No. | AISI | JIS | BS | WERKSTOFF DIN | |||
S31600 | 20 | 316 | SUS316 | 316S31 | 1.4401 | X5CrNiMo17122 | 316 |
S31603 | 19 | 316L | SUS316L | 316S11 | 1.4404 | X2CrNiMo17132 | 316L |
Outside Diameter | OD 0.28-1219mm |
Thickness | 0.08-100mm |
Seamless Stainless Steel Pipes | 1/8“NB to 32“NB IN |
Production Process | Cold Drawn,Bright Anneal.etc |
Type | Seamless,welded |
Surface | Pickling,Bright; |
Price Item | EXW,FOB,CNF,CIF etc |
Ends: | Beveled or plain end, square cut, burr free |
Stainless Steel Seamless Pipe Chemical Component:
Mechanical Composition: | |||||
Grade | Tensile | Yield | %Age | Hardness (Max) | |
Strength Mpa, (Min) | Strength | Elongation | |||
Mpa, (Min) | in 50mm | ||||
gauge length min | BHN | Rb | |||
316 | 515 | 205 | 40 | 217 | 95 |
316L | 485 | 170 | 40 | 217 | 95 |
Mechanical Properties:
Grade | Tensile | Yield | %Age | Hardness (Max) | |
Strength Mpa, (Min) | Strength | Elongation | |||
Mpa, (Min) | in 50mm | ||||
gauge length min | BHN | Rb | |||
301 | 515 | 205 | 40 | 217 | 95 |
304 | 515 | 205 | 40 | 201 | 92 |
304L | 485 | 170 | 40 | 201 | 92 |
310S | 515 | 205 | 40 | 217 | 95 |
316 | 515 | 205 | 40 | 217 | 95 |
316L | 485 | 170 | 40 | 217 | 95 |
317 | 515 | 205 | 35 | 217 | 95 |
317L | 515 | 205 | 40 | 217 | 95 |
321 | 515 | 205 | 40 | 217 | 95 |
347 | 515 | 205 | 40 | 201 | 92 |
409 | 380 | 170 | 20 | 179 | 88 |
409M | 430 | 275 | 20 | 187 | 90 |
410S | 415 | 205 | 22 | 183 | 89 |
410 | 450 | 205 | 20 | 217 | 89 |
420 | 700( max ) | 0 | 15 | 217 | 95 |
430 | 450 | 205 | 22 | 183 | 89 |
JSL AUS | 515 | 205 | 40 | 217 | 95 |
JS- 203 | 515 | 205 | 40 | 217 | 95 |
301M | 515 | 205 | 40 | 217 | 95 |
Applicable
The main uses of stainless steel pipes are pulp and paper equipment heat exchangers, dyeing equipment, film washing equipment, pipelines, coastal area building external materials. Now it is also used in the field of solenoid valves, mainly for shells, clamps, spheres, valve bodies, seats, nuts, stem and so on.
FAQ:
Q: Are you a manufacturer or merely a trader?
A: We are group of companies and owned manufacturer bases and trading company. We specialized in special steel which include alloy structural steel and carbon steel and stainless steel, etc. All material are with high quality and competitive price.
Q: How do you guarantee the quality of your product?
A: Firstly, we can provide the certificates from the third party, such as TUV, CE, if you need. Secondly, we have a complete set of inspection system and every process is checked by QC. Quality is the lifeline of enterprise survival.
Q: Delivery time?
A: We have ready stock for most of material grades in our warehouse. If the material don't have stock, the delivery lead time is about 5-30 days after receiving your prepayment or firm order.
Q: What is the payment term?
A: T/T or L/C.
Q: Can you provide a sample for our testing before confirm the order?
A: Yes. We can provide sample to you for approval before you place an order to us. Free sample is available if we have stock.
Q: Can we visit your company and factory?
A: Yes, warmly welcome! We can book the hotel for you before you come to China and arrange our driver to our airport to pick you up when you come.
