Product Details
Place of Origin: Wenzhou,China
Brand Name: ZHE HENG
Certification: BV, PED, ISO9001
Model Number: ASTM316,ASTM316L
Payment & Shipping Terms
Minimum Order Quantity: 500 kg
Price: $1000-4200/Ton
Packaging Details: As to clients' requirements，Wooden Cases，Bundle Packin
Delivery Time: 30-45 work days
Payment Terms: L/C, T/T, D/P, D/A
Supply Ability: 1000+
Term Name: |

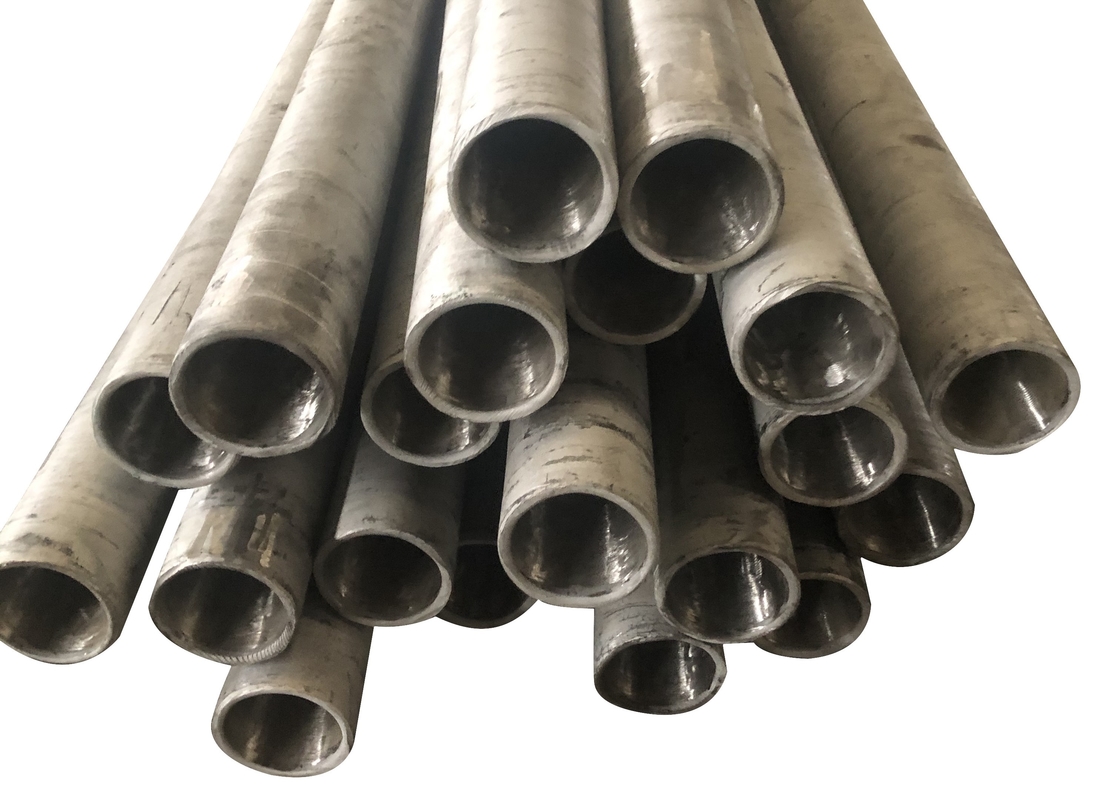

Stainless Seamless Steel Pipe |
Material Grade: |
ASTM316,ASTM316L |
Shape: |
Rounde Pipe,Square Pipe,Rectangular Pipe |
Technique: |
Cold Rolled,Pickling |
Length: |
2300mm Or 13000mm |
Size: |
As Per Requirement |
Welding Line Type: |
Welded，Seamless |
Term Name: |
Stainless Seamless Steel Pipe |
Material Grade: |
ASTM316,ASTM316L |
Shape: |
Rounde Pipe,Square Pipe,Rectangular Pipe |
Technique: |
Cold Rolled,Pickling |
Length: |
2300mm Or 13000mm |
Size: |
As Per Requirement |
Welding Line Type: |
Welded，Seamless |
Product Description
“Quality and quantity asssured”
Welecome know more about our company.
1.10+rich experience in stainless steel pipes,coil,duplex steel pipes,fittings and all kinds of bars;
2.Our factory standard has a number of relevant certificates,such as ISO9001,BV certified
3.Competive prices with cusomer oriednted
Any questions, pls feel free to let me know and I will reply you in 2 hours;
Looking forward to your reply!
Overiview
316 stainless steel pipe is made of 18-8 type stainless steel containing 12-14% zinc after adding 2-3%, the purpose is to improve its corrosion resistance and corrosion resistance. It has good corrosion resistance and can be used in pipelines for various oilfield chemicals, as well as in petrochemical, pharmaceutical, food, beverage and other industrial fields.
Specification:
| Outside Diameter | OD 0.28-1219mm |
| Thickness | 0.08-100mm |
| Seamless Stainless Steel Pipes | 1/8“NB to 32“NB IN |
| Production Process | Cold Drawn,Bright Anneal.etc |
| Type | Seamless,welded |
| Surface | Pickling,Bright； |
| Price Item | EXW,FOB,CNF,CIF etc |
| Application |
Petrochemical,
Pharmaceutical, Food, Beverage and other industrial fields.
|
| Ends: | Beveled or plain end, square cut, burr free |
Stainless Steel Seamless Pipe Chemical Component:
| Mechanical Composition: | |||||
| Grade | Tensile | Yield | %Age | Hardness (Max) | |
| Strength Mpa, (Min) | Strength | Elongation | |||
| Mpa, (Min) | in 50mm | ||||
| gauge length min | BHN | Rb | |||
| 316 | 515 | 205 | 40 | 217 | 95 |
| 316L | 485 | 170 | 40 | 217 | 95 |
Size table:
Seamless stainless steel pipes
| WALL THCKNESS FOR STAINLESS STEEL PIPE &T UBE (ASME B36.10 & B36.19) | |||||||||||||||
| DNmm | DNin | φmm | SCH5S | SCH10S | SCH40S | STD | Sch40 | Sch60 | Sch80s | XS | Sch80 | Sch120 | Sch140 | Sch160 | XXS |
| 6 | 1/8 | 10.3 | 1.24 | 1.73 | 1.73 | 1.73 | 2.41 | 2.41 | 2.41 | ||||||
| 8 | 1/4 | 13.7 | 1.65 | 2.24 | 2.24 | 2.24 | 3.02 | 3.02 | 3.02 | ||||||
| 10 | 3/8 | 17.1 | 1.65 | 2.31 | 2.31 | 2.31 | 3.2 | 3.2 | 3.2 | ||||||
| 15 | 1/2 | 21.3 | 1.65 | 2.11 | 2.77 | 2.77 | 2.77 | 3.73 | 3.73 | 3.73 | 4.78 | 7.47 | |||
| 20 | 3/4 | 26.7 | 1.65 | 2.11 | 2.87 | 2.87 | 2.87 | 3.91 | 3.91 | 3.91 | 5.56 | 7.82 | |||
| 25 | 1 | 33.4 | 1.65 | 2.77 | 3.38 | 3.38 | 3.38 | 4.55 | 4.55 | 4.55 | 6.35 | 9.09 | |||
| 32 | 1 1/4 | 42.2 | 1.65 | 2.77 | 3.56 | 3.56 | 3.56 | 4.85 | 4.85 | 4.85 | 6.35 | 9.7 | |||
| 40 | 1 1/2 | 48.3 | 1.65 | 2.77 | 3.68 | 3.68 | 3.68 | 5.08 | 5.08 | 5.08 | 7.14 | 10.15 | |||
| 50 | 2 | 60.3 | 1.65 | 2.77 | 3.91 | 3.91 | 3.91 | 5.54 | 5.54 | 5.54 | 8.74 | 11.07 | |||
| 65 | 2 1/2 | 76 | 2.11 | 3.05 | 5.16 | 5.16 | 5.16 | 7.01 | 7.01 | 7.01 | 9.53 | 14.02 | |||
| 80 | 3 | 88.9 | 2.11 | 3.05 | 5.49 | 5.49 | 5.49 | 7.62 | 7.62 | 7.62 | 11.13 | 15.24 | |||
| 90 | 3 1/2 | 101.6 | 2.11 | 3.05 | 5.74 | 5.74 | 5.74 | 8.08 | 8.08 | 8.08 | |||||
| 100 | 4 | 114.3 | 2.11 | 3.05 | 6.02 | 6.02 | 6.02 | 8.56 | 8.56 | 8.56 | 11.13 | 13.49 | 17.12 | ||
| 125 | 5 | 141.3 | 2.77 | 3.4 | 6.55 | 6.55 | 6.55 | 9.53 | 9.53 | 9.53 | 12.7 | 15.88 | 19.05 | ||
| 150 | 6 | 168.3 | 2.77 | 3.4 | 7.11 | 7.11 | 7.11 | 10.97 | 10.97 | 10.97 | 14.27 | 18.26 | 21.95 | ||
| 200 | 8 | 219.1 | 2.77 | 3.76 | 8.18 | 8.18 | 8.18 | 10.31 | 12.7 | 12.7 | 12.7 | 18.26 | 20.62 | 23.01 | 22.23 |
| 250 | 10 | 273 | 3.4 | 4.19 | 9.27 | 9.27 | 9.27 | 12.7 | 12.7 | 12.7 | 15.09 | 21.44 | 25.4 | 28.58 | 25.4 |
| 300 | 12 | 323.8 | 3.96 | 4.57 | 9.53 | 9.53 | 10.31 | 14.27 | 12.7 | 12.7 | 17.48 | 25.4 | 28.58 | 33.32 | 25.4 |
| 350 | 14 | 355.6 | 3.96 | 4.78 | 9.53 | 11.13 | 15.09 | 12.7 | 19.05 | 27.79 | 31.75 | 35.71 | |||
| 400 | 16 | 406.4 | 4.19 | 4.78 | 9.53 | 12.7 | 16.66 | 12.7 | 21.44 | 30.96 | 36.53 | 40.49 | |||
| 450 | 18 | 457 | 4.19 | 4.78 | 9.53 | 14.27 | 19.05 | 12.7 | 23.83 | 34.93 | 39.67 | 45.24 | |||
| 500 | 20 | 508 | 4.78 | 5.54 | 9.53 | 15.09 | 20.62 | 12.7 | 26.19 | 38.1 | 44.45 | 50.01 | |||
| 550 | 22 | 559 | 4.78 | 5.54 | 9.53 | 22.23 | 12.7 | 28.58 | 41.28 | 47.63 | 53.98 | ||||
| 600 | 24 | 610 | 5.54 | 6.35 | 9.53 | 17.48 | 24.61 | 12.7 | 30.96 | 46.02 | 52.37 | 59.54 | |||
| 650 | 26 | 660 | 9.53 | 12.7 | |||||||||||
| 700 | 28 | 711 | 9.53 | 12.7 | |||||||||||
| 750 | 30 | 762 | 6.35 | 7.92 | 9.53 | 12.7 | |||||||||
| 800 | 32 | 813 | 9.53 | 17.48 | 12.7 | ||||||||||
Conforms to ANSI B36.19 and ANSI B36.10 standards
FAQ:
Q: Are you a manufacturer or merely a trader?
A: We are group of companies and owned manufacturer bases and trading company. We specialized in special steel which include alloy structural steel and carbon steel and stainless steel, etc. All material are with high quality and competitive price.
Q: How do you guarantee the quality of your product?
A: Firstly, we can provide the certificates from the third party, such as TUV, CE, if you need. Secondly, we have a complete set of inspection system and every process is checked by QC. Quality is the lifeline of enterprise survival.
Q: Delivery time?
A: We have ready stock for most of material grades in our warehouse. If the material don't have stock, the delivery lead time is about 5-30 days after receiving your prepayment or firm order.
Q: What is the payment term?
A: T/T or L/C.
Q: Can you provide a sample for our testing before confirm the order?
A: Yes. We can provide sample to you for approval before you place an order to us. Free sample is available if we have stock.
Q: Can we visit your company and factory?
A: Yes, warmly welcome! We can book the hotel for you before you come to China and arrange our driver to our airport to pick you up when you come.
