Product Details
Place of Origin: Wenzhou,China
Brand Name: ZHE HENG
Certification: ISO9001,CE，BV
Model Number: ASTM304，304L
Payment & Shipping Terms
Minimum Order Quantity: 500 kg
Price: $1000-4200/Ton
Packaging Details: As to clients' requirements，Wooden Cases，Bundle Packin
Delivery Time: 30-45 work days
Payment Terms: L/C, T/T, D/P, D/A
Supply Ability: 1000+
Term Name: |
Stainless Steel Pipe |
Material Grade: |
ASTM304，ASTM304L |
Shape: |
Curved Pipe,Square Pipe,Rectangular Pipe |
Technique: |
Cold Rolled,Pickling |
Length: |
1000mm Or 16000mm |
Size: |
As Per Requirement，O.D 0.4~2.0mm |
Welding Line Type: |
Seamless,Welded |
Package: |
As To Clients' Requirements，Bundle Packing，Wooden Cases |
Term Name: |
Stainless Steel Pipe |
Material Grade: |
ASTM304，ASTM304L |
Shape: |
Curved Pipe,Square Pipe,Rectangular Pipe |
Technique: |
Cold Rolled,Pickling |
Length: |
1000mm Or 16000mm |
Size: |
As Per Requirement，O.D 0.4~2.0mm |
Welding Line Type: |
Seamless,Welded |
Package: |
As To Clients' Requirements，Bundle Packing，Wooden Cases |

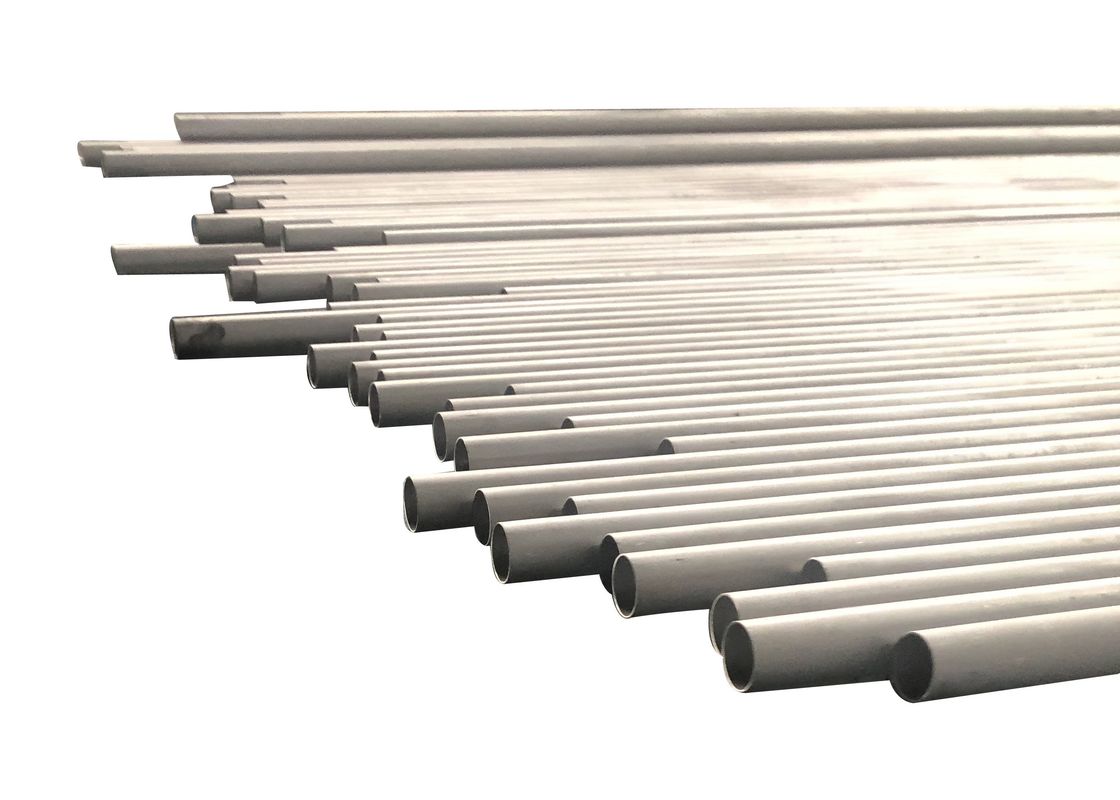

Overview
Stainless steel decorative tube is normally bright tube, the surface is normal matte or mirror state, in addition, decorative tube also uses electroplating, painting, spraying and other processes for its surface a layer of more bright color; The surface of the industrial pipe is normally acid white surface, that is, pickling surface, the surface requirements are not strict, the wall thickness is not uniform, the internal and external surface brightness of the pipe is low, the fixed size cost is high, the internal and external surface should have pitting and black spots, which is not easy to remove.
Specification:
| Outside Diameter | OD 0.28-1219mm |
| Thickness | 0.08-100mm |
| Seamless Stainless Steel Pipes | 1/8“NB to 32“NB IN |
| Production Process | Cold Drawn,Bright Anneal.etc |
| Type | Seamless,welded |
| Surface | Pickling,Bright； |
| Price Item | EXW,FOB,CNF,CIF etc |
| Application |
It is often used as a car frame and exhaust pipe to produce a variety of conventional weapons, gun barrels and shells. |
| Ends: | Beveled or plain end, square cut, burr free |
Stainless Steel Seamless Pipe Chemical Component:
| Chemical Composition about stainless steel pipe | |||||||
| Grade | C ≤ | Si ≤ | Mn ≤ | P ≤ | S ≤ | Ni ≤ | Cr ≤ |
| 304 | 0.08 | 1 | 2 | 0.045 | 0.03 | 10.00-14.00 | 16.00-18.00 |
| 304L | 0.035 | 0.75 | 2 | 0.045 | 0.03 | 10.00-15.00 | 16.00-18.00 |
Size table:
Seamless stainless steel pipes
| WALL THCKNESS FOR STAINLESS STEEL PIPE &T UBE (ASME B36.10 & B36.19) | |||||||||||||||
| DNmm | DNin | φmm | SCH5S | SCH10S | SCH40S | STD | Sch40 | Sch60 | Sch80s | XS | Sch80 | Sch120 | Sch140 | Sch160 | XXS |
| 6 | 1/8 | 10.3 | 1.24 | 1.73 | 1.73 | 1.73 | 2.41 | 2.41 | 2.41 | ||||||
| 8 | 1/4 | 13.7 | 1.65 | 2.24 | 2.24 | 2.24 | 3.02 | 3.02 | 3.02 | ||||||
| 10 | 3/8 | 17.1 | 1.65 | 2.31 | 2.31 | 2.31 | 3.2 | 3.2 | 3.2 | ||||||
| 15 | 1/2 | 21.3 | 1.65 | 2.11 | 2.77 | 2.77 | 2.77 | 3.73 | 3.73 | 3.73 | 4.78 | 7.47 | |||
| 20 | 3/4 | 26.7 | 1.65 | 2.11 | 2.87 | 2.87 | 2.87 | 3.91 | 3.91 | 3.91 | 5.56 | 7.82 | |||
| 25 | 1 | 33.4 | 1.65 | 2.77 | 3.38 | 3.38 | 3.38 | 4.55 | 4.55 | 4.55 | 6.35 | 9.09 | |||
| 32 | 1 1/4 | 42.2 | 1.65 | 2.77 | 3.56 | 3.56 | 3.56 | 4.85 | 4.85 | 4.85 | 6.35 | 9.7 | |||
| 40 | 1 1/2 | 48.3 | 1.65 | 2.77 | 3.68 | 3.68 | 3.68 | 5.08 | 5.08 | 5.08 | 7.14 | 10.15 | |||
| 50 | 2 | 60.3 | 1.65 | 2.77 | 3.91 | 3.91 | 3.91 | 5.54 | 5.54 | 5.54 | 8.74 | 11.07 | |||
| 65 | 2 1/2 | 76 | 2.11 | 3.05 | 5.16 | 5.16 | 5.16 | 7.01 | 7.01 | 7.01 | 9.53 | 14.02 | |||
| 80 | 3 | 88.9 | 2.11 | 3.05 | 5.49 | 5.49 | 5.49 | 7.62 | 7.62 | 7.62 | 11.13 | 15.24 | |||
| 90 | 3 1/2 | 101.6 | 2.11 | 3.05 | 5.74 | 5.74 | 5.74 | 8.08 | 8.08 | 8.08 | |||||
| 100 | 4 | 114.3 | 2.11 | 3.05 | 6.02 | 6.02 | 6.02 | 8.56 | 8.56 | 8.56 | 11.13 | 13.49 | 17.12 | ||
| 125 | 5 | 141.3 | 2.77 | 3.4 | 6.55 | 6.55 | 6.55 | 9.53 | 9.53 | 9.53 | 12.7 | 15.88 | 19.05 | ||
| 150 | 6 | 168.3 | 2.77 | 3.4 | 7.11 | 7.11 | 7.11 | 10.97 | 10.97 | 10.97 | 14.27 | 18.26 | 21.95 | ||
| 200 | 8 | 219.1 | 2.77 | 3.76 | 8.18 | 8.18 | 8.18 | 10.31 | 12.7 | 12.7 | 12.7 | 18.26 | 20.62 | 23.01 | 22.23 |
| 250 | 10 | 273 | 3.4 | 4.19 | 9.27 | 9.27 | 9.27 | 12.7 | 12.7 | 12.7 | 15.09 | 21.44 | 25.4 | 28.58 | 25.4 |
| 300 | 12 | 323.8 | 3.96 | 4.57 | 9.53 | 9.53 | 10.31 | 14.27 | 12.7 | 12.7 | 17.48 | 25.4 | 28.58 | 33.32 | 25.4 |
| 350 | 14 | 355.6 | 3.96 | 4.78 | 9.53 | 11.13 | 15.09 | 12.7 | 19.05 | 27.79 | 31.75 | 35.71 | |||
| 400 | 16 | 406.4 | 4.19 | 4.78 | 9.53 | 12.7 | 16.66 | 12.7 | 21.44 | 30.96 | 36.53 | 40.49 | |||
| 450 | 18 | 457 | 4.19 | 4.78 | 9.53 | 14.27 | 19.05 | 12.7 | 23.83 | 34.93 | 39.67 | 45.24 | |||
| 500 | 20 | 508 | 4.78 | 5.54 | 9.53 | 15.09 | 20.62 | 12.7 | 26.19 | 38.1 | 44.45 | 50.01 | |||
| 550 | 22 | 559 | 4.78 | 5.54 | 9.53 | 22.23 | 12.7 | 28.58 | 41.28 | 47.63 | 53.98 | ||||
| 600 | 24 | 610 | 5.54 | 6.35 | 9.53 | 17.48 | 24.61 | 12.7 | 30.96 | 46.02 | 52.37 | 59.54 | |||
| 650 | 26 | 660 | 9.53 | 12.7 | |||||||||||
| 700 | 28 | 711 | 9.53 | 12.7 | |||||||||||
| 750 | 30 | 762 | 6.35 | 7.92 | 9.53 | 12.7 | |||||||||
| 800 | 32 | 813 | 9.53 | 17.48 | 12.7 | ||||||||||
Conforms to ANSI B36.19 and ANSI B36.10 standards
FAQ:
Q: Are you a manufacturer or merely a trader?
A: We are group of companies and owned manufacturer bases and trading company. We specialized in special steel which include alloy structural steel and carbon steel and stainless steel, etc. All material are with high quality and competitive price.
Q: How do you guarantee the quality of your product?
A: Firstly, we can provide the certificates from the third party, such as TUV, CE, if you need. Secondly, we have a complete set of inspection system and every process is checked by QC. Quality is the lifeline of enterprise survival.
Q: Delivery time?
A: We have ready stock for most of material grades in our warehouse. If the material don't have stock, the delivery lead time is about 5-30 days after receiving your prepayment or firm order.
Q: What is the payment term?
A: T/T or L/C.
Q: Can you provide a sample for our testing before confirm the order?
A: Yes. We can provide sample to you for approval before you place an order to us. Free sample is available if we have stock.
Q: Can we visit your company and factory?
A: Yes, warmly welcome! We can book the hotel for you before you come to China and arrange our driver to our airport to pick you up when you come.
