Product Details:
Payment & Shipping Terms:
|
Material: | 1.4301 1.4306 1.4435 1.4436 1.4401 | Standard: | DIN 17456; DIN 17458 DIN17006 DIN17007 |
---|---|---|---|
Shape: | Round | Technique: | Cold Draw |
Application: | Metallurgy | Package: | Woven Packing |
High Light: | 304 stainless steel seamless tubing,ss seamless pipe |
Cold Draw Stainless Steel Seamless Pipe 1.4301 1.4306 1.4435 1.4436 1.4401
zheheng steel is approved by zheiang government to carry out import and export trading company.Is located in the beautiful coast of the wenzhou, distribution and high quality steel products for export.Operating varieties include all kinds of stainless steel seamless pipe, plate, wire rod, pipe fittings and other series products.
For more than sixty years, architects have used stainless steel seamless pipe to build cost-effective permanent buildings. Many existing buildings fully illustrate the correctness of this choice. Some are very entertaining, such as the Chrysler Building in New York City. But in many other applications, the role of stainless steel seamless pipe is not so compelling, but it plays an important role in the aesthetics and performance of buildings. For example, since stainless steel is more wear resistant and indentation resistant than other metal materials of the same thickness, it is the material of choice for designers when constructing sidewalks in places with large population movements.
1.STANDRED: DIN 17456; DIN 17458 DIN17006 DIN17007
2.Manufacture:
Cold Drawn Steel Pipe
Hot Rolled Steel Pipe
Hot Expanded Steel Pipe
3.Steel Grade:
X5CrNi18-10 X2CrNi19-11 X5CrNiMo17-12-2 X5CrNiMo17-13-3 X2CrNiMo18-14-3 1.4301 1.4306 1.4435 1.4436 1.4401
4.Size:
Outer Diameter: 1/8"-36"(10.3mm-914.4mm)
Wall Thichness: 1.2mm-80mm
Length: Random Length, SRL, DRL(4-14M)
5.End: Beveled or Plain End, Free Caped.
6.Surface: Annealing, Pickling, Polishing, Bright, Hair Line.
Packing: Plastic plugs in both ends, Hexagonal bundles of max. 2,000kg with several steel strips, Two tags on each bundle, Wrapped in waterproof paper, PVC sleeve, and sackcloth with several steel strips, Plastic caps.
1. Package | Various packages depends on wall thickness & Length ( See below picture ) | ||
a) Hexagonal bundles | |||
b) Iron boxes | |||
c) Good quality plywood boxes | |||
d) Good quality wooden boxes | |||
e) Customized package | |||
2. Application: | High-pressure steam boiler, Heat exchanger, liquid-transportation, Condensator, electric power, auto parts and chemical industry. Power plant. |
Chemical Composition about stainless steel pipe | |||||||
Grade | C ≤ | Si ≤ | Mn ≤ | P ≤ | S ≤ | Ni ≤ | Cr ≤ |
201 | 0.12 | 0.75 | 7.00 | 0.045 | 0.045 | 1.00-1.28 | 13.70-15.70 |
202 | 0.15 | 1 | 2.25 | 0.045 | 0.045 | 4.07-4.17 | 14.00-16.00 |
304 | 0.08 | 0.75 | 2 | 0.045 | 0.03 | 8.00-11.00 | 18.00-20.00 |
304L | 0.035 | 0.75 | 2 | 0.045 | 0.03 | 8.00-13.00 | 18.00-20.00 |
309 | 0.15 | 0.75 | 2 | 0.045 | 0.03 | 12.00-15.00 | 22.00-24.00 |
310S | 0.08 | 1.5 | 2 | 0.045 | 0.03 | 19.00-22.00 | 24.00-26.00 |
316 | 0.08 | 1 | 2 | 0.045 | 0.03 | 10.00-14.00 | 16.00-18.00 |
316L | 0.035 | 0.75 | 2 | 0.045 | 0.03 | 10.00-15.00 | 16.00-18.00 |
321 | 0.04-0.10 | 0.75 | 2 | 0.045 | 0.03 | 9.00-13.00 | 17.00-20.00 |
405 | 0.08 | 0.75 | 1 | 0.045 | 0.03 | 0.06 | 11.5-13.5 |
409 | 0.089 | 1 | 1 | 0.045 | 0.05 | 0.06 | 10.50-11.75 |
410 | 0.15 | 0.75 | 1 | 0.045 | 0.03 | 0.06 | 11.5-13.5 |
420 | 0.16-0.25 | 1 | 1 | 0.04 | 0.03 | 0.06 | 12.00-14.00 |
430 | 0.12 | 0.75 | 1 | 0.045 | 0.03 | 0.06 | 16.00-18.00 |
904L | 0.02 | 1 | 2 | 0.045 | 0.03 | 23.00-28.00 | 19.00-23.00 |

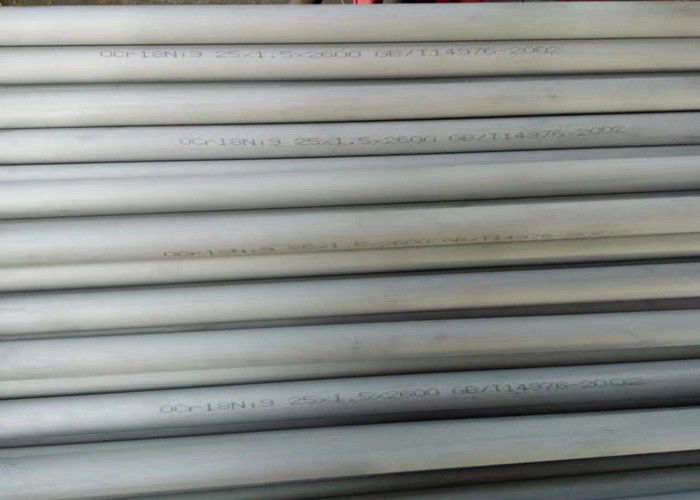

Our products show:
