Product Details
Place of Origin: CHINA
Brand Name: zheheng
Certification: iso9001
Model Number: 168mm
Document: Product Brochure PDF
Payment & Shipping Terms
Minimum Order Quantity: Negotiable
Price: Negotiable
Packaging Details: In bundles with waterproof material,or wooden crate packing
Delivery Time: 30 DAYS
Payment Terms: L/C, T/T, D/A, D/P
Supply Ability: 50TONS/30DAYS
Material: |
TP304/304L,TP316/316L,TP347/347H, |
Standard: |
A312 |
Shape: |
Round Shape,square |
Technique: |
Seamless |
Application: |
Metallurgy |
Package: |
Woven Packing |
Material: |
TP304/304L,TP316/316L,TP347/347H, |
Standard: |
A312 |
Shape: |
Round Shape,square |
Technique: |
Seamless |
Application: |
Metallurgy |
Package: |
Woven Packing |

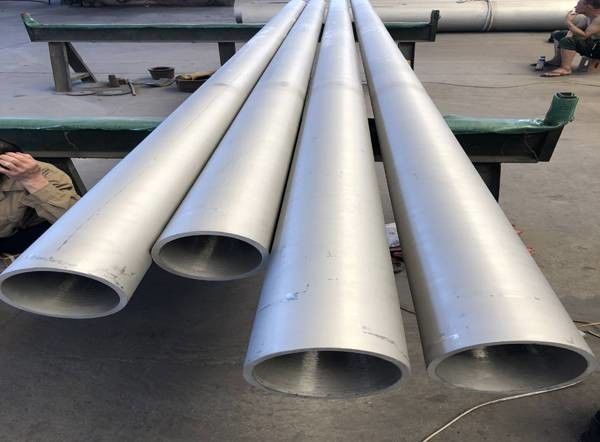

Stainless Steel Seamless Pipe sch10 china TP304/304L,TP316/316L,TP347/347H, TP321/321H
zheheng steel as one of china best quality TP304/304L,TP316/316L,TP347/347H, TP321/321H stainless steel seamless pipe is a hollow long strip of round steel, which is widely used in petroleum, chemical, medical, food, light industry, mechanical instrumentation and other industrial conveying pipelines and mechanical structural components.
Products Description :
Other terms :
1.A999/A999M: Each pipe shall be subjected to the nondestructive electric test or the hydrostatic test, the pipe of test to be used shall be at the option of the mfg, unless otherwise specified in the PO.
2. The Pipe lengths : Unless otherwise agreed upon, all size from NPS 1/8" TO AND INCLUDING nps 8 are available in a length up to 24ft with the permitted range of 15 to 24 ft. Short length are acceptable and the number and min, length shall be agreed upon between mfg and purchaser.
3. The finished pipe shall be reasonably straight and shall have workmanlike finish, Removal of imperfections by grinding is permitted, provided the W.T are not decreased to the less than the permitted in Section 9 of Specification A999/A999M
4. Butt Weld End: According to ANSI B 16.25
5. Pipe Marking: Specified in A999/999M, include "Logo+Standard+SIZE+Heat No.+Lot No.+H.T/E.T/U.T"
6. Packing: Each Pipe end is protected by Plastic cap. Then packed by Anti-rust steel strip, The outside of the bundle is plastic woven bag, or Plastic film.
7. Packing Mark: SIZE + STEEL GRADE+ QTY OF PIECE/WEIGHT/METRE.
8.MTC: BWSS Official Original MTC paper will be supplied for each order.
In addition, when the bending and torsional strength are the same, the weight is light, so it is also widely used in the manufacture of mechanical parts and engineering structures. Also used to produce a variety of conventional weapons, barrels, shells and so on. Steels that are open at both ends and have a hollow section, and whose length is larger than the circumference of the section, can be called steel pipes. When the length is small compared to the perimeter of the section, it can be called a pipe section or a tubular fitting, which are all in the category of pipe products.
| Dimensions for ASME/ANSI Standards | Unit:mm | ||||||||||||
| B16.9 B16.28 B36.10 | |||||||||||||
| Nominal pipe Size(NPS) | Outside Diameter | Nominal Wall Thickness | |||||||||||
| Sch5s | SCH10S | Sch20 | Sch30 | Sch40 | STD | Sch80 | XS | Sch160 | XXS | ||||
| 32 | 1.1/4 | 42.2 | 1.66 | 1.65 | 2.77 | - | 2.97 | 3.56 | 3.56 | 4.85 | 4.85 | 6.35 | 9.70 |
| 40 | 1.1/2 | 48.3 | 1.90 | 1.65 | 2.77 | - | 3.18 | 3.68 | 3.68 | 5.08 | 5.08 | 7.14 | 10.15 |
| 50 | 2 | 60.3 | 2.38 | 1.65 | 2.77 | - | 3.18 | 3.91 | 3.91 | 5.54 | 5.54 | 8.74 | 11.07 |
| 65 | 2.1/2 | 73.0 | 2.88 | 2.11 | 3.05 | - | 4.78 | 5.16 | 5.16 | 7.01 | 7.01 | 9.53 | 14.02 |
