Product Details:
Payment & Shipping Terms:
|
| Material: | TP347H/1.4912 | Standard: | ASTM A312 |
|---|---|---|---|
| Type: | Seamless | Technique: | Cold Drawing |
| Steel Grade: | 347H | Grade: | 1.4912 |
| High Light: | 304 stainless steel seamless tubing,ss seamless pipe |
||
stainless steel ASTM A312 TP347H/1.4912 seamless pipe / stainless steel seamless pipe
zheheng steel is one of exporter ,manufacturer ,supplier of TP347H stainless steel pipes,1.4912 stainless steel seamless industrial pipe /347H seamless stainless steel pipe,ss astm a312 stainless steel pipe,astm ss 347 seamless steel pipe ,We can also supply stainless steel capillary tubes, which are widely used.Petrol, Oil and Nature gas, Chemical Industry,Boiler,Heat Exchange Architecture,Machine Equipment,City Decoration,Bridge, Food and Medical Industry,Electric Components,Shipping Manufacture,
| CHEMICAL COMPOSITION (%) | |||||||
| C | Si | Mn | P | S | Cr | Ni | Nb |
| 0.04-0.10 | ≤1.00 | ≤2.00 | ≤0.045 | ≤0.030 | 17-19 | 9-12 | 8*C-1.1 |
| MECHANICAL PROPERTIES ≥ | |||
| YIELD POINT (Mpa) |
TENSILE STRENGTH (Mpa) |
ELONGATION (%) |
DENSITY (g/cm³) |
| 205 | 515 | 35 | 7.98 |
etc
2.Description:
| Steel Grade | 200 (Ni : 0.8%), 201B (Ni : 3%), 201H (Ni : 5%) |
| 301 (Ni : 6%), 304, TP304, TP304L/304L, 321, TP321, 316, TP316L, 316L, 316Ti | |
| 317, 317L, 309S, 310S(2520), 347, Duplex 2205, Duplex 2207, etc. | |
| Standards | ASTM / ASME, GB, DIN, JIS, T14975, etc. |
| Specification | O.D: 1/4" - 32" (inch) |
| W.T: SCH5S, SCH10S,SCH40S,SCH80S,SCH160S,etc. | |
| Or non-regular size to be tailored as required. | |
| Application | Heat exchanger,Liquid delivery,Structure,etc. |
| Packing | 1.with plastic cap to protect both ends |
| 2.plastic bag wrapped outside the pipe | |
| 3.bundles to be covered by polythene & strapped securely . | |
| 4.if require ,then pack into wooden box. | |
| Certificate | ISO 9001:2008 |
| Delivery time | 30-60 days depend on Quantity |
| Payment Term | T/T, Irrevocable L/C at sight |
| Trade Term | FOB , CFR , CIF |
3. Material
3.1Chemical Composition:
| Grade | C | Si | Mn | P | S | Ni | Cr | Mo | N |
| 305 | ≤012 | ≤1.00 | ≤2.00 | ≤0.045 | ≤0.030 | 10.5-13.0 | 17.0-19.0 | ||
| 316(0Cr17Ni12Mo2) | ≤0.08 | ≤0.07 | ≤2.0 | ≤0.04 | ≤0.03 | 11.0-14.0 | 16.0-18.0 | 2.0-3.0 | — |
| 316L(0Cr17Ni14Mo2) | ≤0.03 | ≤0.07 | ≤2.0 | ≤0.04 | ≤0.03 | 11.0-14.0 | 16.0-18.0 | 2.0-3.0 | — |
| 309s | ≤0.08 | ≤1.00 | ≤2.0 | ≤0.045 | ≤0.03 | 12.00-15.00 | 22.00-24.00 | ||
| 310s | ≤0.08 | ≤1.50 | ≤2.0 | ≤0.045 | ≤0.03 | 19.00-22.00 | 24.00-26.00 | ||
| 317l | ≤0.03 | ≤1.00 | ≤2.0 | ≤0.045 | ≤0.03 | 11.0-15.0 | 18.0-20.0 | 3.0-4.0 | |
| 321 | ≤0.08 | ≤1.0 | ≤2.0 | ≤0.04 | ≤0.03 | 9.0-12.0 | 17.0-19.0 | Ti≥5xC | |
| 409 | ≤0.08 | ≤1.0 | ≤1.0 | ≤0.04 | ≤0.03 | ≤0.5 | 10.5-11.7 | Ti6xC%≤0.70 | |
| 409L | ≤0.03 | ≤1.0 | ≤1.0 | ≤0.04 | ≤0.03 | 0.5 | 10.5-11.7 | Ti8xC%≤0.70 | |
| 430 | ≤0.12 | ≤1.0 | ≤1.0 | ≤0.04 | ≤0.03 | 16.0-18.0 | |||
| SS329J4L | ≤0.03 | ≤1.0 | ≤1.5 | ≤0.04 | ≤0.03 | 5.50-7.50 | 24.00-26.00 | 2.50-3.50 |
3.2 Mechanical Property:
| ASTM | Tensile Strength (Mpa) | Yield Strength (Mpa) | Elogation (%) | Hardness (HRB) |
| 305 | ≥480 | ≥175 | ≥40 | ≤200 |
| 309S | ≥520 | ≥205 | ≥40 | ≤200 |
| 316 | ≥515 | ≥205 | ≥40 | ≤95 |
| 316L | ≥485 | ≥170 | ≥40 | ≤95 |
| 317L | ≥480 | ≥175 | ≥40 | ≤200 |
| 321 | ≥515 | ≥205 | ≥40 | ≤95 |
| 409 | ≥380 | ≥205 | ≥20 | ≤80 |
| 409L | ≥350 | ≥185 | ≥22 | ≤80 |
| 430 | ≥450 | ≥205 | ≥22 | ≤80 |
| SS329J4L | ≥620 | ≥450 | ≥18 |
≤320
|
You can select different sizes stainless steel products with high quality from a reliable manufacturer with reasonable price. We can supply stainless tube/pipe, stainless steel sheet&plate, stainless steel bar, stainless steel wire, stainless steel coil etc.
| Item | Stainless steel tube/tubes/tubing Stainless steel pipe/pipes |
| standards | ASTM, ASME,EN, JIS, DIN,GB/T etc |
|
Size |
Outer Diameter:1mm-10mm; 10mm-250mm |
| Wall Thickness: 0.01mm-4mm; 1mm-20mm | |
| Length: 10mm -6000mm | |
| Surface treatment | Polishing, Mirro surface, Bright, Pickling |
| Type | Welded, ERW, seamless |
| Manufacturing method | Hot rolled, Extrusion, Cold drawn, Cold rolled |
| Shape | Round, Square, Irregular |

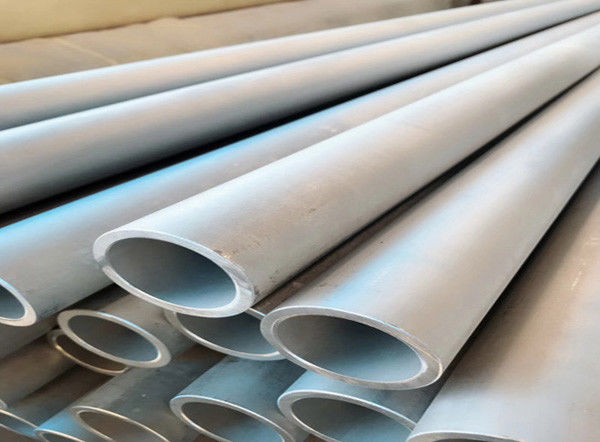

our products photos:
