Product Details:
Payment & Shipping Terms:
|
| Certificates: | ABS, DNV, GL, BV, PED 97/23/EC | Standard: | ASTM, AISI, A312 |
|---|---|---|---|
| Type: | Seamless | Technique: | Cold Roll |
| Name: | 904L Seamless Stainless Steel Pipe | Material: | 904L / N08904 / 1.4539 / X1NICRMOCU25-20-5 |
| High Light: | seamless pipes and tubes,ss seamless pipe |
||
904L N08904 / 1.4539 Stainless Steel Seamless Pipe For Chemical Properties
We are export the prime Exporter of Stainless Steel 904L / N08904 / 1.4539 / X1NICRMOCU25-20-5 Cold Roll Seamless Stainless Steel Pipe ,Grade 904L stainless steel is a non-stabilized austenitic stainless
steel with low carbon content. This high alloy stainless steel is added
with copper to improve its resistance to strong reducing acids, such
as sulphuric acid. The steel is also resistant to stress corrosion
cracking and crevice corrosion. Grade 904L is non-magnetic, and
offers excellent formability, toughness and weldability.
AL-904L is a low-carbon, high-alloy austenitic stainless steel designed for corrosive environments. It has better corrosion resistance than 316L and 317L, while at the same time taking into account price and performance. Very cost-effective. Due to the addition of 1.5% copper, it has excellent corrosion resistance for reducing acids such as sulfuric acid and phosphoric acid.
weight calculation:
Weight (kg) = length (m) * width (m) * thickness (mm) * density value
Stainless steel specific gravity: ● chrome stainless steel takes 7.75 tons / M3 ● chrome nickel stainless steel takes 7.93 tons / M3 ● iron takes 7.87 tons / M3
Stainless steel plate theoretical weight calculation formula
Steel theoretical weight length (mm) × width (mm) × thickness (mm) × density value = weight (kg)
Density
| Steel Grade | Density(g/cm3) |
| 304,304L,305,321 201,202,301,302 | 7.93 |
| 316,316L,347 309S,310S | 7.98 |
| 405,410,420 | 7.75 |
| 409,430,434 | 7.7 |
product description in details as below:
| Material: | 904L N08904 / 1.4539 Stainless Steel Seamless Pipe For Chemical Properties |
| Standard: | GB, AISI, ASTM, ASME, EN, BS, DIN, JIS |
| Size: | ANSI /ASME size is under,other standard of size is for ready choice,O.D.:0.23''to 48''(5.8-1219mm)W.T.:0.04''to 2''(1.0-50.8mm) |
| Length: | Max.18 Meter,NPS 1/8''-48'' Schedule:5/5S,10/10S,20/20S,40/40S,80/80S,120/120S,160/160S according to ANSI B36.19/36.10 |
| Surface: | Satin Finish(180#.240#.320#).,Bright Finish(400#,600#,mirror),Mill Finish(2B),Hairline-Finish(HL/Brushed),Ti-gold, Glossy matt,dull and so on. |
| Application: | Decoration, construction and upholstery, etc |
| Package: | Each tube in a plastic bag with size label outside and pack in small bundles or according to customer request |
| Lead Time: | 7-10days for one FCL Or according to order list detail |
US,CN,EU 317L / 022Cr19Ni13 Mo3 / 1.4438 / 347 / 06Cr18Ni11Nb / 1.4550 / 347H / 07Cr18Ni11Nb 348 / 348H / 904L / 06Cr25Ni20 / 310S
SEAMLESS STAINLESS STEEL PIPE CHEMICAL COMPARISON TABLE
| STEEL/GRADE | C | Mn | P | S | Si | Ni | Cr | Mo | Ti | N | OTHER |
| 347 | S34700 | 0.08 | 2 | 0.045 | 0.03 | 1 | 9~12 | 17~19 | Nb+Ta=10C~1.1 | |||
| 06Cr18Ni11Nb | S34778 | 0.08 | 2 | 0.035 | 0.03 | 1 | 9~12 | 17~19 | Nb=10C~1.1 | |||
| 1.4550 | 1.4550 | 0.08 | 2 | 0.045 | 0.015 | 1 | 9~12 | 17~19 | Nb=10C~1.0 | |||
| 347H | S34709 | 0.04~0.1 | 2 | 0.045 | 0.03 | 1 | 9~12 | 17~19 | Nb+Ta=8C~1.1 | |||
| 07Cr18Ni11Nb | S34779 | 0.04~0.1 | 2 | 0.035 | 0.03 | 1 | 9~12 | 17~19 | Nb=10C~1.1 | |||
| 348 | S34800 | 0.08 | 2 | 0.045 | 0.03 | 1 | 9~12 | 17~19 | Nb+Ta=10C~1.1 | |||
| 348H | S34809 | 0.04~0.1 | 2 | 0.045 | 0.03 | 1 | 9~12 | 17~19 | Nb+Ta=8C~1.1 | |||
| 904L | N08904 | 0.02 | 2 | 0.04 | 0.03 | 1 | 19~23 | 23~28 | 4~5 | Cu=1~2 | ||
ZHEHENG STEEL has passed approved by ABS, DNV, GL, BV, PED 97/23/EC, AD2000-WO, GOST9941-81, CCS, TS, CNNC, ISO9001-2008, ISO 14001-2004 With good quality and competitive price, we warm a good reputation in domestic and international markets. We hope to build a good and long relationship with customers from home and abroad.

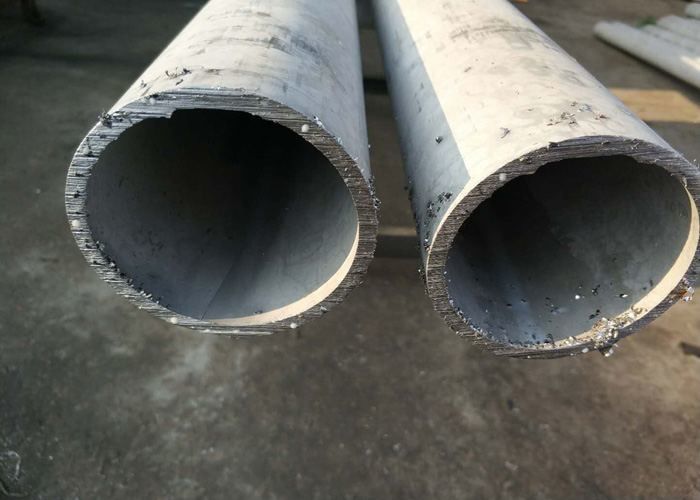

product show:
