Product Details
Place of Origin: CHINA
Brand Name: zheheng
Certification: ISO9001 PED
Model Number: 3"*sch40s
Payment & Shipping Terms
Minimum Order Quantity: Negotiable
Price: Negotiable
Packaging Details: In bundles with waterproof material,or wooden crate packing
Delivery Time: 30 DAYS
Payment Terms: L/C, T/T, D/A, D/P
Supply Ability: 50TONS/30DAYS
Certificates: |
ABS, DNV, GL, BV, PED 97/23/EC |
Standard: |
ASTM, AISI, DIN, EN, GB, JIS |
Type: |
Seamless |
Technique: |
Cold Roll |
Name: |
TP347 Seamless Stainless Steel Pipe |
Material: |
TP347 / S34700 / 1.4550 / X6CRNINB18-10 |
Certificates: |
ABS, DNV, GL, BV, PED 97/23/EC |
Standard: |
ASTM, AISI, DIN, EN, GB, JIS |
Type: |
Seamless |
Technique: |
Cold Roll |
Name: |
TP347 Seamless Stainless Steel Pipe |
Material: |
TP347 / S34700 / 1.4550 / X6CRNINB18-10 |
TP317L / 1.4438 / X2CRNIMO18-15-4 Cold Roll Stainless Steel Seamless Pipe Chemical Properties
Standard Specification for Seamless Ferritic and Austenitic Alloy-Steel Boiler,Superheater, and Heat-Exchanger Tubes
We are export the prime Exporter of Stainless Steel TP347 / S34700 / 1.4550 / X6CRNINB18-10 Seamless stainless steel pipe that are being sourced by using best quality of raw material and makes sure to provide durability of largest quality of industry standard products. Made by using bigger quality of steel, these Stainless Steel TP347 / S34700 / 1.4550 / X6CRNINB18-10 Pipes Wholesaler In china.
production description:
| Material: | TP317L / 1.4438 / X2CRNIMO18-15-4 Cold Roll Stainless Steel Seamless Pipe Chemical Properties |
| Standard: | GB, AISI, ASTM, ASME, EN, BS, DIN, JIS |
| Size: | ANSI /ASME size is under,other standard of size is for ready choice,O.D.:0.23''to 48''(5.8-1219mm)W.T.:0.04''to 2''(1.0-50.8mm) |
| Length: | Max.18 Meter,NPS 1/8''-48'' Schedule:5/5S,10/10S,20/20S,40/40S,80/80S,120/120S,160/160S according to ANSI B36.19/36.10 |
US,CN,EU 317L / 022Cr19Ni13 Mo3 / 1.4438 / 347 / 06Cr18Ni11Nb / 1.4550 / 347H / 07Cr18Ni11Nb 348 / 348H / 904L / 06Cr25Ni20 / 310S
SEAMLESS STAINLESS STEEL PIPE CHEMICAL COMPARISON TABLE
| STEEL/GRADE | C | Mn | P | S | Si | Ni | Cr | Mo | Ti | N | OTHER |
| 317L | S31703 | 0.03 | 2 | 0.045 | 0.03 | 1 | 11~15 | 18~20 | 3~4 | |||
| 022Cr19Ni13 Mo3 | S31703 | 0.03 | 2 | 0.035 | 0.03 | 1 | 11~15 | 18~20 | 3~4 | |||
| 1.4438 | 1.4438 | 0.03 | 2 | 0.040 | 0.015 | 1 | 13~16 | 17.5~19.5 | 3~4 | |||
| 347 | S34700 | 0.08 | 2 | 0.045 | 0.03 | 1 | 9~12 | 17~19 | Nb+Ta=10C~1.1 | |||
| 06Cr18Ni11Nb | S34778 | 0.08 | 2 | 0.035 | 0.03 | 1 | 9~12 | 17~19 | Nb=10C~1.1 | |||
| 1.4550 | 1.4550 | 0.08 | 2 | 0.045 | 0.015 | 1 | 9~12 | 17~19 | Nb=10C~1.0 | |||
| 347H | S34709 | 0.04~0.1 | 2 | 0.045 | 0.03 | 1 | 9~12 | 17~19 | Nb+Ta=8C~1.1 | |||
The tubing sizes and thicknesses usually furnished to this specification are
1 ⁄ 8 in. [3.2 mm] in inside diameter to 5 in.[127 mm] in outside diameter and 0.015 to 0.500 in. [0.4 to 12.7 mm], inclusive, in minimum wall thickness or, if specified
in the order, average wall thickness. Tubing having other diameters may be furnished, provided such tubes comply with all other requirements of this specification.
This specification 2 covers seamless ferritic and austenitic steel boiler, superheater, and heat-exchanger tubes, designated Grades T5, TP304, etc.
Grades containing the letter, H, in their designation,
have requirements different from those of similar grades not containing the letter, H. These different requirements provide higher creep-rupture strength than normally achievable in similar grades without these different requirements.

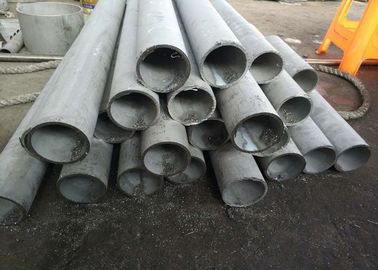

product show:
