Product Details
Place of Origin: CHINA
Brand Name: zheheng
Certification: ISO9001 PED
Model Number: 3"*sch40s
Document: Product Brochure PDF
Payment & Shipping Terms
Minimum Order Quantity: Negotiable
Price: Negotiable
Packaging Details: In bundles with waterproof material,or wooden crate packing
Delivery Time: 30 DAYS
Payment Terms: L/C, T/T, D/A, D/P
Supply Ability: 50TONS/30DAYS
Certificates: |
ABS, DNV, GL, BV, PED 97/23/EC |
Standard: |
ASTM, AISI, DIN, EN, GB, JIS |
Type: |
Seamless |
Technique: |
Cold Roll |
Name: |
TP310S Seamless Stainless Steel Pipe |
Material: |
TP310S / S31008 / 1.4845 / X8CRNI25-21 |
Certificates: |
ABS, DNV, GL, BV, PED 97/23/EC |
Standard: |
ASTM, AISI, DIN, EN, GB, JIS |
Type: |
Seamless |
Technique: |
Cold Roll |
Name: |
TP310S Seamless Stainless Steel Pipe |
Material: |
TP310S / S31008 / 1.4845 / X8CRNI25-21 |
TP310S / S31008 / 1.4845 / X8CRNI25-21 Cold Roll Stainless Steel Seamless Pipe Chemical Properties
We supply 317L / 022Cr19Ni13 Mo3 / 1.4438 / 347 / 06Cr18Ni11Nb / 1.4550 / 347H / 07Cr18Ni11Nb 348 / 348H / 904L / 06Cr25Ni20 / 310S
SEAMLESS STAINLESS STEEL PIPE CASTM A312 TP321 Stainless Steel Seamless Pipes & Tubes to Oil & Gas, Refineries, Fertilizers, Heat-Exchangers, Paper & Pulp, Pharmaceuticals, Chemicals, Water Treatment, Dairy, Sugar & Food Processing, Construction, Mining, Shipbuilding, Offshore, Defence, Ports, Railway, Nuclear Power, Power Plant, Cement, Government Org., Engineering Co., Oil Mills, and other industrial projects.
General Requirements
TP310S / S31008 / 1.4845 / X8CRNI25-21 Cold Roll Stainless Steel Seamless Pipe furnished to this specification shall conform to the requirements of Specification A1016/A1016M, including any supplementary requirements that are indicated in the purchase order. Failure to comply with the general requirements of Specification A1016/A1016M constitutes nonconformance with this specification. In case of conflict between the
requirements of this specification and Specification A1016/A1016M, this specification shall prevail.
product description for TP310S seamless stainless steel pipe
| Material: | TP310S / S31008 / 1.4845 / X8CRNI25-21 Cold Roll Stainless Steel Seamless Pipe Chemical Properties |
| Standard: | GB, AISI, ASTM, ASME, EN, BS, DIN, JIS |
| Size: | ANSI /ASME size is under,other standard of size is for ready choice,O.D.:0.23''to 48''(5.8-1219mm)W.T.:0.04''to 2''(1.0-50.8mm) |
| Length: | Max.18 Meter,NPS 1/8''-48'' Schedule:5/5S,10/10S,20/20S,40/40S,80/80S,120/120S,160/160S according to ANSI B36.19/36.10 |
| Surface: | Satin Finish(180#.240#.320#).,Bright Finish(400#,600#,mirror),Mill Finish(2B),Hairline-Finish(HL/Brushed),Ti-gold, Glossy matt,dull and so on. |
| Application: | Decoration, construction and upholstery, etc |
| Package: | Each tube in a plastic bag with size label outside and pack in small bundles or according to customer request |
US,CN,EU 317L / 022Cr19Ni13 Mo3 / 1.4438 / 347 / 06Cr18Ni11Nb / 1.4550 / 347H / 07Cr18Ni11Nb 348 / 348H / 904L / 06Cr25Ni20 / 310S
OTHER SEAMLESS STAINLESS STEEL PIPE CHEMICAL COMPARISON TABLE
| STEEL/GRADE | C | Mn | P | S | Si | Ni | Cr | Mo | Ti | N | OTHER |
| 317L | S31703 | 0.03 | 2 | 0.045 | 0.03 | 1 | 11~15 | 18~20 | 3~4 | |||
| 022Cr19Ni13 Mo3 | S31703 | 0.03 | 2 | 0.035 | 0.03 | 1 | 11~15 | 18~20 | 3~4 | |||
| 1.4438 | 1.4438 | 0.03 | 2 | 0.040 | 0.015 | 1 | 13~16 | 17.5~19.5 | 3~4 | |||
| 347 | S34700 | 0.08 | 2 | 0.045 | 0.03 | 1 | 9~12 | 17~19 | Nb+Ta=10C~1.1 | |||
| 06Cr18Ni11Nb | S34778 | 0.08 | 2 | 0.035 | 0.03 | 1 | 9~12 | 17~19 | Nb=10C~1.1 | |||
| 1.4550 | 1.4550 | 0.08 | 2 | 0.045 | 0.015 | 1 | 9~12 | 17~19 | Nb=10C~1.0 | |||
| 347H | S34709 | 0.04~0.1 | 2 | 0.045 | 0.03 | 1 | 9~12 | 17~19 | Nb+Ta=8C~1.1 | |||
| 07Cr18Ni11Nb | S34779 | 0.04~0.1 | 2 | 0.035 | 0.03 | 1 | 9~12 | 17~19 | Nb=10C~1.1 | |||
| 348 | S34800 | 0.08 | 2 | 0.045 | 0.03 | 1 | 9~12 | 17~19 | Nb+Ta=10C~1.1 | |||
| 348H | S34809 | 0.04~0.1 | 2 | 0.045 | 0.03 | 1 | 9~12 | 17~19 | Nb+Ta=8C~1.1 |

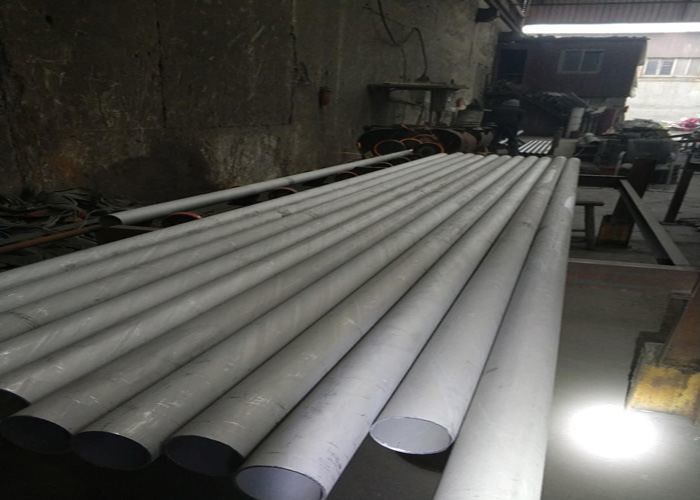

product show:
