Product Details:
Payment & Shipping Terms:
|
| Certificates: | PED | Standard: | ASTM, A249 |
|---|---|---|---|
| Type: | Seamless | Technique: | Cold Roll |
| Delivery: | FOB | Material: | TP316L, S31603 |
| High Light: | seamless pipes and tubes,ss seamless pipe |
||
TP316L / S31603 / 1.4404 / X2CRNIMO17-12-2 Cold Roll Stainless Steel Seamless Pipe tubes Chemical Properties
zheheng steel is one of manufacturer of TP316L seamless stainless steel pipes / S31603 ss stainless steel pipes / 1.4404 / X2CRNIMO17-12-2 Cold Roll Stainless Steel Seamless Pipe tubes
with high quality and competitive price
Description in below :
Seamless steel tubes for pressure purposes - Technical delivery conditions
Material TP316L, the chemical compositions in accordance to Table DT-3
ASME BPE
Chemical Composition in weights% C max. 0.035 Ni = 10.00 – 15.00
Cr = 16.00 – 18.00 P max. 0.040
Mn max. 2.00 Si max 0.75
Mo = 2.00 – 3.00 S = 0.005 – 0.017
further materials on request
Dimensions 1/4“ x 0.035 (6.35 x 0.89 mm) to 6” x 0.109 (152.40 x 2.77 mm)
Technical terms of delivery
Tubes According to ASTM A 269 / A 270, DIN EN 10217-7 / DIN EN 10216-5
Length 5900 - 6090 mm (max. 10% short lengths possible)
Fittings Tube components:
Prematerial according to ASTM A 269 / A 270, DIN EN 10217-7 / 10216-5
Machined components:
Prematerial according to ASTM A 479, DIN EN 10088-3, DIN 17440
Tolerances According to ASTM A 269 / A 270 (pharmaceutical tubes) or DIN EN ISO 1127 - D4/T3
Ends Tubes and fittings are prepared for orbital welding
Tolerances
Tubes According to ASTM A269 and A270, S2 and DIN EN ISO 1127/ D4/T3
Fittings According to ASME BPE,
| Material: | TP316L / S31603 / 1.4404 / X2CRNIMO17-12-2 Cold Roll Stainless Steel Seamless Pipe Chemical Properties |
| Standard: | GB, AISI, ASTM, ASME, EN, BS, DIN, JIS |
| Size: | ANSI /ASME size is under,other standard of size is for ready choice,O.D.:0.23''to 48''(5.8-1219mm)W.T.:0.04''to 2''(1.0-50.8mm) |
| Length: | Max.18 Meter,NPS 1/8''-48'' Schedule:5/5S,10/10S,20/20S,40/40S,80/80S,120/120S,160/160S according to ANSI B36.19/36.10 |
| Surface: | Satin Finish(180#.240#.320#).,Bright Finish(400#,600#,mirror),Mill Finish(2B),Hairline-Finish(HL/Brushed),Ti-gold, Glossy matt,dull and so on. |
| Application: | Decoration, construction and upholstery, etc |
| Package: | Each tube in a plastic bag with size label outside and pack in small bundles or according to customer request |
| Lead Time: | 7-10days for one FCL Or according to order list detail |
| Payment: | A: 100% T/T advance. ( For small order.) B: 30% T/T and balance against copy of documents. C: 30% T/T advance, balance L/C at sight D: 30% T/T , balance L/C usance E: 100% L/C usance. F: 100% L/C at sight. |
| Sample: | we could offer the sample for free charge but do not pay the cost of freight. |
Scope
This European Standard specifies the technical delivery conditions in two test categories for seamless tubes
of circular cross section, with specified elevated temperature properties, made of non-alloy and alloy steel.
This Part of EN 10216 may also be applied for tubes of non-circular cross section; necessary modification
should be agreed at the time of enquiry and order.

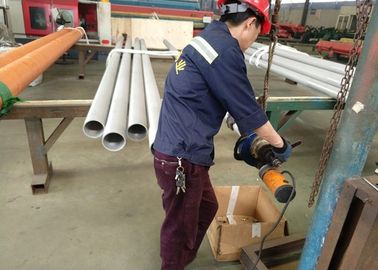

Product show:
