Product Details
Place of Origin: Wenzhou,China
Brand Name: Zheheng
Certification: ISO9001
Model Number: WPB Elbow
Document: Product Brochure PDF
Payment & Shipping Terms
Minimum Order Quantity: MOQ500kg
Packaging Details: In wooded cases or pallets,or as for clients requirement
Delivery Time: 7-15 working days after receiving payment
Payment Terms: L/C, D/P, T/T, Western Union
Supply Ability: 1000 Ton/Tons per Month
Thickness: |
SCH5S-SCH160 Or As Required |
Size: |
1/4" - 60" |
OD: |
6-2000mm |
Price Terms: |
FOB,CIF,EXW |
Standard: |
ANSI B16.9,EN10253-2,DIN2605,GOST17375-2001,JIS B2313,MSS SP 75,etc. |
Elbow: |
30° 45° 60° 90° 180°，etc |
Radius: |
LR/long Radius/R=1.5D,SR/Shoort Radius/R=1D |
End: |
Bevel End/BE/buttweld |
Surface: |
Nature Color,varnished,black Painting,anti-rust Oil Etc. |
Thickness: |
SCH5S-SCH160 Or As Required |
Size: |
1/4" - 60" |
OD: |
6-2000mm |
Price Terms: |
FOB,CIF,EXW |
Standard: |
ANSI B16.9,EN10253-2,DIN2605,GOST17375-2001,JIS B2313,MSS SP 75,etc. |
Elbow: |
30° 45° 60° 90° 180°，etc |
Radius: |
LR/long Radius/R=1.5D,SR/Shoort Radius/R=1D |
End: |
Bevel End/BE/buttweld |
Surface: |
Nature Color,varnished,black Painting,anti-rust Oil Etc. |

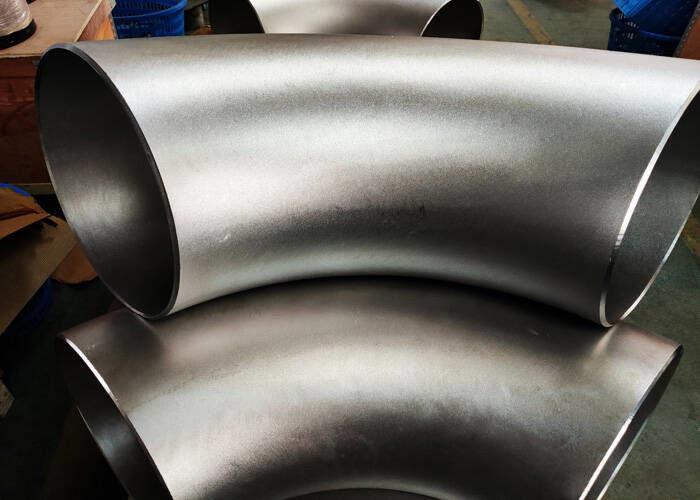

ASTM A234 WPB-S LR-SR Carton Steel Pipe Fittings 8 Inch,SCH 40,B16.9 Elbow
Characteristic
Steel elbow is used to be installed between two lengths of pipe or tube allowing a change of direction,usually these carton steel elbows distinguished by connection ends,The ends may be machined for butt welding,threaded or socketed,so the carton steel elbows are consist of butt weld,thread elbow socket elboe and other series.the material is selected according to the application use such as high temperature use,sanitary fitting,regular industrial use etc.
Usage
Petrochemical industry
Aviation and aerospace industry
Pharmaceutical industry
Gas exhaust
Power plant
Ship building
Water treatment
Chemical Composition
| Grade | C | Mn | P | S | Si | Cr | Mo | Ni | Cu | V | Nb |
| WPB | 0.3 | 0.29-1.06 | 0.05 | 0.058 | 0.1min | 0.4 | 0.15 | 0.4 | 0.4 | 0.08 | 0.02 |
Mechanical Properties
| WPB | WPC,WP11CL2 | WP11CL1 | |
| Tensile Requirements | 60-85 | 70-95 | 60-85 |
| Tensile Strength,min,ksi[MPa] | [415-585] | [485-655] | [415-585] |
| (0.2%offer or 0.5% extension-under-load) | 32 | 40 | 30 |
| Yield Strength,min,kai[Mpa] | [240] | [275] | [205] |
Product Testing
Coating Thk Test
Geometry inspection
Ultrasonic Inspection
Nondestructive Testing
Hydrostatic Testing
