Sch 80s Stainless Steel Pipe Fitting Concentric Reducer WP316l ASME B16.9

Name: Sch 80s Stainless Steel Pipe Fitting Concentric Reducer WP316l ASME B16.9
Brand: Wenzhou Zheheng Steel Industry Co.,Ltd
SKU: Reducer
Price: 3,750.00 USD
Availability: InStock

Product Details

Place of Origin: Wenzhou,China

Brand Name: Zheheng

Certification: ISO9001

Model Number: Reducer

Document: Product Brochure PDF

Payment & Shipping Terms

Minimum Order Quantity: More than 1 piece

Packaging Details: In wooded cases or pallets,or as for clients requirement

Delivery Time: 7-15 working days after receiving payment

Payment Terms: T/T, L/C, Western Union

Supply Ability: 10000 Piece/Pieces per Month

Get Best Price

Product Details

Product Description

Highlight:
                                                                                                                                                                                                                                                                                                                Stainless Steel Pipe Fitting Concentric Reducer, WP316l Stainless Steel Concentric Reducer, ASME B16.9 Stainless Concentric Reducer


Application:	Pharmacy,beer,food,dairy,brewing, Beverage	Size:	DN15-DN600
Standard:	ASTM A403, ASME B16.9	Product Name:	Concentric Reducer/Eccentric Reducer
Color:	Silver, As Customer Required	Connection:	Butt Welding
Delivery Term:	FOB,EXW	Test:	Direct-reading Spectrograph,machine

Application:	Pharmacy,beer,food,dairy,brewing, Beverage
Size:	DN15-DN600
Standard:	ASTM A403, ASME B16.9
Product Name:	Concentric Reducer/Eccentric Reducer
Color:	Silver, As Customer Required
Connection:	Butt Welding
Delivery Term:	FOB,EXW
Test:	Direct-reading Spectrograph,machine

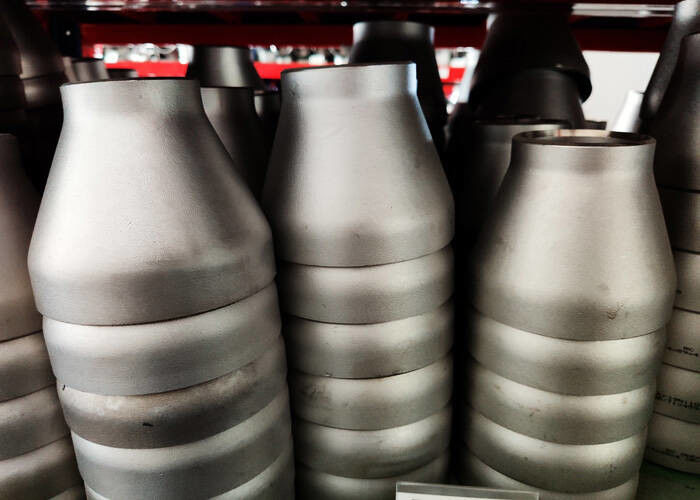

Sch 80s Stainless Steel Pipe Fitting Concentric Reducer WP316l ASME B16.9

Overview

Stainless Steel Pipe Fitting Concentric Reducer persist a full line of 304 & 316 stainless steel butt weld reducers including concentric reducers and butt weld eccentric reducers that meet strict certifications for today's pipe systems.Our reducers have high-strength and corrosion resistance for use in various industries. Our high-quality reducers come in a variety of sizes and schedules starting from SCH5S to SCH80.

Specification

Size	Welded1''-48''(DN12-DN1200) Seamless 1/2''-24''(DN15-DN600)
Wall Thickness	SCH5S-SCH160S
Standard	ASTM A815 UNS S32750 / UNS S32760 UNS S31803 / 32550 ASME B16.9
Packaging	In Wooden cases,pallets or as your requirements.
Pressure	2000#/3000#/6000#/9000#.....
Stainless steel reducer	ASTM A403 WP 304,304L,A403,316,316L,317,317L etc.
Carbon ateel reducerf	A234 WPB,A420 WPL6 etc.
Alloy pipe reducer	A234 WP1,WP5,WP9,WP11,WP22,WP91 etc.

Chemical Composition Of ASME WP316L Reducer

Ni	C	Mn	P	S	Si	Cr	Mo
10.0-14.0	0.03	2.00	0.045	0.030	1.00	16.0-18.0	2.00-3.00

ASME B16.9 WP 316L Reducer Mechanical propcrties

Grade	Tensile strength (MPa)	Elongation (% in 50mm)	Yield strength 0.2% proof (MPa)	Hardness≤
316L	517	50	220	79

Product Size Reference

Sch 80s Stainless Steel Pipe Fitting Concentric Reducer WP316l ASME B16.9

Pipe Size(NPS)	large end	small end	End-to-End, H	Nominal Pipe Size(NPS)	large end	small end	End-to-End, H
3/4"X1/2"	26.7	213	38	5X4	141.3	114.3	127
3/4"X3/8"	26.7	17.3	38	5 x 3-1/2"	141.3	101.6	127
1"X3/4"	33.4	26.7	51	5 x 3	141.3	88.9	127
1"X1/2"	33.4	21.3	51	5 x 2-1/2"	141.3	73	127
1-1/4"X 1"	42.2	33.4	51	5 x 2	141.3	60.3	127
1-1/4"X 3/4"	42.2	26.7	51	6X5	168.3	141.3	140
1-1/4"X 1/2"	42.2	21.3	51	6x4	168.3	114.3	140
1-1/2"X 1-1/4"	48.3	42.2	64	6 x	168.3	101.6	140
1-1/2"X 1"	48.3	33.4	64	6X3	168.3	88.9	140
1-1/2"X 3/4"	48.3	26.7	64	6 x 2-1/2"	168.3	73	140
1-1/2"X 1/2"	48.3	21.3	64	8x6	219.1	168.3	152
2"X 1-1/2"	60.3	48.3	76	8X5	219.1	141.3	152
2"X 1-1/4"	60.3	42.2	76	8X4	219.1	114.3	152
2"X 1"	60.3	33.4	76	8 x 3-1/2"	219.1	101.6	152
2"X 3/4"	60.3	26.7	76	10 x 8 .	273	219.1	178
2-1/2"X 2"	73	60.3	89	10 x 6	273	168.3	178
2-1/2"X 1-1/2"	73	48.3	89	10 x 5	273	141.3	178
2-1/2"X 1-1/4"	73	42.2	89	10 x 4	273	114.3	178
2-1/2"X 1"	73	33.4	89	12 x 10	323.8	273	203
3"X 2-1/2"	88.9	73	89	12 x 8	323.8	219.1	203
3"X 2"	88.9	60.3	89	12 x 6	323.8	168.3	203
3"X 1-1/2"	88.9	48.3	89	12 x 5	323.8	141.3	203
3"X 1-1/2"	88.9	42.2	89	14 X 12	355.6	323.8	330
3-1/2"X 3"	101.6	88.9 .	102	14 X 10	355.6	273	330
3-1/2"X 2-1/2"	101.6	73	102	14 X 8	355.6	219.1	330
3-1/2"X 2"	101.6	60.3	102	14 X 6	355.6	168.3	330
3-1/2"X 1-1/2"	101.6	48.3	102	16 x 14	406.4	355.6	356
3-1/2"X 1-1/4"	101.6	42.2	102	16 x 12	406.4	323.8	356
4"X 3-1/2"	114.3	101.6	102	16 x 10	406.4	273	356
4"X 3"	1143	88.9	102	16 x 8	406.4	219.1	356
4"X 2-1/2"	114.3	73	102	18 x 16	457	406.4	381
4"X 2"	114.3	60.3	102	18 x 14'	457	355.6	381
4"X 1-1/2"	114.3	48.3	102	18 x 12	457	323.8	381
