Product Details
Place of Origin: CHINA
Brand Name: Zheheng steel
Certification: ISO9001
Model Number: 88.9mm
Payment & Shipping Terms
Minimum Order Quantity: Negotiable
Price: Negotiable
Packaging Details: In bundles with waterproof material,or wooden crate packing
Delivery Time: 30DAYS
Payment Terms: L/C, T/T, D/A, D/P
Supply Ability: 50TONS/30DAYS
Product Name: |
Stainless Steel Pipe Fitting |
Material: |
304 |
Standard: |
ASTM, GB, JIS, DIN, EN, AISI |
Size: |
6mm-400mm |
Technique: |
Cold-drawn |
Shipment: |
By See, Air Or Others |
Adhibition: |
Pipe Systems And Other Relevant Industrial Fields |
Type: |
Elbow |
Product Name: |
Stainless Steel Pipe Fitting |
Material: |
304 |
Standard: |
ASTM, GB, JIS, DIN, EN, AISI |
Size: |
6mm-400mm |
Technique: |
Cold-drawn |
Shipment: |
By See, Air Or Others |
Adhibition: |
Pipe Systems And Other Relevant Industrial Fields |
Type: |
Elbow |
ASTM A403 ASME B 16.9 Stainless Steel Pipe Fitting 45 degree Elbow
Product Discription:
In a piping system, a bend is a pipe fitting that changes the direction of the pipe. There are 45°, 90°and 180° three most commonly used.
Type 304 stainless steel, a chromium-nickel material, resists corrosion caused by water, heat, saltwater, acids, minerals, and peaty soils. Type 316 stainless steel has a higher nickel content than 304 stainless, plus molybdenum, for even greater corrosion resistance.
The purpose of the elbow:
A connection pipe fitting commonly used in pipeline installation is connected to two pipes with the same or different nominal diametre, so that the pipeline makes a certain Angle turn, and the nominal pressure is 1-1.6Mpa.
Use of Elbow :
Because the elbow has good comprehensive performance, it is widely used in chemical industry, construction, water supply, drainage, petroleum, light and heavy industry, refrigeration, health, water heating, fire fighting, power, aerospace, shipbuilding and other basic projects.
Pressure factors of elbows type A
| 1 | 2 | 3 | 4 | 5 | 6 | ||||||||||||||||||||
| Model | T | 2D | 3D | 5D | T | 2D | 3D | 5D | T | 2D | 3D | 5D | T | 2D | 3D | 5D | T | 2D | 3D | 5D | T | 2D | 3D | 5D | |
| DN | D | X | X | X | X | X | X | X | X | X | X | X | X | X | X | X | X | X | X | ||||||
| 15 | 213 | 16 | - | 78 | 87 | - | - | - | - | - | - | - | - | 20 | - | 78 | 87 | 32 | - | 80 | 88 | 40 | - | 81 | 89 |
| 20 | 269 | 16 | - | 71 | 87 | - | - | - | - | - | - | - | - | 20 | - | 72 | 87 | 32 | - | 74 | 88 | 40 | - | 75 | 88 |
| 25 | 337 | 16 | - | 73 | 87 | 20 | - | 73 | 87 | - | - | - | - | 23 | - | 73 | 87 | 32 | - | 74 | 88 | 45 | - | 75 | 88 |
| 32 | 424 | 16 | - | 72 | 87 | 20 | - | 73 | 87 | - | - | - | - | 26 | - | 73 | 87 | 36 | - | 74 | 88 | 50 | - | 75 | 88 |
| 40 | 483 | 16 | - | 74 | 87 | 20 | - | 74 | 87 | - | - | - | - | 26 | - | 74 | 88 | 36 | - | 75 | 88 | 50 | - | 76 | 88 |
| 50 | 603 | 16 | 59 | 75 | 87 | 20 | 59 | 76 | 87 | 23 | 60 | 76 | 87 | 29 | 60 | 76 | 88 | 40 | 61 | 77 | 88 | 56 | 62 | 77 | 88 |
| 65 | 761 | 16 | 57 | 75 | 88 | 23 | 58 | 75 | 88 | 26 | 58 | 75 | 88 | 29 | 58 | 76 | 88 | 50 | 60 | 76 | 88 | 71 | 61 | 77 | 88 |
| 80 | 889 | 20 | 59 | 76 | 88 | 23 | 59 | 76 | 88 | 29 | 60 | 76 | 88 | 32 | 60 | 76 | 88 | 56 | 61 | 77 | 88 | 80 | 63 | 78 | 88 |
| 100 | 1,143 | 20 | 61 | 77 | 88 | 26 | 62 | 77 | 88 | 29 | 62 | 77 | 88 | 36 | 62 | 77 | 88 | 63 | 63 | 78 | 88 | 88 | 64 | 78 | 89 |
| 125 | 1,397 | 20 | 62 | 77 | 88 | 26 | 62 | 77 | 88 | 32 | 63 | 78 | 88 | 40 | 63 | 78 | 88 | 63 | 64 | 78 | 88 | 100 | 65 | 79 | 89 |
| 150 | 1,683 | 20 | 62 | 77 | 88 | 26 | 62 | 77 | 88 | 32 | 62 | 77 | 88 | 45 | 62 | 78 | 88 | 71 | 63 | 78 | 88 | 110 | 64 | 79 | 88 |
| 200 | 2,191 | 20 | 63 | 78 | 88 | 26 | 63 | 78 | 88 | 36 | 63 | 78 | 88 | 63 | 64 | 78 | 88 | 80 | 64 | 78 | 88 | 125 | 65 | 79 | 88 |
| 250 | 2,730 | 20 | 63 | 78 | 88 | 36 | 63 | 78 | 88 | 40 | 63 | 78 | 88 | 63 | 64 | 78 | 88 | 100 | 64 | 79 | 88 | - | - | - | - |
| 300 | 3,239 | 26 | 64 | 78 | 88 | 40 | 64 | 78 | 88 | 45 | 64 | 78 | 88 | 71 | 64 | 78 | 88 | 100 | 65 | 79 | 88 | - | - | - | - |
| 350 | 3,556 | 26 | 67 | 80 | 88 | 40 | 67 | 80 | 88 | 50 | 67 | 80 | 88 | 80 | 67 | 80 | 88 | 110 | 67 | 80 | 88 | - | - | - | - |
| 400 | 4,064 | 26 | 66 | 80 | 88 | 40 | 67 | 80 | 88 | 50 | 67 | 80 | 88 | 88 | 67 | 80 | 88 | 125 | 67 | 80 | 88 | - | - | - | - |
| 450 | 457 | 32 | 66 | 80 | 88 | 40 | 67 | 80 | 88 | 50 | 67 | 80 | 88 | 100 | 67 | 80 | 88 | - | - | - | - | - | - | - | - |
| 500 | 508 | 32 | 66 | 80 | 88 | 50 | 67 | 80 | 88 | 56 | 67 | 80 | 88 | 110 | 67 | 80 | 88 | - | - | - | - | - | - | - | - |
| 600 | 610 | 32 | 66 | 80 | 88 | 56 | 67 | 80 | 88 | 63 | 67 | 80 | 88 | 125 | 67 | 80 | 89 | - | - | - | - | - | - | - | - |
| 700 | 711 | 40 | 0 | 80 | 88 | 56 | 0 | 80 | 88 | 71 | - | 80 | 89 | 125 | - | 80 | 89 | - | - | - | - | - | - | - | - |
| 800 | 813 | 40 | 0 | 80 | 88 | 56 | 0 | 80 | 88 | 80 | - | 80 | 89 | 125 | - | 80 | 89 | - | - | - | - | - | - | - | - |
| 900 | 914 | 40 | 0 | 80 | 88 | 63 | 0 | 80 | 88 | 88 | - | 80 | 89 | 125 | - | 80 | 89 | - | - | - | - | - | - | - | - |
| 1000 | 1016 | 40 | 0 | 80 | 88 | 63 | 0 | 80 | 88 | 100 | - | 80 | 89 | 125 | - | 80 | 89 | - | - | - | - | - | - | - | - |
Technical:
Required control of curvature radius. For example, if the radius length is 1.5D, then the radius of curvature must be within the required tolerance. Since most of these pipe fittings are used for welding, in order to improve the quality of welding, the end is bevelled, leaving a certain Angle, with a certain edge, this requirement is also relatively strict, how thick the edge, how much the Angle and the deviation range are specified, and there are many more items than the pipe fittings in geometric size. The surface quality and mechanical properties of the elbow are basically the same as those of the pipe. In order to facilitate welding, the steel material of the pipe to be connected should be the same.
Products available:
A bend is a pipe fitting for a bend in a pipe. In all the pipe fittings used in the pipeline system, the proportion is the largest, about 80%. Usually, different forming processes are selected for elbows of different materials or wall thickness. Manufacturers commonly used seamless elbow forming processes are hot push, stamping, extrusion and so on.
About us:
Zheheng Steel is an excellent supplier of stainless steel pipes and other high quality industrial products. The pipeline range provided is manufactured according to national and international raw material quality standards. The industry is offering tubing in a variety of standards, sizes and specifications. According to customer requirements, we can provide various specifications of pipes according to customer requirements. Therefore, buyers can purchase products of different sizes, wall thicknesses, lengths, diameters, etc., according to their needs.

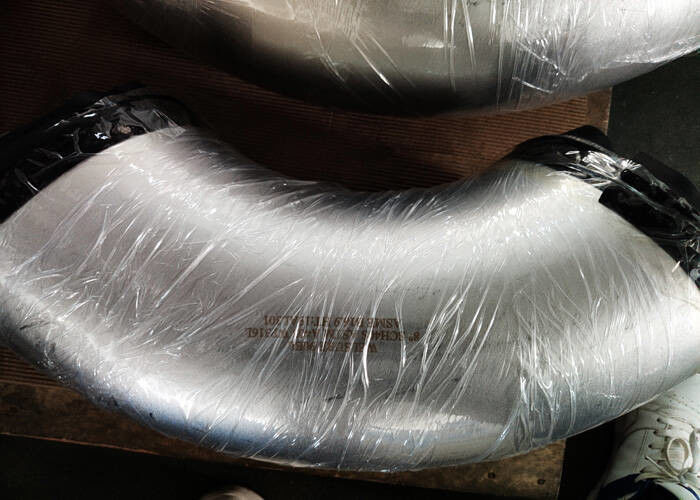

Product show:
