Product Details
Place of Origin: Wenzhou,China
Brand Name: Zheheng
Certification: ISO9001
Model Number: welded tube
Payment & Shipping Terms
Minimum Order Quantity: 1 Ton
Packaging Details: In wooded cases or pallets,or as for clients requirement
Delivery Time: 7-15 working days after receiving payment
Payment Terms: L/C, D/A, D/P, Western Union
Supply Ability: 5000 Ton/Tons per Month
Keywords: |
Stainless Steel Welded Tube |
Usage: |
Industry/Construction |
Tolerance: |
±1% |
Technique: |
Cold Rolled Or Hot Rolled |
Price Term: |
CIF CFR FOB EX-WORK |
Welding Line Type: |
ERW |
Keywords: |
Stainless Steel Welded Tube |
Usage: |
Industry/Construction |
Tolerance: |
±1% |
Technique: |
Cold Rolled Or Hot Rolled |
Price Term: |
CIF CFR FOB EX-WORK |
Welding Line Type: |
ERW |
Overview
316 stainless steel tube is an austenitic stainless steel material. Due to the addition of Mo element, 316 stainless steel has greatly improved its corrosion resistance and high temperature strength. The high temperature resistance can reach 1200-1300 degrees, and it can be used under harsh conditions. The main uses of stainless steel 316 are heat exchangers for pulp and paper-making equipment, dyeing equipment, film washing equipment, pipelines, and exterior materials for buildings in coastal areas. It is also used in the field of solenoid valves, mainly for housings, clamps, spheres, valve bodies, valve seats, nuts, valve stems, etc.
Chemical composition
| C | Si | Mn | P | S | Cr | Mo | Ni | N |
| 0.07 | 1.00 | 2.00 | 0.045 | 0.015 | 16.5-18.5 | 2.00-2.5 | 10.0-13.0 | 0.11 |
Physical Property
| Density | 8.0g/cm³ |
| Melting point | 1400℃ |
| Thermal Expansion | 15.9 x10^-6 /K |
| Modulus of Elasticity | 193GPa |
| Thermal Conductivity | 16.3W/m.K |
| Electrical Resistivity | 0.74 x10^-6 Ω .m |
Welded tube advantage
1. Uniform wall thickness - the base material is formed strip, with good wall thickness consistency and high surface finish, reaching industrial clean surface level 2B.
2. Low residual stress - the steel pipe after forming uses a high temperature above 1040 degrees for bright annealing of the stainless steel pipe to eliminate stress.
3. High weld strength - welding adopts fusion welding, the material composition is unchanged, after high temperature heat treatment, the weld and the base material have the same intergranular structure, flattening the weld, reverse bending, flaring and other damage experiments, the weld will not appear cracking or cracks, burring and other problems. In addition to eddy current testing and water pressure or gas test to ensure the quality of the pipe.
4. Good consistency - the outer diameter, wall thickness, length and straightness of the pipe are consistent, and the processing accuracy is high
Stainless Steel Welded Tube Product Description
| Material | 304, 304L, 316, 316L, 201, 202, 430, 409 |
| Standard: | ASTM A554, JIS G3446, EN 10297 |
| Outside Diameter | 9.5mm ~ 100mm |
| Thickness: | 0.4mm ~ 4.0mm |
| Length: | 10mm ~ 7.5 meter or any custom made |
| MOQ: | 10 to 1000pcs or more quantity |
| Technixal flow | Coil → Inspecting → Slitting → Welding → Cutting → Buffing → Inspecting → Packing → Trucking |
| Surface | Hairline polished mirror |
Packaging &Shipping
| Packing Idea | Packing Method by Customer Request |
| 1 | Each piece per poly bag or labeling. |
| 2 | Each piece per paper tube. |
| 3 | Pack tubes into paper cartons for customer special requirement. |
| 4 | 50 pieces per bundle with waterproof packing |
| 5 | Provide strong packing with wooden crate, wooden case, steel crate, plastic pallet, wooden pallet, paper pallet as customer need. |
| 6 | Good experience for loading goods into container for customer request |

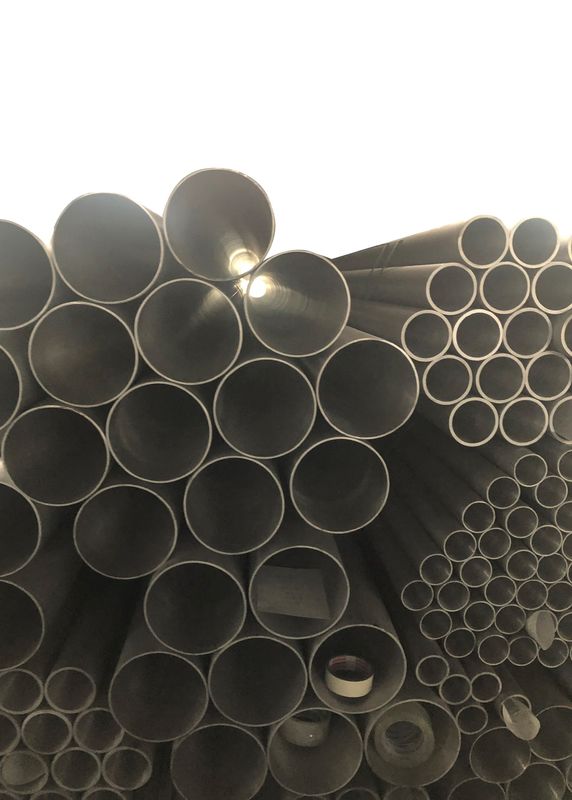

Detail image
