Product Details:
Payment & Shipping Terms:
|
| Term Name: | Stainless Steel Seamless Tubing | Material Grade: | S30100，S30400，S30403，S30451，S30453 |
|---|---|---|---|
| Shape: | Rounde Pipe | Technique: | Cold Rolled |
| Thickness Tolerance: | As Per Requirement | Length: | Up To 13 Meter Or As Customers' Request |
| Size: | As Per Requirement | Welding Line Type: | Seamless/welded |
| Packing: | We Can Negotiate | Delivery Condition: | FOB,CIF,EXW |
| High Light: | Seamless Welded Stainless Steel Pipe,S30100 Welded Stainless Steel Pipe,Welded 304 Stainless Steel Pipe |
||

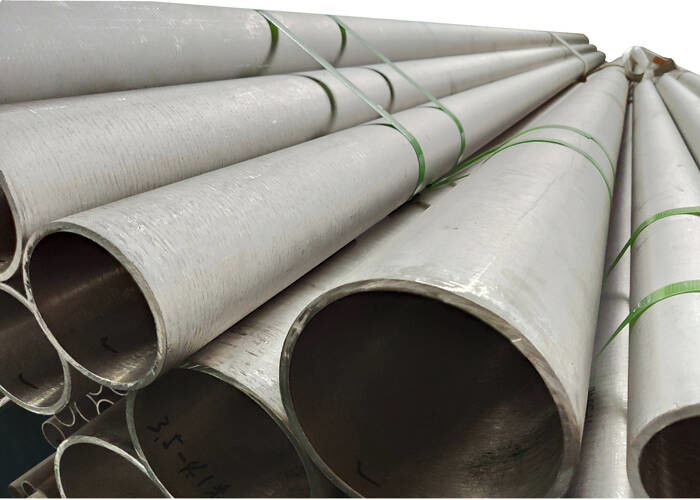

General Description
If you are looking for a reliable & one of the oldest 304 Stainless Steel tubing supplier who can provide material with mirror polish tubing and plain/ bevel/ threaded so check our client and price list. Zheheng supply SS 304 Seamless tubing from 6" NB to 120 Inch Nb in all types like Seamless, ERW, Welded, fabricated & Grooved. All our material comes with International specification of ASTM A312, A249, and ASME SA 312. We can provide 304 Steel tubing thickness from 1.2mm to 2mm. The tubing length standard size 3 meter, 6 meter and 10 meter. But we are one of the supplier who provide cut to length tubing in grade 304 which saves your cost and avoid wastage. Zheheng is SS 304 tubing supplier who stock tubings in all surface finish like Mill Finish, Annealed, Anodized, Sand Blasted, Brushed, Polished, Bright Annealed, Cold Drawn and many others. We can also provide SS tubing polish services from 182 - 320 grit.
The characteristics of 304 are as follows:
1. The steel is the most easy to cold deformation strengthening. Through cold deformation processing, the strength and hardness of the steel can be improved, and enough plastic and toughness can be retained.
2.Mainly in cold processing state applied to bear high load, but also want to reduce the weight of equipment and rust free parts.
3. This steel is easy to produce work hardening when impacted by external force. It can absorb more impact energy and provide more reliable safety guarantee for equipment and personnel
| WALL THCKNESS FOR STAINLESS STEEL PIPE &T UBE (ASME B36.10 & B36.19) | ||||||||||||||||
| DNmm | DNin | φmm | SCH5S | SCH10S | SCH40S | STD | Sch40 | Sch60 | Sch80s | XS | Sch80 | Sch120 | Sch140 | Sch160 | XXS | |
| 6 | 1/8 | 10.3 | 1.24 | 1.73 | 1.73 | 1.73 | 2.41 | 2.41 | 2.41 | |||||||
| 8 | 1/4 | 13.7 | 1.65 | 2.24 | 2.24 | 2.24 | 3.02 | 3.02 | 3.02 | |||||||
| 10 | 3/8 | 17.1 | 1.65 | 2.31 | 2.31 | 2.31 | 3.2 | 3.2 | 3.2 | |||||||
| 15 | 1/2 | 21.3 | 1.65 | 2.11 | 2.77 | 2.77 | 2.77 | 3.73 | 3.73 | 3.73 | 4.78 | 7.47 | ||||
| 20 | 3/4 | 26.7 | 1.65 | 2.11 | 2.87 | 2.87 | 2.87 | 3.91 | 3.91 | 3.91 | 5.56 | 7.82 | ||||
| 25 | 1 | 33.4 | 1.65 | 2.77 | 3.38 | 3.38 | 3.38 | 4.55 | 4.55 | 4.55 | 6.35 | 9.09 | ||||
| 32 | 1 1/4 | 42.2 | 1.65 | 2.77 | 3.56 | 3.56 | 3.56 | 4.85 | 4.85 | 4.85 | 6.35 | 9.7 | ||||
| 40 | 1 1/2 | 48.3 | 1.65 | 2.77 | 3.68 | 3.68 | 3.68 | 5.08 | 5.08 | 5.08 | 7.14 | 10.15 | ||||
| 50 | 2 | 60.3 | 1.65 | 2.77 | 3.91 | 3.91 | 3.91 | 5.54 | 5.54 | 5.54 | 8.74 | 11.07 | ||||
| 65 | 2 1/2 | 76 | 2.11 | 3.05 | 5.16 | 5.16 | 5.16 | 7.01 | 7.01 | 7.01 | 9.53 | 14.02 | ||||
| 80 | 3 | 88.9 | 2.11 | 3.05 | 5.49 | 5.49 | 5.49 | 7.62 | 7.62 | 7.62 | 11.13 | 15.24 | ||||
| 90 | 3 1/2 | 101.6 | 2.11 | 3.05 | 5.74 | 5.74 | 5.74 | 8.08 | 8.08 | 8.08 | ||||||
| 100 | 4 | 114.3 | 2.11 | 3.05 | 6.02 | 6.02 | 6.02 | 8.56 | 8.56 | 8.56 | 11.13 | 13.49 | 17.12 | |||
| 125 | 5 | 141.3 | 2.77 | 3.4 | 6.55 | 6.55 | 6.55 | 9.53 | 9.53 | 9.53 | 12.7 | 15.88 | 19.05 | |||
| 150 | 6 | 168.3 | 2.77 | 3.4 | 7.11 | 7.11 | 7.11 | 10.97 | 10.97 | 10.97 | 14.27 | 18.26 | 21.95 | |||
| 200 | 8 | 219.1 | 2.77 | 3.76 | 8.18 | 8.18 | 8.18 | 10.31 | 12.7 | 12.7 | 12.7 | 18.26 | 20.62 | 23.01 | 22.23 | |
| 250 | 10 | 273 | 3.4 | 4.19 | 9.27 | 9.27 | 9.27 | 12.7 | 12.7 | 12.7 | 15.09 | 21.44 | 25.4 | 28.58 | 25.4 | |
| 300 | 12 | 323.8 | 3.96 | 4.57 | 9.53 | 9.53 | 10.31 | 14.27 | 12.7 | 12.7 | 17.48 | 25.4 | 28.58 | 33.32 | 25.4 | |
| 350 | 14 | 355.6 | 3.96 | 4.78 | 9.53 | 11.13 | 15.09 | 12.7 | 19.05 | 27.79 | 31.75 | 35.71 | ||||
| 400 | 16 | 406.4 | 4.19 | 4.78 | 9.53 | 12.7 | 16.66 | 12.7 | 21.44 | 30.96 | 36.53 | 40.49 | ||||
| 450 | 18 | 457 | 4.19 | 4.78 | 9.53 | 14.27 | 19.05 | 12.7 | 23.83 | 34.93 | 39.67 | 45.24 | ||||
| 500 | 20 | 508 | 4.78 | 5.54 | 9.53 | 15.09 | 20.62 | 12.7 | 26.19 | 38.1 | 44.45 | 50.01 | ||||
| 550 | 22 | 559 | 4.78 | 5.54 | 9.53 | 22.23 | 12.7 | 28.58 | 41.28 | 47.63 | 53.98 | |||||
| 600 | 24 | 610 | 5.54 | 6.35 | 9.53 | 17.48 | 24.61 | 12.7 | 30.96 | 46.02 | 52.37 | 59.54 | ||||
| 650 | 26 | 660 | 9.53 | 12.7 | ||||||||||||
| 700 | 28 | 711 | 9.53 | 12.7 | ||||||||||||
| 750 | 30 | 762 | 6.35 | 7.92 | 9.53 | 12.7 | ||||||||||
| 800 | 32 | 813 | 9.53 | 17.48 | 12.7 | |||||||||||
| 850 | 34 | 864 | 9.53 | 17.48 | 12.7 | |||||||||||
| 900 | 36 | 914 | 9.53 | 19.05 | 12.7 | |||||||||||
| 950 | 38 | 965 | 9.53 | 12.7 | ||||||||||||
| 1000 | 40 | 1016 | 9.53 | 12.7 | ||||||||||||
| 1050 | 42 | 1067 | 9.53 | 12.7 | ||||||||||||
| 1100 | 44 | 1118 | 9.53 | 12.7 | ||||||||||||
| 1150 | 46 | 1168 | 9.53 | 12.7 | ||||||||||||
| 1200 | 48 | 1219 | 9.53 | 12.7 | ||||||||||||
Packaging & Shipping
1. woven bag
2. wooden case
Delivery time:7-15 days,subject to the quantity.
| Item | seamless pipe |
| STANDARD | ASTM, AISI, ASME, JIS, DIN, EN, GB, BS, SUS |
| MATERIAL | inconel 600, inconel 625, inconel 718, nitronic 50, nitronic 60, nimonic 75, nimonic 90, hastelloy C276, hastelloy X, incoloy 800, incoloy 825, etc |
| OD | 1mm-150mm(1/8" -120" )(INCH) |
| WT | 6mm-2500mm(Sch5S-SchXXS) |
| LENGTH | 1). 5.8m, 6m 12m or as required 2). 20feets, 40feets 3). random length or as customer request |
| TYPE | Seamless& welded |
"The products we do the most are round pipes , rectangular pipes and square pipes. In this respect, our production line and workmanship are very mature."
| Chemical Composition about stainless steel pipe | |||||||
| Grade | C ≤ | Si ≤ | Mn ≤ | P ≤ | S ≤ | Ni ≤ | Cr ≤ |
| 201 | 0.12 | 0.75 | 7.00 | 0.045 | 0.045 | 1.00-1.28 | 13.70-15.70 |
| 202 | 0.15 | 1 | 2.25 | 0.045 | 0.045 | 4.07-4.17 | 14.00-16.00 |
| 304 | 0.08 | 0.75 | 2 | 0.045 | 0.03 | 8.00-11.00 | 18.00-20.00 |
| 304L | 0.035 | 0.75 | 2 | 0.045 | 0.03 | 8.00-13.00 | 18.00-20.00 |
| 309 | 0.15 | 0.75 | 2 | 0.045 | 0.03 | 12.00-15.00 | 22.00-24.00 |
| 310S | 0.08 | 1.5 | 2 | 0.045 | 0.03 | 19.00-22.00 | 24.00-26.00 |
| 316 | 0.08 | 1 | 2 | 0.045 | 0.03 | 10.00-14.00 | 16.00-18.00 |
| 316L | 0.035 | 0.75 | 2 | 0.045 | 0.03 | 10.00-15.00 | 16.00-18.00 |
| 321 | 0.04-0.10 | 0.75 | 2 | 0.045 | 0.03 | 9.00-13.00 | 17.00-20.00 |
| 405 | 0.08 | 0.75 | 1 | 0.045 | 0.03 | 0.06 | 11.5-13.5 |
| 409 | 0.089 | 1 | 1 | 0.045 | 0.05 | 0.06 | 10.50-11.75 |
| 410 | 0.15 | 0.75 | 1 | 0.045 | 0.03 | 0.06 | 11.5-13.5 |
| 420 | 0.16-0.25 | 1 | 1 | 0.04 | 0.03 | 0.06 | 12.00-14.00 |
| 430 | 0.12 | 0.75 | 1 | 0.045 | 0.03 | 0.06 | 16.00-18.00 |
| 904L | 0.02 | 1 | 2 | 0.045 | 0.03 | 23.00-28.00 | 19.00-23.00 |
Our Services
FAQ
Q: Are you a manufacturer or merely a trader?
A: We are group of companies and owned manufacturer bases and trading company. We specialized in special steel which include alloy structural steel and carbon steel and stainless steel, etc. All material are with high quality and competitive price.
Q: How do you guarantee the quality of your product?
A: Firstly, we can provide the certificates from the third party, such as TUV, CE, if you need. Secondly, we have a complete set of inspection system and every process is checked by QC. Quality is the lifeline of enterprise survival.
Q: Delivery time?
A: We have ready stock for most of material grades in our warehouse. If the material don't have stock, the delivery lead time is about 5-30 days after receiving your prepayment or firm order.
Q: What is the payment term?
A: T/T or L/C.
Q: Can you provide a sample for our testing before confirm the order?
A: Yes. We can provide sample to you for approval before you place an order to us. Free sample is available if we have stock.
Q: Can we visit your company and factory?
A: Yes, warmly welcome! We can book the hotel for you before you come to China and arrange our driver to our airport to pick you up when you come.
