Product Details
Place of Origin: China
Brand Name: zheheng
Certification: PED ,TUV ,ABS ,ISO,SGS
Model Number: ZH- SMLS
Document: Product Brochure PDF
Payment & Shipping Terms
Minimum Order Quantity: 500 KGS
Price: Negotiable
Packaging Details: wooden crate packing or plastic bags packing
Delivery Time: 7 days
Payment Terms: T/T or L/C
Supply Ability: 300 Tons Per month
Material: |
2507, 2507, S32750, 1.4410, X2CrNiMoN25-7-4 |
Standard: |
ASTM/ASME SA789/790M |
Outside Diameter: |
6mm - 323mm |
Wall Thickness: |
1mm - 25mm |
Length: |
6 Meters Or Customized |
Packing: |
Plastic Bags Packing |
Application: |
Processing Plant For Sulphuric, |
HS Code: |
73044190 |
Material: |
2507, 2507, S32750, 1.4410, X2CrNiMoN25-7-4 |
Standard: |
ASTM/ASME SA789/790M |
Outside Diameter: |
6mm - 323mm |
Wall Thickness: |
1mm - 25mm |
Length: |
6 Meters Or Customized |
Packing: |
Plastic Bags Packing |
Application: |
Processing Plant For Sulphuric, |
HS Code: |
73044190 |
2507 / 2507 / S32750 / 1.4410 Stainless Steel Seamless Tubing ASTM/ASME SA789/790M
2507 is a ferritic-austenitic (duplex) stainless steel that combines the most beneficial properties of many ferritic and austenitic steels. Due to the high chromium and molybdenum content of the steel, it has a very high Good resistance to pitting corrosion, crevice corrosion and uniform corrosion. The two-phase microstructure ensures that the steel has high resistance to stress corrosion cracking and high mechanical strength.
We are an large storage company and have our own factory . We specialize in stainless steel products for 20 years, we can supply Processing services , including cutting ,welding , surface treatment and precision processing..in the production of stainless steel 2507 / 2507 / S32750 / 1.4410 seamless stainless steel tubing of various sizes, large diameter, small diameter, precision, thick wall and thin wall. The products will be produced in strict accordance with ASTM/ASME SA789/790M ,jis ,gb and AISI standards. It is one of the few manufacturers that can provide certificates such as PED, ISO, SGS, TUV, ABS. 2507 / 2507 / S32750 / 1.4410 stainless steel seamless tubing is one of the most widely used stainless steel varieties. The specific performance and description are as follows.
Products Description :
Duplex Stainless Steel Pipe Price, 2205 2507 904L 317 Duplex Stainless Steel Tube for Shipping Building
Outer diameter :6mm--630mm
Thickness :3mm-40mm
Length :As customer’s requirements
Standard :ASTM, AISI, JIS, EN, DIN, GB
Material :S31254, S32750, S31803, 254SMO, 904L
Surface :180G, 240G, 320G Satin / Hairline 400G, 600G Mirror finish
Tolerance :
a) Outer Diameter: +/- 0.2mm
b) Thickness: +/- 0.02mm
c) Length: +/- 5mm
Application :Oil refining, fertilizer, paper, petroleum, heat exchangers, condensers, etc.
Test
Chemical composition
| Material | C≤ | Mn≤ | Si≤ | S≤ | P≤ | Cr≤ | Ni | Mo | Cu≤ | N |
| S32750 | 0.03 | 1.20 | 0.8 | 0.020 | 0.035 | 24.0/26.0 | 6.0/8.0 | 3.0/5.0 | 0.50 | 0.24/0.32 |
| S3180 | 0.03 | 2.00 | 1.0 | 0.020 | 0.030 | 21.0/23.0 | 4.50/6.50 | 2.50/3.50 | 0.08/0.20 | |
| S31500 | 0.03 | 1.2/2.00 | 1.4/2.00 | 0.030 | 0.030 | 18.0/19.0 | 4.25/5.25 | 2.50/3.00 |
0.05/0.10 |
Mechanical character
| σb(Mpa)≥ | σs(Mpa≥) |
δ% ≥ |
hardness | ||
| S32750 | 800 | 550 | 15 | 310 | 32 |
| S3180 | 620 | 450 | 25 | 290 | 30.5 |
| S31500 | 630 | 440 | 30 | 290 |
30.5 |

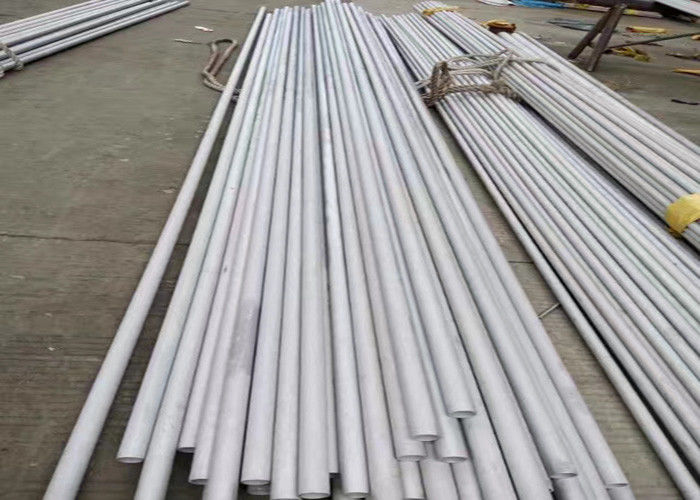

Products show : ( plastic bags packing and bundle ,pickling)
