| No999 .wenzhou airport wenzhou city,zhejiang china | sales@zhehengsteel.com |
|
Product Details:
Payment & Shipping Terms:
|
| Material: | Sus304 ,304l | Standard: | AISI ASTM A312 |
|---|---|---|---|
| Outside Diameter: | 1/8 ", 1/4 " ,3/8 " 1/ 2"inch | Wall Thickness: | SCH10S , |
| Length: | 6 Meters Or Customized | Packing: | Plastic Bags Packing |
| Application: | Construction | ||
| High Light: | ss seamless tube,304 stainless steel seamless pipe |
||
AISI Astm A312 1/8 ", 1/4 " ,3/8 " 1/ 2" INCH SUS 304 ,304l Stainless Steel Seamless Tubing
Zheheng Steel is a manufacturer specializing in the production of stainless steel 304, 304L stainless steel seamless tubing. After years of development, we are able to produce 304 and304l seamless stainless steel tubing of various sizes, large diameter, small diameter, precision, thick wall and thin wall. The products will be produced in strict accordance with ASTM A312 A213 ,jis ,gb and AISI standards. It is one of the few manufacturers that can provide certificates such as PED, ISO, SGS, TUV, ABS. 304, 304Lstainless steel seamless tubing is one of the most widely used stainless steel varieties. The specific performance and description are as follows.
Products Description :
Proiduct name sus304 ,304l stainless steel seamless tubing
Standard: ASTM, AISI, DIN, EN, GB, JIS
Model Number: 200/300/400/Alloy
Place of Origin: zhejiang , China (Mainland)
Brand Name: zheheng
Application: Construction
Type: Seamless
Steel Grade: 300 Series
Welding Line Type: Seamless
Thickness: 0.1mm-50mm
Outer Diameter: 1mm-1500mm
Material: Stainless Steel 304/316
Grade: 201/202/304 /304L/316/316L321/310s/410/420/430/440/439ect
Surface: BA/2B/NO.1/NO.3/NO.4/8K/HL/2D/1D
Technique: Cold Drawing
| Chemical Composition about stainless steel pipe | |||||||
| Grade | C ≤ | Si ≤ | Mn ≤ | P ≤ | S ≤ | Ni ≤ | Cr ≤ |
| 201 | 0.12 | 0.75 | 7.00 | 0.045 | 0.045 | 1.00-1.28 | 13.70-15.70 |
| 202 | 0.15 | 1 | 2.25 | 0.045 | 0.045 | 4.07-4.17 | 14.00-16.00 |
| 304 | 0.08 | 0.75 | 2 | 0.045 | 0.03 | 8.00-11.00 | 18.00-20.00 |
| 304L | 0.035 | 0.75 | 2 | 0.045 | 0.03 | 8.00-13.00 | 18.00-20.00 |
| DNmm | DNin | φmm | SCH5S | SCH10S | SCH40S | STD | Sch40 |
| 6 | 1/8 | 10.3 | 1.24 | 1.73 | 1.73 | 1.73 | |
| 8 | 1/4 | 13.7 | 1.65 | 2.24 | 2.24 | 2.24 | |
| 10 | 3/8 | 17.1 | 1.65 | 2.31 | 2.31 | 2.31 | |
| 15 | 1/2 | 21.3 | 1.65 | 2.11 | 2.77 | 2.77 | 2.77 |
| 20 | 3/4 | 26.7 | 1.65 | 2.11 | 2.87 | 2.87 | 2.87 |
| 25 | 1 | 33.4 | 1.65 | 2.77 | 3.38 | 3.38 | 3.38 |
| 32 | 1 1/4 | 42.2 | 1.65 | 2.77 | 3.56 | 3.56 | 3.56 |
| 40 | 1 1/2 | 48.3 | 1.65 | 2.77 | 3.68 | 3.68 | 3.68 |
| 50 | 2 | 60.3 | 1.65 | 2.77 | 3.91 | 3.91 | 3.91 |

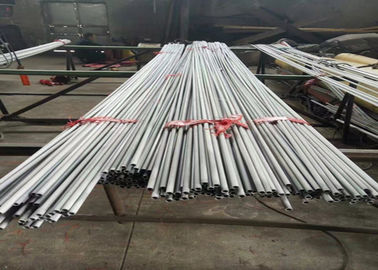

Products show : ( plastic bags packing and bundle ,pickling)
Contact Person: sales
Tel: +8615858820108
