Product Details
Place of Origin: CHINA
Brand Name: zheheng
Certification: ISO9001 PED
Model Number: 1"*sch10s
Document: Product Brochure PDF
Payment & Shipping Terms
Minimum Order Quantity: Negotiable
Price: Negotiable
Packaging Details: In bundles with waterproof material,or wooden crate packing
Delivery Time: 30 DAYS
Payment Terms: L/C, T/T, D/A, D/P
Supply Ability: 50TONS/30DAYS
Material: |
Seamless Stainless Steel Tubing |
Standard: |
ASTM ,EN,DIN |
Type: |
Seamless |
Technique: |
Cold Drawing |
Outer Diameter:: |
6mm-630mm |
Surface:: |
Bright Annealing |
Material: |
Seamless Stainless Steel Tubing |
Standard: |
ASTM ,EN,DIN |
Type: |
Seamless |
Technique: |
Cold Drawing |
Outer Diameter:: |
6mm-630mm |
Surface:: |
Bright Annealing |
Application:
In Chemical Industry, Coal, Oil Field Open Machine, Building Materials Heat-resistant Parts
Specification:
Outside Diameter: 1 1/8''~36''
Wall Thickness:
SCH 5, SCH 10S, SCH 40S, SCH 80S
Standard:
ASTM A240, ASTM A269, ASTM A312, ASTM A358, ASTM A77
Material Grade:
200 series: 201,202.204Cu.
300series: 301,302,304,304Cu,303,303Se,304L,305,307,308,308L,309,309S,310,310S,316,316L,321.
400series: 410,420,430,420J2,439,409,430S,444,431,441,446,440A,440B,440C.
Duplex and Others:
2205,904L,S31803,330,660,630,17-4PH,631,17-7PH,2507,F51,S31254 etc.
Size:
Diameter from 10mm to 1000mm,
thickness from 0.5mm to 50mm
Surface:
Annealed, Pickling, bright,matt,polished,mirror.
Packing:
Waterproof Paper Wrapped, Packed in Wooden Cabins
You can select different sizes stainless steel products with high quality from a reliable manufacturer with reasonable price. We can supply stainless tube/pipe, stainless steel sheet&plate, stainless steel bar, stainless steel wire, stainless steel coil etc.
Product Description
Standard & Tolerance: ASTM A213,ASTM A269,EN10216-5 TC1,D4/T3
NDT: Eddy Current or Hydraulic Test
Heat Treatment: Bright Annealed
| austenitic-ferritic stainless steel(duplex steel) | ||||||||||
| 23 | 0Cr26Ni5Mo2 | - | SUS329J1 | 329 | S32900 | STS329J1 | 1.4477 | - | 329J1 | 329J1 |
| 24 | 00Cr18Ni5Mo3Si2 | 022Cr19Ni5Mo3Si2N | SUS329J3L | - | S31803 | STS329J3L | 1.4462 | - | 329J3L | 329J3L |
3.1Chemical Composition:3. Material2.Description:
| Grade | C | Si | Mn | P | S | Ni | Cr | Mo | N |
| 201(1Cr17Mn6Ni5N) | ≤0.15 | ≤1.0 | ≤5.5 | ≤0.06 | ≤0.03 | 3.5-5.5 | 16.0-18.0 | — | ≤0.25 |
| 202(1Cr18Mn8Ni5N) | ≤0.15 | ≤0.07 | ≤7.5 | ≤0.06 | ≤0.03 | 4.0-6.0 | 17.0-19.0 | — | ≤0.25 |
| 304(0Cr18Ni9) | ≤0.08 | ≤0.07 | ≤2.0 | ≤0.04 | ≤0.03 | 8.0-11.0 | 18.0-20.0 | — | — |
| 304L(00Cr18Ni10) | ≤0.03 | ≤0.07 | ≤2.0 | ≤0.04 | ≤0.03 | 8.0-11.0 | 18.0-20.0 | — | — |
3.2 Mechanical Property:
| ASTM | Tensile Strength (Mpa) | Yield Strength (Mpa) | Elogation (%) | Hardness (HRB) |
| 201 | ≥655 | ≥310 | ≥40 | ≤100 |
| 202 | ≥620 | ≥260 | ≥40 | ≤100 |
| 304 | ≥515 | ≥205 | ≥40 | ≤92 |
| 304L | ≥482 | ≥170 | ≥40 | ≤88 |
4.0 Application:
|
Application
|
Architectural/Civil Engineer | Handrails, door and window fittings, steel furniture, structural sections etc |
Types of inspection
Conformity to the requirements of the order, for tubes in accordance with this Part of EN 10216, shall be verified
by specific inspection.
When an inspection document 3.1 is specified, the material manufacturer shall state in the confirmation of the
order whether he is operating according to a “quality-assurance system”, certified by a competent Body
established within the Community and having undergone a specific assessment for materials.
NOTE See the EU Directive 97/23/EC, Annex I, section 4.3 third paragraph and for further information the Guidelines of
the EU Commission and the Member States for its interpretation

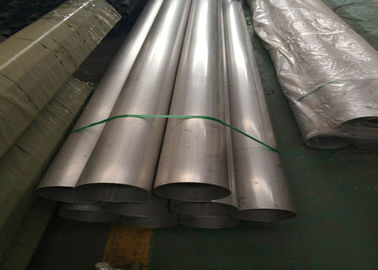

high precision ss instrumentation seamless stainless steel tubing show
