Product Details:
Payment & Shipping Terms:
|
| Material: | S31500,S31803,S32900,S31260,S32750,S32550 | Standard: | ASTM, AISI, DIN, EN, GB, JIS |
|---|---|---|---|
| Type: | Seamless | Technique: | Cold Drawing |
| Material: | W-Nr 1.4462, W-Nr 1.4417,W-Nr 1.4507 | Name: | 1.4462 Duplex Steel Pipe |
| High Light: | welding 2205 duplex stainless steel,duplex stainless steel tube |
||
W-Nr 1.4462, W-Nr 1.4417,W-Nr 1.4507,W-Nr 1.4501,W-Nr 1.4362,W-Nr 1.4410, W- duplex steel pipe
zheheng steel supply to you high quality W-Nr 1.4462 duplex steel pipe, W-Nr 1.4417 duplex steel pipe,W-Nr 1.4507 duplex steel pipe,W-Nr 1.4501 duplex steel pipe,W-Nr 1.4362 duplex steel pipe,W-Nr 1.4410 duplex steel pipe, W- duplex steel pipe, we are aslo W-Nr 1.4462 duplex steel pipe manufacturer , W-Nr 1.4417 duplex steel pipe exporter,W-Nr 1.4507 duplex steel pipe producer,W-Nr 1.4501 duplex steel pipe stockholder,W-Nr 1.4362 duplex steel pipe supplier,W-Nr 1.4410, W- duplex steel pipe
Duplex steel pipe details description:
| 1. | Item |
s steel pipe |
|
| 2. | Material |
W-Nr 1.4417,W-Nr 1.4507,W-Nr 1.4501,W-Nr 1.4362,W-Nr 1.4410, W-Nr 1.4460,SAF 2205,SAF 2507,SAF 2304,etc. |
|
| 3. | Specifications | Wall thickness | 1.0-150mm(SCH10S-XXS) |
| Outside diameter | 3.0-2500mm(1/8"-100") | ||
| Length | 6m,5.8m,8m,11.8m,12m or as required. | ||
| Steel Grade | C≤ | Mn≤ | Si≤ | S≤ | P≤ | Cr | Ni | Mo | Cu≤ | N |
|
S32750((SAF2507) 00Cr22Ni7Mo4N |
0.03 | 1.20 | 0.80 | 0.020 | 0.035 |
24.0/ 26.0 |
6.0/ 8.0 |
3.0/ 5.0 |
0.50 |
0.24/ 0.32 |
|
S31803(SAF2205) 00Cr22Ni5Mo3N |
0.03 | 2.00 | 1.0 | 0.02 | 0.030 |
21.0/ 23.0 |
4.50/ 6.50 |
2.50/ 3.50 |
0.08/ 0.20 |
|
|
S31500(3RE60) 00Cr18Ni5Mo3Si2 |
0.03 |
1.2/ 2.00 |
1. 4/ 2.00 |
0.030 | 0.030 |
18.0/ 19.0 |
4.25/ 5.25 |
2.50/ 2.00 |
0.05/ 0.10 |
| Steel Grade | Heat Treatment℃ | Ab(MPa)≥ | As(MPa)≥ | EL≥ | HB | HRC |
|
S32750(SAF2507) 00Cr22Ni5Mo3N |
1025-1125 | 800 | 550 | 15 | 310 | 32 |
|
S31803(SAF2205) 00Cr22Ni5Mo3N |
1020-1100 | 620 | 450 | 25 | 290 | 30.5 |
|
S31500(3RE60) 00Cr18Ni5Mo3Si2 |
980-1040 | 630 | 440 | 30 | 290 |
30.5 |
Product Analysis
1 An analysis of either one billet or one length of flat-rolled stock or one tube shall be made from each heat. The chemical composition thus determined shall conform to the
requirements specified.
2 A product analysis tolerance (see the annex table on Chemical Requirements (Product Analysis Tolerances) in SpecificationA 480/A 480M) shall apply. The product analysis
tolerance is not applicable to the carbon content for material with a specified maximum carbon of 0.04 % or less.
3 If the original test for product analysis fails, retests of two additional billets, lengths of flat-rolled stock, or tubes shall be made. Both retests for the elements in question shall meet the requirements of this specification; otherwise, all remaining
material in the heat shall be rejected or, at the option of the producer, each billet or tube may be individually tested for acceptance. Billets, lengths of flat-rolled stock, or tubes that do not meet the requirements of this specification shall be rejected.

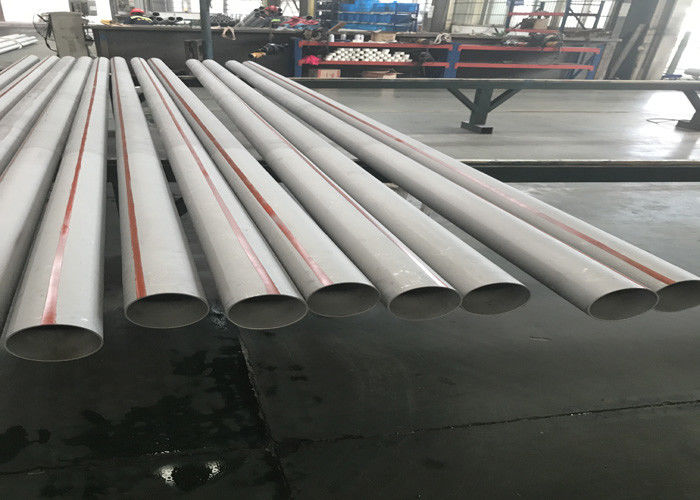

Product show:
