Product Details
Place of Origin: CHINA
Brand Name: Zheheng steel
Certification: ISO9001
Model Number: 88.9mm
Document: Product Brochure PDF
Payment & Shipping Terms
Minimum Order Quantity: Negotiable
Price: Negotiable
Packaging Details: In bundles with waterproof material,or wooden crate packing
Delivery Time: 30DAYS
Payment Terms: L/C, T/T, D/A, D/P
Supply Ability: 50TONS/30DAYS
Product Name: |
Duplex Stainless Steel Pipe |
Material: |
S32906 |
Standard: |
ASTM, GB, JIS, DIN, EN, AISI |
Size: |
6mm-400mm |
Technique: |
Cold-drawn |
Shipment: |
By See, Air Or Others |
Feature: |
Good Resistance To Intergranular Corrosion |
Product Name: |
Duplex Stainless Steel Pipe |
Material: |
S32906 |
Standard: |
ASTM, GB, JIS, DIN, EN, AISI |
Size: |
6mm-400mm |
Technique: |
Cold-drawn |
Shipment: |
By See, Air Or Others |
Feature: |
Good Resistance To Intergranular Corrosion |

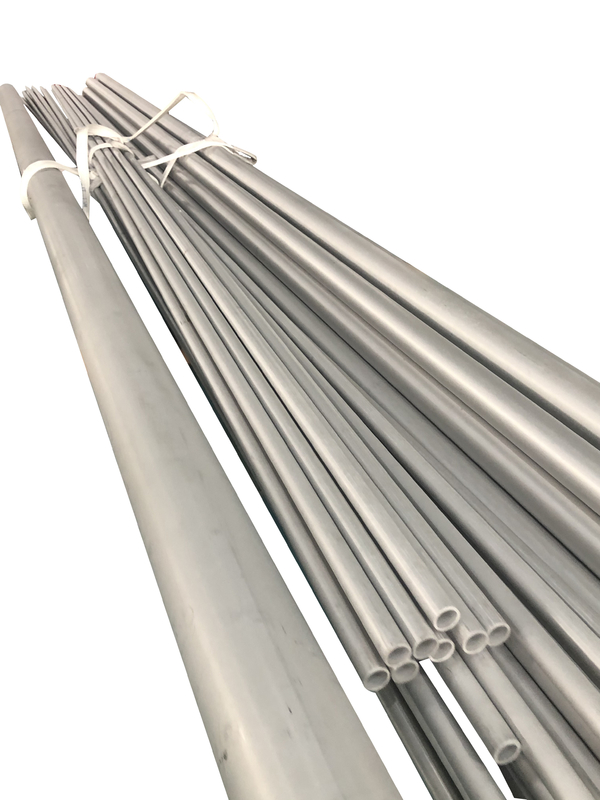

ASTM A790 Duplex Stainless Steel Pipe S32906 Good Resistance to intergranular corrosion
Product Discription:
S32906 stainless steel is a new type of super duplex stainless steel, which is further improved on the basis of 2507 duplex steel. Compared with 2507 dual phase steel, this steel reduces the molybdenum and chromium content, and its pitting resistance equivalent is slightly lower than that of 2507 dual phase steel, but its composition is more balanced and its thermal stability is improved.
The feature of Duplex 32906:
Outstanding resistance to caustic environments, also in the presence of contaminants such as chlorides
Good resistance to intergranular corrosion
Excellent resistance to pitting and crevice corrosion
High resistance to stress corrosion cracking (SCC)
Good weldability
Very high strength. The proof strength is about three times as high as for conventional austenitic stainless steel.
Domain used by S32906:
Causstic soda production
Alumina production
The components of S332906 are as follows:
| Designation | C | Mn | P | S | Si | Ni | Cr | Mo | N | Cu |
| S32906 | 0.030 | 0.80-1.50 | 0.030 | 0.030 | 0.50 | 5.8-7.5 | 28.0-30.0 | 1.5-2.6 | 0.3-0.4 | 0.80 |
Tensile and Hardness Requirements about the S32906 Duplex steel pipe:
| Designation | Tensile Strength, min, ksi [MPa] |
Yield Strength, min, ksi [MPa] |
Elongation in 2 in. or 50 mm, min, % |
Hardness, max | |
| HBW | HRC | ||||
| S32906 | |||||
| Wall below 0.40in. (10mm) | 116[800] | 94[650] | 25 | 300 | 32 |
| Wall 0.40in. (10mm) and above | 109[750] | 80[550] | 25 | 300 | 32 |
Products available:
Hot Rolled Plates
About us:
Zheheng Steel is an excellent supplier of stainless steel pipes and other high quality industrial products. The pipeline range provided is manufactured according to national and international raw material quality standards. The industry is offering tubing in a variety of standards, sizes and specifications. According to customer requirements, we can provide various specifications of pipes according to customer requirements. Therefore, buyers can purchase products of different sizes, wall thicknesses, lengths, diameters, etc., according to their needs.
