Product Details
Place of Origin: CHINA
Brand Name: zheheng
Certification: ISO9001 PED
Model Number: 1"*sch10s
Payment & Shipping Terms
Minimum Order Quantity: Negotiable
Price: Negotiable
Packaging Details: In bundles with waterproof material,or wooden crate packing
Delivery Time: 30 DAYS
Payment Terms: L/C, T/T, D/A, D/P
Supply Ability: 50TONS/30DAYS
Material: |
08X13 12X13 15X25T |
Standard: |
GOST 9940-81 |
Type: |
Seamless |
Technique: |
Cold Drawing |
Outer Diameter:: |
6mm-813mm |
Surface:: |
Annealed & Pickled |
Material: |
08X13 12X13 15X25T |
Standard: |
GOST 9940-81 |
Type: |
Seamless |
Technique: |
Cold Drawing |
Outer Diameter:: |
6mm-813mm |
Surface:: |
Annealed & Pickled |
GOST 9940-81 08X13 12X13 15X25T Stainless Steel Seamless Tube/Pipe / Tubing
zheheng steel is a one of the important suppliers of Gost 9940 standard stainless steel seamless tubing,08x13 stainless steel tubing,12x13 stainless steel tubing,15x25ti stainless steel seamless tube,gost9940 seamless stainless steel tubing manufacturer,gost9940 ss stainless steel tube stockholder,gost9941 stainless steel tubes supplier,
Description & Name: 08X13 12X13 15X25T Stainless Steel Seamless Pipe/Tube/Tubing
Standard: GOST 9940-81, GOST 9941-81, JIS G3446 JIS G3447 JISG3448 JIS G3459 JIS G3463 JIS G 3468 ASTM A213, A269, A312, A511, A789, A790, A376, EN 10216-5, EN 10297,DIN 17456, DIN 17458
Material: 08X13 AISI410S EN1.4000 ,12X13 AISI410 EN1.4006 ,15X25T AISI446 EN1.4016
Nominal Dia: 1/2 "to 32" NB for seamless pipe
Schedules: 5S, 10S, 40S, 80S, 10, 20, 30...120, 140, 160, XXS
All dimensions are in accordance with ANSI B36.19 and ANSI B36.10
Size Range for tubing: OD:1/4" (6.25mm) to 8" (203mm), WT 0.02" (0.5mm) to 0.5"(12mm)
Product Description
Standard & Tolerance: ASTM A213,ASTM A269,EN10216-5 TC1,D4/T3
NDT: Eddy Current or Hydraulic Test
Heat Tre
Inspection and Test Procedure
| 1.100% PMI,Spectro Chemical Aanlysis Test for Raw Material |
| 2.100% Dimension & Visual Examination |
| 3. Mechanical Properties Test Include Tension Test,Flaring Test (For Seamless tube/pipe)/ Flange Test (For Welded Pipe & Tube), Hardness Test ,Reversed Flattening Test |
| 4. 100% Hydrostatic Test or 100% NON-DESTRUCTIVE Test (ET or UT) |
| 5. Radiographic Test for Welded Pipe (shall be accordance with specification,or shall be as agreed upon between the purchaser and vendor) |
| 6. Straightness Test (optional) |
| 7. Roughness Test (optional) |
| 8. Intergranular Corrosion Test(optional) |
| 9. Impact Test (optional) |
| 10. Grain Size Determinations (optional) |
| NOTES : ALL THE TESTS AND INSPECTION RESULT NEED TO BE SHOWED IN REPORTS ACCORDING TO STANDARD AND SPECIFICATION. |
production range:
| Austenitic Steel: | TP304,TP304L,TP304H,TP304N, TP310S,TP316,TP316L,TP316Ti,TP316H, TP317,TP317L, TP321, TP321H,TP347, TP347H,904L… |
| Duplex Steel : | S32101,S32205,S31803,S32304,S32750, S32760 Others:TP405,TP409, TP410, TP430, TP439 ... |
| Russia Standard | 08Х17Т,08Х13,12Х13,12Х17,15Х25Т,04Х18Н10,08Х20Н14С2, 08Х18Н12Б, 10Х17Н13М2Т,10Х23Н18,08Х18Н10,08Х18Н10Т, 08Х18Н12Т,08Х17Н15М3Т, 12Х18Н10Т,12Х18Н12Т,12Х18Н9, 17Х18Н9, 08Х22Н6Т, |
| European Standard | 1.4301,1.4307,1.4948,1.4541,1.4878,1.4550,1.4401,1.4404,1.4571, 1.4438,1.4841,1.4845,1.4539,1.4162, 1.4462, 1.4362, 1.4410, 1.4501 |
atment: Bright Annealed
Diameter and wall thickness
Preferred outside diameters D and wall thicknesses T have been selected from EN 10220
The tubes shall be delivered in accordance with one of the following sets of dimensions as specified
at the time of enquiry and order:
outside diameter D and minimum wall thickness T min ;
inside diameter d and wall thickness T for d ≥ 220 mm;
inside diameter d and minimum wall thickness T min for d ≥ 220 mm;
minimum inside diameter d min and wall thickness T for d min ≥ 220 mm;
minimum inside diameter d min and minimum wall thickness T min for d min ≥220 mm.

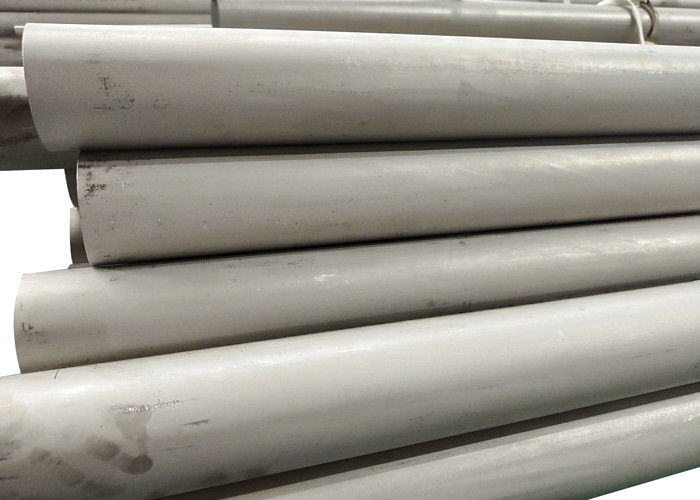

GOST 9940-81 08X13 12X13 15X25T Stainless Steel Seamless Tube show:
