Product Details
Place of Origin: CHINA
Brand Name: zheheng
Certification: ABS, GL, DNV, NK, PED, AD2000, GOST9941-81, CCS, ISO 9001-2008
Model Number: OD 3/8-32" WT "SCH10S -schXXS
Document: Product Brochure PDF
Payment & Shipping Terms
Minimum Order Quantity: Negotiable
Price: Negotiable
Packaging Details: In bundles with waterproof material,or wooden crate packing
Delivery Time: 30 DAYS
Payment Terms: L/C, T/T, D/A, D/P
Supply Ability: 50TONS/30DAYS
Material: |
304 / 316 |
Standard: |
ASTM / EN Standard |
Type: |
Seamless |
Technique: |
Cold Drawing |
Application: |
Chemical Plant |
Payment: |
L/C |
Material: |
304 / 316 |
Standard: |
ASTM / EN Standard |
Type: |
Seamless |
Technique: |
Cold Drawing |
Application: |
Chemical Plant |
Payment: |
L/C |
304 / 316 ASTM / EN standard Seamless Stainless Steel Tubing capillary tube for HPLC UPLC tubing
we have ability supply to you ASTM a312 ,a213 standard stainless steel tubing,we are aslo strictly according to other standard like
| Austenitic Steel: | TP304,TP304L,TP304H,TP304N, TP310S,TP316,TP316L,TP316Ti,TP316H, TP317,TP317L, TP321, TP321H,TP347, TP347H,904L… |
| Duplex Steel : | S32101,S32205,S31803,S32304,S32750, S32760 Others:TP405,TP409, TP410, TP430, TP439 ... |
| Russia Standard | 08Х17Т,08Х13,12Х13,12Х17,15Х25Т,04Х18Н10,08Х20Н14С2, 08Х18Н12Б, 10Х17Н13М2Т,10Х23Н18,08Х18Н10,08Х18Н10Т, 08Х18Н12Т,08Х17Н15М3Т, 12Х18Н10Т,12Х18Н12Т,12Х18Н9, 17Х18Н9, 08Х22Н6Т, |
| European Standard | 1.4301,1.4307,1.4948,1.4541,1.4878,1.4550,1.4401,1.4404,1.4571, 1.4438,1.4841,1.4845,1.4539,1.4162, 1.4462, 1.4362, 1.4410, 1.4501 |
| Walll Thickness (mm) | |||||||||||||
| 0.8 | 1 | 1.2 | 1.5 | 1.8 | 2 | 2.2 | 2.5 | 2.8 | 3 | 3.5 | 4 | 4.5 | 5 |
| Working Pressure (bar) | |||||||||||||
| 3 | 670 | ||||||||||||
| 6 | 310 | 420 | 540 | 710 | |||||||||
| 8 | 310 | 390 | 520 | ||||||||||
| 10 | 240 | 300 | 400 | 510 | 582 | ||||||||
| 12 | 200 | 250 | 330 | 410 | 470 | ||||||||
| 14 | 160 | 200 | 270 | 340 | 380 | 430 | |||||||
| 15 | 150 | 190 | 250 | 310 | 360 | 400 | |||||||
| 16 | 170 | 230 | 290 | 330 | 370 | 400 | |||||||
| 18 | 150 | 200 | 260 | 290 | 320 | 370 | |||||||
| 20 | 140 | 180 | 230 | 260 | 290 | 330 | 380 | ||||||
| 22 | 140 | 160 | 200 | 230 | 260 | 300 | 240 | ||||||
| 25 | 180 | 200 | 230 | 260 | 290 | 320 | |||||||
| 28 | 180 | 200 | 230 | 260 | 280 | 330 | |||||||
| 30 | 170 | 180 | 210 | 240 | 260 | 310 | |||||||
| 32 | 160 | 170 | 200 | 220 | 240 | 290 | 330 | ||||||
| 38 | 140 | 160 | 190 | 200 | 270 | 270 | 310 | ||||||
| 50 | 150 | 210 | 210 | 240 | |||||||||
Steel making process
The steelmaking process is at the discretion of the manufacturer with the exception that the open hearth
(Siemens-Martin) process shall not be employed unless in combination with a secondary steelmaking or ladle
refining process.
Steels shall be fully killed.
NOTE This excludes the use of rimming, balanced or semi-killed steel.

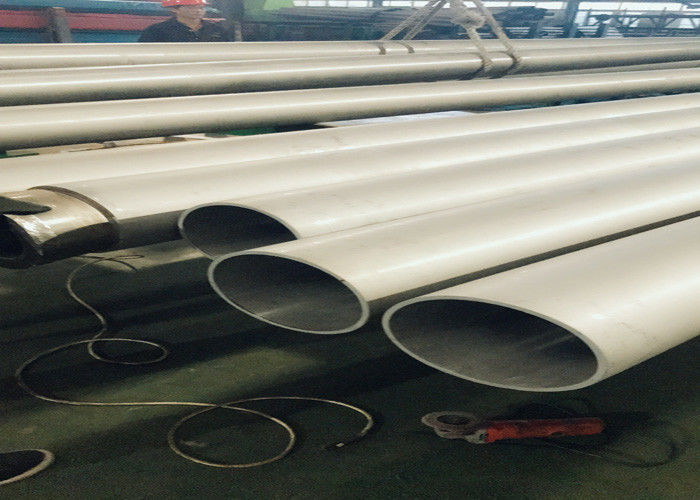

304 / 316 ASTM / EN standard Seamless Stainless Steel Tubing show:
ZHEHENG STEEL has passed approved by ABS, DNV, GL, BV, PED 97/23/EC, AD2000-WO, GOST9941-81, CCS, TS, CNNC, ISO9001-2008, ISO 14001-2004 With good quality and competitive price, we warm a good reputation in domestic and international markets. We hope to build a good and long relationship with customers from home and abroad.
