Product Details
Place of Origin: CHINA
Brand Name: zheheng
Certification: ISO9001 PED
Model Number: 19mm
Document: Product Brochure PDF
Payment & Shipping Terms
Minimum Order Quantity: Negotiable
Price: Negotiable
Packaging Details: In bundles with waterproof material,or wooden crate packing
Delivery Time: 30 DAYS
Payment Terms: L/C, T/T, D/A, D/P
Supply Ability: 50TONS/30DAYS
Certificates: |
ABS, DNV, GL, BV, PED 97/23/EC, |
Standard: |
B575 / B619, B626 |
Type: |
Seamless |
Technique: |
Cold Drawing |
Length: |
6000mm |
Material: |
Alloy 22 / N06022 / 2.4602 / NiCr21Mo14W |
Certificates: |
ABS, DNV, GL, BV, PED 97/23/EC, |
Standard: |
B575 / B619, B626 |
Type: |
Seamless |
Technique: |
Cold Drawing |
Length: |
6000mm |
Material: |
Alloy 22 / N06022 / 2.4602 / NiCr21Mo14W |
Alloy 22 / / 2.4602 / NiCr21Mo14W Nickel Alloy Pipe Hastelloy Alloy pipe B575 / B619, B626
We zheheng steel produce and supply din 17744, din 17750 / din 17751 Alloy 22 pipe,N06022 pipe,NiCr21Mo14W pipe , Hastelloy Alloy pipe, UNS N06022
DIN W. Nr. 2.4602 Hastelloy Alloy pipe Nickel Alloy Pipe Hastelloy Alloy pipe
We warmly welcome friends at home and abroad to contact us for cooperation based on mutual benefits for a bright and successful future.
Products description:
Equivalent designations
UNS N06022
DIN W. Nr. 2.4602
| Form | ASTM |
| Rod | B 574 |
| Plate, sheet and strip | B 575 |
| Seamless pipe and tube | B 622 |
| Welded pipe | B 619, B 775 |
| Welded tube | B 626, B 751 |
| Welding fitting | B 366 |
| Forged or rolled pipe flange and forged fitting | B 462 |
| Billet and bar for reforging | B 472 |
| Forging | B 564 |
Alloy 22Chemical composition:
| % | Ni | Cr | Mo | Fe | W | Co | C | Mn | Si | P | S | V |
| min | balance | 20 | 12.5 | 2 | 2.5 | |||||||
| max | 22.5 | 14.5 | 6 | 3.5 | 2.5 | 0.015 | 0.5 | 0.08 | 0.02 | 0.02 | 0 |
Alloy 22 Physical properties
| Density | 8.69 g/cm3 |
| Melting range | 1325-1370℃ |
Features: Hastelloy C-22 is a versatile Ni-Cr-Mo-W alloy with better comprehensive corrosion resistance performance than other Ni-Cr-Mo alloys, including Hastelloy C-276, Hastelloy C-4 and Inconel 625. Hastelloy C-22 has outstanding resistance to pitting, crevice corrosion and stress corrosion cracking. It has excellent resistance to oxidizing aqueous media including wet chlorine and mixtures containing nitric acid or oxidizing acids with chloride ions. It also offers optimum resistance to environments where reducing and oxidizing conditions are encountered in process streams. So it can be used where “upset” conditions are likely to occur or in multi-purpose plants. Hastelloy C-22 has exceptional resistance to a wide variety of chemical process environments, including strong oxidizers such as ferric and cupric chlorides, chlorine, hot contaminated solutions (organic and inorganic), formic and acetic acids, acetic anhydride, and seawater and brine solutions. It resists the formation of grain boundary precipitates in the weld heat-affected zone, thus making it suitable for most chemical process applications in the as-welded condition.
Applications: Chemical processing involving acetic acid, acetic anhydride and complex acid mixture; pickling operations; cellophane manufacture; chlorination systems; electro-galvanizing rolls, expansion bellows; flue gas scrubber systems; geothermal wells; HF furnace scrubbers; incineration scrubbers; nuclear fuel reprocessing; pesticide production; phosphoric acid production; heat exchangers; selective leaching systems; sulfur dioxide cooling towers; sulphonation systems; and weld overlay.
Note: Hastelloy and C-22 are registered trademarks of Haynes International, Inc. Inconel is a registered trademark of the Special Metals Corporation group of companies.

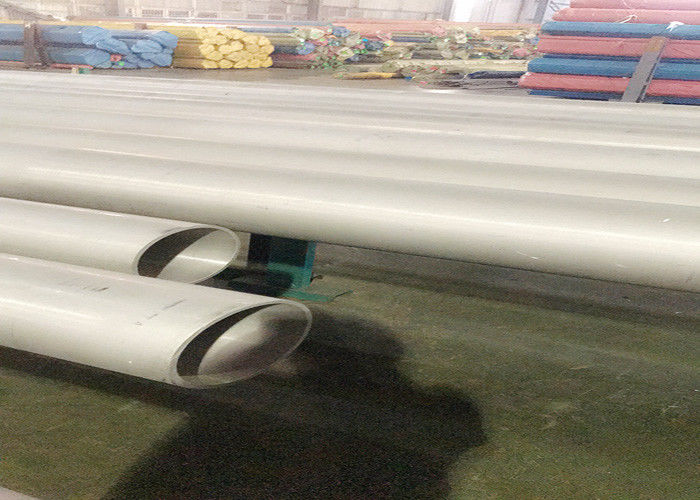

product show:
