Product Details
Place of Origin: CHINA
Brand Name: zheheng
Certification: ISO9001 PED
Model Number: 19mm
Document: Product Brochure PDF
Payment & Shipping Terms
Minimum Order Quantity: Negotiable
Price: Negotiable
Packaging Details: In bundles with waterproof material,or wooden crate packing
Delivery Time: 30 DAYS
Payment Terms: L/C, T/T, D/A, D/P
Supply Ability: 50TONS/30DAYS
Certificates: |
ABS, DNV, GL, BV, PED 97/23/EC, |
Standard: |
B575 / B619, B626 |
Type: |
Seamless |
Technique: |
Cold Drawing |
Standard: |
ASTM |
Material: |
Alloy C4 / N06455 / 2.461 / NiMo16Cr16Ti |
Certificates: |
ABS, DNV, GL, BV, PED 97/23/EC, |
Standard: |
B575 / B619, B626 |
Type: |
Seamless |
Technique: |
Cold Drawing |
Standard: |
ASTM |
Material: |
Alloy C4 / N06455 / 2.461 / NiMo16Cr16Ti |
B575 / B619, B626 Alloy C4 / N06455 / 2.461 / NiMo16Cr16Ti Nickel Alloy Pipe Hastelloy Alloy pipe
We zheheng steel produce and supply B575Hastelloy Alloy pipe, / B619 Hastelloy Alloy pipe, B626 Alloy C4 Hastelloy Alloy pipe / N06455 Hastelloy Alloy pipe / 2.461 / NiMo16Cr16Ti Hastelloy Alloy pipe Nickel Alloy Pipe Hastelloy Alloy pipe
We warmly welcome friends at home and abroad to contact us for cooperation based on mutual benefits for a bright and successful future.
Products description:
Equivalent designations
UNS N06455
DIN W. Nr. 2.4610
| Form | ASTM |
| Rod | B 574 |
| Plate, sheet and strip | B 575 |
| Seamless pipe and tube | B 622 |
| Welded pipe | B 619, B 775 |
| Welded tube | B 626, B 751 |
| Welding fitting | B 366 |
Alloy C4 Chemical composition:
| % | Ni | Cr | Mo | Fe | Co | C | Mn | Si | P | S | Ti |
| min | balance | 14 | 14 | ||||||||
| max | 18 | 17 | 3 | 2 | 0.015 | 1 | 0.08 | 0.04 | 0.03 | 0.7 |
Alloy C4 Physical properties
| Density | 8.64 g/cm3 |
| Melting range | 1350-1380℃ |
Features: Hastelloy C-4 has outstanding high-temperature stability, and has excellent resistance to stress-corrosion cracking and oxidizing atmospheres up to 1040℃. It has exceptional resistance to a wide variety of chemical process environments, including hot contaminated mineral acids, solvents, chlorine and chlorine contaminated media (organic and inorganic), formic and acetic acids, acetic anhydride, and seawater and brine solutions.
Applications: Chemical processing involving wet chlorine, hypochloric acid, hydrochloric acid, acetic acid and acetic anhydride; flue gas scrubber systems; pickling operations; and electro-galvanizing.
Note: Hastelloy is a registered trademark of Haynes International, Inc.
Chemical Composition complementary:
1 The material shall conform to the requirements for chemical composition prescribed in Table 1. One test is required for each lot as defined in Specification B751.
2 If a product (check) analysis is performed by the purchaser, the material shall conform to the requirements specified in Table 1 subject to permissible variations specified in Specification B751.
Mechanical Properties and Other Requirements
1 Mechanical Properties—The material shall conform to the mechanical properties prescribed in Table 2. One test is required for each lot as defined in Specification B751.
2 Flattening Test Requirements:
2.1 Evidence of laminated or unsound material or of incomplete weld that is revealed during the entire flattening test shall be cause for rejection.

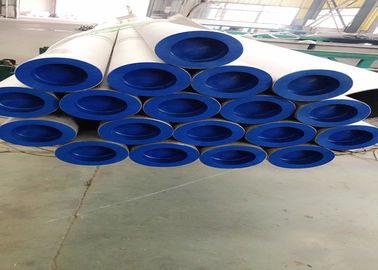

Product show:
