Product Details
Place of Origin: Wenzhou,China
Brand Name: Zheheng
Certification: ISO9001
Model Number: Elbow
Payment & Shipping Terms
Minimum Order Quantity: MOQ500kg
Packaging Details: In wooded cases or pallets,or as for clients requirement
Delivery Time: 7-15 working days after receiving payment
Payment Terms: L/C, D/P, T/T, Western Union
Supply Ability: 1000+
Size: |
Seamless Fittings: 1/2″ – 10″ Welded Fittings: 1/2″ – 48″ |
WT: |
SCH5-XXS |
Type: |
Seamless/welded |
End: |
Beveled End, Treaded And Plain End |
Price Term: |
FOB/EXW/CIF |
Bending Radius: |
R=1D, 2D, 3D, 5D, 6D, 8D, 10D Or Custom |
Manufacturing Process: |
Press, Forge, Push, Cast, Etc. |
Size: |
Seamless Fittings: 1/2″ – 10″ Welded Fittings: 1/2″ – 48″ |
WT: |
SCH5-XXS |
Type: |
Seamless/welded |
End: |
Beveled End, Treaded And Plain End |
Price Term: |
FOB/EXW/CIF |
Bending Radius: |
R=1D, 2D, 3D, 5D, 6D, 8D, 10D Or Custom |
Manufacturing Process: |
Press, Forge, Push, Cast, Etc. |

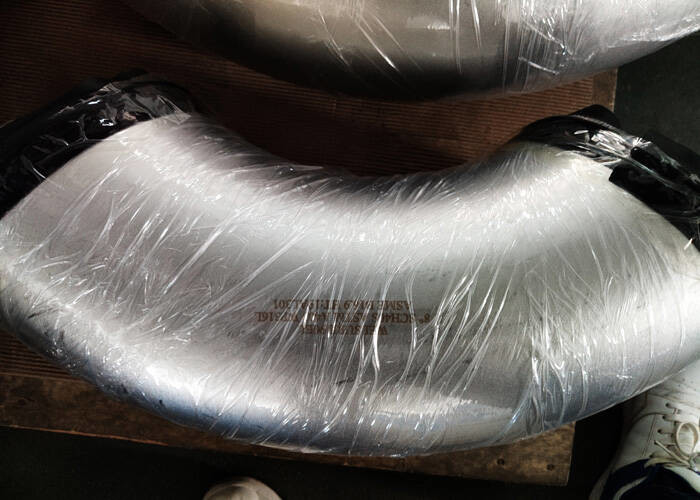

Overview
Monel 400 Pipe Fittings are one such fitting that is made up of nickel copper alloy. Monel Pipe Fittings are able to resist steam and seawater even at elevated temperatures. They also resist salts and caustic solutions. In freshwater Monel, Fittings are also said to be resistant to stress corrosion cracking. Heat and high temperature do not affect these fittings. Monel 400 Fittings also display excellent mechanical properties even at zero temperature.
It has high strength over a wide temperature range up to 1000 F. It is regarded as being a ductile Nickel-Copper alloy with resistance to a wide variety of corrosive conditions. This alloy is most frequently applied in a range of environments going from mildly oxidizing through neutral and to moderately reducing conditions. Additional application area of this material is in marine environments and other non-oxidizing chloride solutions. Like with commercially pure Nickel, Monel 400 is low in strength in the annealed condition, for this reason a variety of tempers are used to achieve higher strength levels. Monel 400 is one of the few alloys that maintains its strength in sub-zero or cryogenic temperatures, so it is often used in those applications.
Application
Power Generation
Off-Shore Oil Drilling Companies
Gas Processing
Petrochemicals
Pharmaceuticals
Specialty Chemicals
Chemical Equipment
Pharmaceutical Equipment
Heat Exchangers
Sea Water Equipment
Pulp and Paper Industry
Condensers
Equivalent Materal
| Standard | UNS | JIS | BS | GOST | AFNOR | EN |
| Monel 400 | N04400 | NW 4400 | NA 13 | МНЖМц 28-2,5-1,5 | NU-30M | Nicu30Fe |
Chemical Properties
|
Grade |
C | Mn | Silicon | Sulphur | Copper | Iron | Nickel |
| N04400 | 0.3 | 2 | 0.5 | 0.024 | 28.00-34.00 | 2.5 | 63 |
Mechanical Characteristics
Room
| Yield Strength | Ultimate Tensile Strength | Elongation percent in 2″ | Elastic Modules (E) | |||
| psi | (Mpa) | psi | (MPa) | (51 mm) | psi | (MPa) |
| 35,000 | -240 | 75,000 | -520 | 45 | 26 x 106 | (180 |
Hot Rolled
| Yield Strength | Ultimate Tensile Strength | Elongation percent in 2″ | Elastic Modules (E) | |||
| psi | (Mpa) | psi | (MPa) | (51 mm) | psi | (MPa) |
| 45,000 | -310 | 80,000 | -550 | 30 | 26 x 106 | -180 |
Heat Treated Properties
| Condition of Supply | Heat Treatment (After Forming) | |||
| Annealed/Spring Temper | Stress relieve at 300-320°C (570-610°F) for 1 hour and air cool. | |||
| Condition | Approx Tensile Strength | Approx Service Temp. | ||
| Annealed | 400 - 600 N/mm2 | 58 - 87 ksi | -200 to +230°C | -330 to +445°F |
| Spring Temper | 850 - 1050 N/mm2 | 123 - 152 ksi | -200 to +230°C | -330 to +445°F |
