Product Details
Place of Origin: CHINA
Brand Name: zheheng steel
Certification: iso9001
Model Number: 88.9mm
Payment & Shipping Terms
Minimum Order Quantity: Negotiable
Price: Negotiable
Packaging Details: In bundles with waterproof material,or wooden crate packing
Delivery Time: 30 DAYS
Payment Terms: L/C, T/T, D/A, D/P
Supply Ability: 50TONS/30DAYS
Material: |
1.4401 |
Standard: |
DIN, EN |
SIZE: |
SCH80S |
Technique: |
Cold-drawn |
Advantage: |
Good Pitting Resistance |
Package: |
Woven Packing |
OD: |
6-830mm |
Material: |
1.4401 |
Standard: |
DIN, EN |
SIZE: |
SCH80S |
Technique: |
Cold-drawn |
Advantage: |
Good Pitting Resistance |
Package: |
Woven Packing |
OD: |
6-830mm |
DIN EN 1.4401 Stainless Steel Tube SCH80S Good appearance gloss of cold-rolled products
1.4401 (S31608) is a stainless steel material with excellent corrosion resistance, compared with 304 stainless steel, has better corrosion resistance in seawater and various other media. Because the molybdenum element is added to 1.4401, it has good resistance to reducing media and pitting corrosion. In addition, 1.4401 also has good creep strength.
Basic features:
1) Good appearance gloss of cold-rolled products;
2) Due to the addition of Mo(2~3%), corrosion resistance, especially excellent pitting resistance
3) High temperature resistance
4) Excellent work hardening (weak magnetism after processing)
5) Solid solution state non-magnetic
6) Good welding performance. All standard welding methods can be used for welding. When welding, 316Cb, 316L or 309Cb stainless steel filler rods or welding rods can be used according to the use. In order to obtain the best corrosion resistance, the welded section of 316 stainless steel needs to be annealed after welding. If 316L stainless steel is used, post-welding annealing is not required.
Description for our production range:
Name :Stainless Steel seamless Pipe
Standard :EN10216-5 , EN10216-2,DIN 17456 , DIN 17458,ASTM A312,
A213, A269, A511, A789, A790 ETC,GOST 9941 , GOST 5632,
JIS G3459 , JIS G3463,GB/T14975,GB/T14975, GB13296, GB5310, GB9948
Material Grade :
EN 1.4401
Diameter :OD: 6-830mm
W.T: 0.6mm - 60mm
Length :Up to 13 meter or as customers' request
Tolerance :According to the Standard.
Surface :
Natural Color of annealing & pickling, 180G, 320G, 400G Satin / Hairline
400G, 500G, 600G or 800G Mirror finish
Test :
UT, ET, HT, RT,ect, and others according to the standard,
or as the requests of the customer
Chemical Composition
| Chemical Composition, % | |||||||||||||
| Country (Region) | Standard | Steel Grade (Steel Number) | C, ≤ | Si, ≤ | Mn, ≤ | P, ≤ | S, ≤ | Cr | Ni | Mo | Mn | N | |
| European Union | EN 10216 | X5CrNiMo17-12-2 (1.4401) |
MIN | 16.5 | 10 | 2 | 6 | ||||||
| MAX | 0.07 | 1 | 2 | 0.04 | 0.015 | 18.5 | 13 | 2.50 | 7.00 | 0.11 | |||

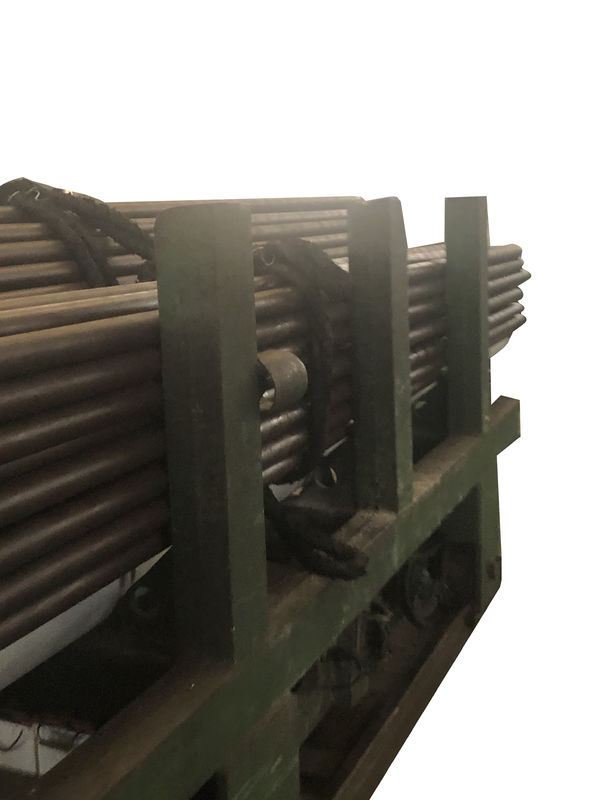

our products packing:
other supplement:
1.A999/A999M: Each pipe shall be subjected to the nondestructive electric test or the hydrostatic test, the pipe of test to be used shall be at the option of the mfg, unless otherwise specified in the PO.
2. The Pipe lengths : Unless otherwise agreed upon, all size from NPS 1/8" TO AND INCLUDING nps 8 are available in a length up to 24ft with the permitted range of 15 to 24 ft. Short length are acceptable and the number and min, length shall be agreed upon between mfg and purchaser.
3. The finished pipe shall be reasonably straight and shall have workmanlike finish, Removal of imperfections by grinding is permitted, provided the W.T are not decreased to the less than the permitted in Section 9 of Specification A999/A999M
4. Butt Weld End: According to ANSI B 16.25
5. Pipe Marking: Specified in A999/999M, include "Logo+Standard+SIZE+Heat No.+Lot No.+H.T/E.T/U.T"
6. Packing: Each Pipe end is protected by Plastic cap. Then packed by Anti-rust steel strip, The outside of the bundle is plastic woven bag, or Plastic film.
7. Packing Mark: SIZE + STEEL GRADE+ QTY OF PIECE/WEIGHT/METRE.
8.MTC: BWSS Official Original MTC paper will be supplied for each order.
