Product Details
Place of Origin: CHINA
Brand Name: zheheng steel
Certification: iso9001
Model Number: 88.9mm
Payment & Shipping Terms
Minimum Order Quantity: Negotiable
Price: Negotiable
Packaging Details: In bundles with waterproof material,or wooden crate packing
Delivery Time: 30 DAYS
Payment Terms: L/C, T/T, D/A, D/P
Supply Ability: 50TONS/30DAYS
Material: |
Tp 304L |
Standard: |
ASTM, GB, JIS, DIN, EN, AISI |
Shape: |
Sch10 |
Technique: |
Cold Draw |
Application: |
Pipeline Transport, Boiler Pipe, Hydraulic/Automobile Pipe |
Package: |
Woven Packing |
Products Type: |
Stainless Steel Pipe |
Material: |
Tp 304L |
Standard: |
ASTM, GB, JIS, DIN, EN, AISI |
Shape: |
Sch10 |
Technique: |
Cold Draw |
Application: |
Pipeline Transport, Boiler Pipe, Hydraulic/Automobile Pipe |
Package: |
Woven Packing |
Products Type: |
Stainless Steel Pipe |

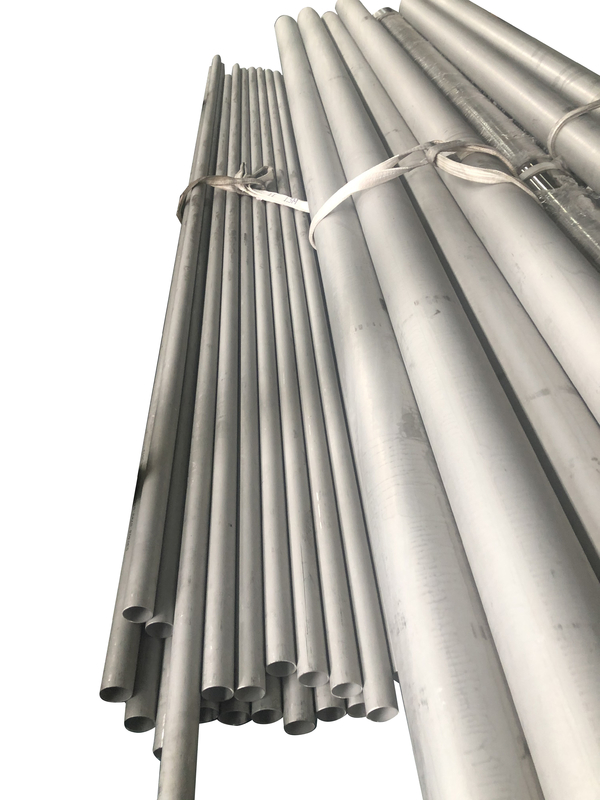

ASTM, GB, JIS, DIN, EN, AISI Stainless Steel Seamless Pipe High Quality industry 304L
As the most common stainless steel alloy, 304L stainless steel is very versatile. This grade of austenitic stainless steel pipe demonstrates excellent machinability and is a good welding material with or without adding filler metals. It resists corrosion from a range of corrosive environments. These characteristics make 304L stainless steel pipes widely used.
description for our production range:
Name :Stainless Steel seamless Pipe
Standard :EN10216-5 , EN10216-2,DIN 17456 , DIN 17458,ASTM A312,
A213, A269, A511, A789, A790 ETC,GOST 9941 , GOST 5632,
JIS G3459 , JIS G3463,GB/T14975,GB/T14975, GB13296, GB5310, GB9948
Material Grade :
TP304/304L,TP316/316L,TP347/347H, TP321/321H, TP310/310S,TP317/317L
TP410 TP410S TP403
S31803,S32205,S32750
Diameter :OD: 6-830mm
W.T: 0.6mm - 60mm
Length :Up to 13 meter or as customers' request
Tolerance :According to the Standard.
Surface :
Natural Color of annealing & pickling, 180G, 320G, 400G Satin / Hairline
400G, 500G, 600G or 800G Mirror finish
Test :
UT, ET, HT, RT,ect, and others according to the standard,
or as the requests of the customer
zheheng steel is one of the leading manufacturer and exporter for the Stainless Steel Seamless Pipes & Tubes from Wenzhou, China. Based on our Stainless Steel seamless pipe factory, We supply the ONE-STOP service fittings,flanges, valves etc to our customers home and abroad.
the standards ASTM A312, A213, A269, EN are implemented. DIN, etc. are widely used in petroleum, chemical, machinery, aerospace, shipbuilding and other industries.
At present, we are mainly engaged in austenitic stainless steel seamless pipes. The main materials are 304, 316, 321, 904L, S31803, etc. The wall thickness of steel pipes is from SCH10S, SCH40S, SCH80S, SCH160, SCHXXS, SCHSTD, etc.
our products packing:
APPLICATIONS FIELD :
| Industry | Applications | Industry | Applications |
| Chemical | Heat Exchanger,Boiler | Sugar | Evaporators, Condensers, Driers |
| Petrochemicals | Condensers | Automobiles | Muffler Tubes Hydraulic Tubing |
| Refineries | General Piping | Construction | Architectural Furniture |
| Fertilizers | Pressure Vessels | Pharmaceuticals, Dairy, Food & Beverages | Machineries Process Piping |
| Paper & Pulp | Industrial Equipments | Submersible Pumps | Pump Casing Applications |
| Engineering | Machineries Instrumentation Tubing |
|
other supplement:
1.A999/A999M: Each pipe shall be subjected to the nondestructive electric test or the hydrostatic test, the pipe of test to be used shall be at the option of the mfg, unless otherwise specified in the PO.
2. The Pipe lengths : Unless otherwise agreed upon, all size from NPS 1/8" TO AND INCLUDING nps 8 are available in a length up to 24ft with the permitted range of 15 to 24 ft. Short length are acceptable and the number and min, length shall be agreed upon between mfg and purchaser.
3. The finished pipe shall be reasonably straight and shall have workmanlike finish, Removal of imperfections by grinding is permitted, provided the W.T are not decreased to the less than the permitted in Section 9 of Specification A999/A999M
4. Butt Weld End: According to ANSI B 16.25
5. Pipe Marking: Specified in A999/999M, include "Logo+Standard+SIZE+Heat No.+Lot No.+H.T/E.T/U.T"
6. Packing: Each Pipe end is protected by Plastic cap. Then packed by Anti-rust steel strip, The outside of the bundle is plastic woven bag, or Plastic film.
7. Packing Mark: SIZE + STEEL GRADE+ QTY OF PIECE/WEIGHT/METRE.
8.MTC: BWSS Official Original MTC paper will be supplied for each order.
