Product Details
Place of Origin: CHINA
Brand Name: Zheheng steel
Certification: ISO9001
Model Number: 88.9mm
Payment & Shipping Terms
Minimum Order Quantity: Negotiable
Price: Negotiable
Packaging Details: In bundles with waterproof material,or wooden crate packing
Delivery Time: 30DAYS
Payment Terms: L/C, T/T, D/A, D/P
Supply Ability: 50TONS/30DAYS
Product Name: |
Duplex Stainless Steel Pipe |
Material Number: |
S32760 |
Standard: |
ASTM, GB, JIS, DIN, EN, AISI |
Size: |
6mm-325mm |
Technique: |
Cold-drawn |
Shipment: |
By See, Air Or Others |
Adhibition: |
Chemical And Process Industries |
Product Name: |
Duplex Stainless Steel Pipe |
Material Number: |
S32760 |
Standard: |
ASTM, GB, JIS, DIN, EN, AISI |
Size: |
6mm-325mm |
Technique: |
Cold-drawn |
Shipment: |
By See, Air Or Others |
Adhibition: |
Chemical And Process Industries |
ATSM A790 Duplex Stainless Steel Pipe S32760 used in the chemical and process industries
Product Discription:
Alloy 32760 is a super duplex stainless steel supplied under hot working and solid solution annealing conditions. As a super duplex stainless steel, it combines the advantages of both austenite and ferrite. The higher chromium, molybdenum and nitrogen content results in a pitting resistance equivalent number (PREN) of 40, providing better pitting and crevice corrosion than austenitic and duplex stainless steels in almost all corrosive media. The local corrosion resistance of super duplex stainless steel is close to 6% Mo super austenite grade. It has high strength and excellent corrosion resistance in many environments and is used in the chemical and process industries.
Features:
Use of S32760 duplex stainless steel:
Sea Water Desalination plants and pumps, Petrochemical industries, Oil & Gas Industry,
Fertilizer plant, Power Industry, Mining Extraction systems, Sewage
The components of S32760 are as follows:
| Designation | C | Mn | P | S | Si | Ni | Cr | Mo | N | Cu | Others |
| S32760 | 0.05 | 1.00 | 0.03 | 0.01 | 1.00 | 6.0-8.0 | 24.0-26.0 | 3.0-4.0 | 0.20-0.30 | 0.50-1.00 | W 0.50-1.00 40minC |
Tensile and Hardness Requirements about the S32760 Duplex steel pipe:
| Designation | Tensile Strength, min, ksi [MPa] |
Yield Strength, min, ksi [MPa] |
Elongation in 2 in. or 50 mm, min, % |
Hardness, max | |
| HBW | HRC | ||||
| S32760 | 109[750] | 80[550] | 25 | 270 | |
Products available:
Hot Rolled Plates and Coils
About us:
Zheheng Steel is an excellent supplier of stainless steel pipes and other high quality industrial products. The pipeline range provided is manufactured according to national and international raw material quality standards. The industry is offering tubing in a variety of standards, sizes and specifications. According to customer requirements, we can provide various specifications of pipes according to customer requirements. Therefore, buyers can purchase products of different sizes, wall thicknesses, lengths, diameters, etc., according to their needs.

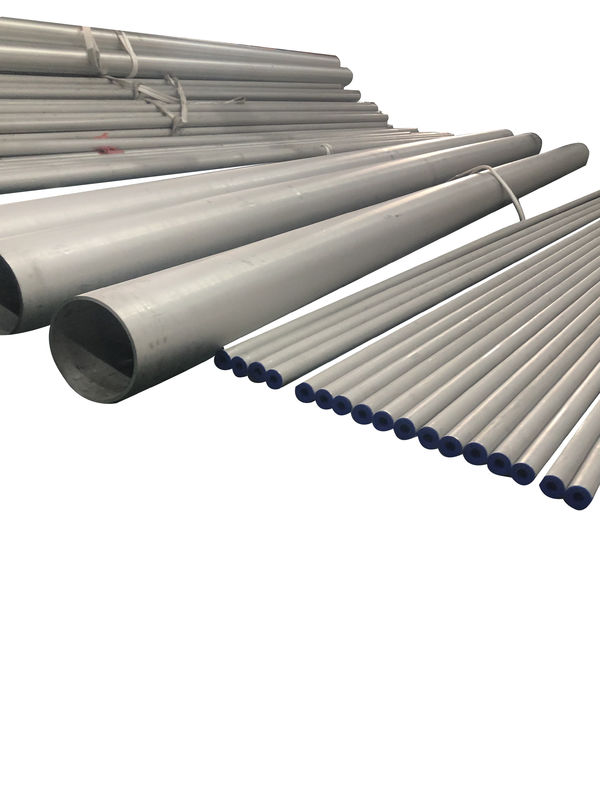

Product show:
Video
