Product Details
Place of Origin: Wenzhou,China
Brand Name: ZHE HENG
Certification: BV, PED, ISO9001
Model Number: ASME S31600
Payment & Shipping Terms
Minimum Order Quantity: 500 kg
Price: $1000-4200/Ton
Packaging Details: As to clients' requirements，Wooden Cases，Bundle Packin
Delivery Time: 30-45 work days
Payment Terms: L/C, T/T, D/P, D/A
Supply Ability: 1000+
Term Name: |

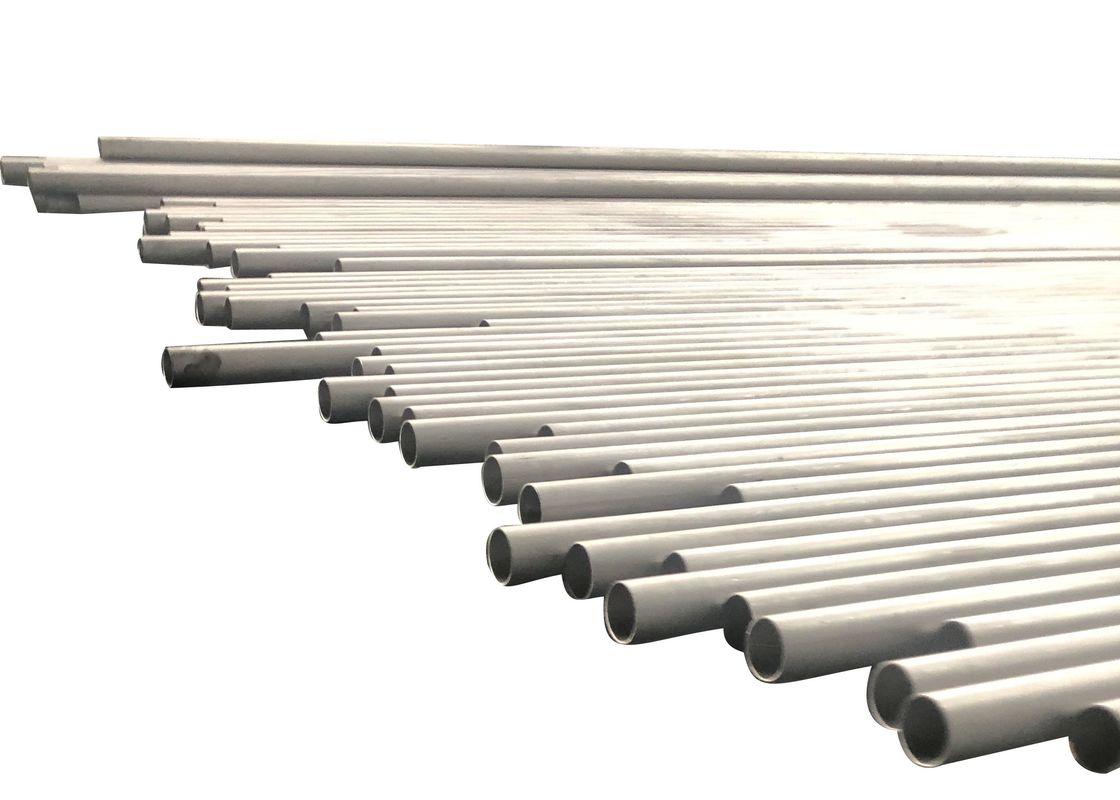

Stainless Seamless Steel Pipe |
Material Grade: |
ASME S1600 |
Shape: |
Rounde Pipe,Square Pipe,Rectangular Pipe |
Technique: |
Hot Rolled,Pickling |
Length: |
1000mm Or 20000mm |
Size: |
As Per Requirement |
Welding Line Type: |
Seamless，Welded |
Packing: |
As To Clients' Requirements，Wooden Cases. |
Term Name: |
Stainless Seamless Steel Pipe |
Material Grade: |
ASME S1600 |
Shape: |
Rounde Pipe,Square Pipe,Rectangular Pipe |
Technique: |
Hot Rolled,Pickling |
Length: |
1000mm Or 20000mm |
Size: |
As Per Requirement |
Welding Line Type: |
Seamless，Welded |
Packing: |
As To Clients' Requirements，Wooden Cases. |
Overview:
High corrosion resistance. Due to the high chromium and low carbon content, 316L stainless steel has good acid and alkali resistance and oxidation resistance, can work stably at room temperature and is not easy to rust.
High wear resistance. 316L stainless steel has high hardness and strength, can withstand greater friction and impact, suitable for the manufacture of high-strength, high-precision parts.
Good weldability. 316L stainless steel has good weldability.
Specification:
| Approximate Comparative Table | |||||||
| ASTM/ASME | ISO | USA | JAPAN | BRITAIN | GERMANY | CNS | |
| UNS No. | AISI | JIS | BS | WERKSTOFF DIN | |||
| S31600 | 20 | 316 | SUS316 | 316S31 | 1.4401 | X5CrNiMo17122 | 316 |
| S31603 | 19 | 316L | SUS316L | 316S11 | 1.4404 | X2CrNiMo17132 | 316L |
| Outside Diameter | OD 0.28-1219mm |
| Thickness | 0.08-100mm |
| Seamless Stainless Steel Pipes | 1/8“NB to 32“NB IN |
| Production Process | Cold Drawn,Bright Anneal.etc |
| Type | Seamless,welded |
| Surface | Pickling,Bright； |
| Price Item | EXW,FOB,CNF,CIF etc |
| Ends: | Beveled or plain end, square cut, burr free |
Stainless Steel Seamless Pipe Chemical Component:
| Chemical Composition about stainless steel pipe | |||||||
| Grade | C ≤ | Si ≤ | Mn ≤ | P ≤ | S ≤ | Ni ≤ | Cr ≤ |
| 316L | 0.035 | 0.75 | 2 | 0.045 | 0.03 | 10.00-15.00 | 16.00-18.00 |
| 316 | 0.08 | 1 | 2 | 0.045 | 0.03 | 10.00-14.00 | 16.00-18.00 |
Application
Its main uses are pulp and paper equipment heat exchanger, dyeing equipment, pipelines, coastal area building external materials.
Size table:
Seamless stainless steel pipes
| WALL THCKNESS FOR STAINLESS STEEL PIPE &T UBE (ASME B36.10 & B36.19) | |||||||||||||||
| DNmm | DNin | φmm | SCH5S | SCH10S | SCH40S | STD | Sch40 | Sch60 | Sch80s | XS | Sch80 | Sch120 | Sch140 | Sch160 | XXS |
| 6 | 1/8 | 10.3 | 1.24 | 1.73 | 1.73 | 1.73 | 2.41 | 2.41 | 2.41 | ||||||
| 8 | 1/4 | 13.7 | 1.65 | 2.24 | 2.24 | 2.24 | 3.02 | 3.02 | 3.02 | ||||||
| 10 | 3/8 | 17.1 | 1.65 | 2.31 | 2.31 | 2.31 | 3.2 | 3.2 | 3.2 | ||||||
| 15 | 1/2 | 21.3 | 1.65 | 2.11 | 2.77 | 2.77 | 2.77 | 3.73 | 3.73 | 3.73 | 4.78 | 7.47 | |||
| 20 | 3/4 | 26.7 | 1.65 | 2.11 | 2.87 | 2.87 | 2.87 | 3.91 | 3.91 | 3.91 | 5.56 | 7.82 | |||
| 25 | 1 | 33.4 | 1.65 | 2.77 | 3.38 | 3.38 | 3.38 | 4.55 | 4.55 | 4.55 | 6.35 | 9.09 | |||
| 32 | 1 1/4 | 42.2 | 1.65 | 2.77 | 3.56 | 3.56 | 3.56 | 4.85 | 4.85 | 4.85 | 6.35 | 9.7 | |||
| 40 | 1 1/2 | 48.3 | 1.65 | 2.77 | 3.68 | 3.68 | 3.68 | 5.08 | 5.08 | 5.08 | 7.14 | 10.15 | |||
| 50 | 2 | 60.3 | 1.65 | 2.77 | 3.91 | 3.91 | 3.91 | 5.54 | 5.54 | 5.54 | 8.74 | 11.07 | |||
| 65 | 2 1/2 | 76 | 2.11 | 3.05 | 5.16 | 5.16 | 5.16 | 7.01 | 7.01 | 7.01 | 9.53 | 14.02 | |||
| 80 | 3 | 88.9 | 2.11 | 3.05 | 5.49 | 5.49 | 5.49 | 7.62 | 7.62 | 7.62 | 11.13 | 15.24 | |||
| 90 | 3 1/2 | 101.6 | 2.11 | 3.05 | 5.74 | 5.74 | 5.74 | 8.08 | 8.08 | 8.08 | |||||
| 100 | 4 | 114.3 | 2.11 | 3.05 | 6.02 | 6.02 | 6.02 | 8.56 | 8.56 | 8.56 | 11.13 | 13.49 | 17.12 | ||
| 125 | 5 | 141.3 | 2.77 | 3.4 | 6.55 | 6.55 | 6.55 | 9.53 | 9.53 | 9.53 | 12.7 | 15.88 | 19.05 | ||
| 150 | 6 | 168.3 | 2.77 | 3.4 | 7.11 | 7.11 | 7.11 | 10.97 | 10.97 | 10.97 | 14.27 | 18.26 | 21.95 | ||
| 200 | 8 | 219.1 | 2.77 | 3.76 | 8.18 | 8.18 | 8.18 | 10.31 | 12.7 | 12.7 | 12.7 | 18.26 | 20.62 | 23.01 | 22.23 |
| 250 | 10 | 273 | 3.4 | 4.19 | 9.27 | 9.27 | 9.27 | 12.7 | 12.7 | 12.7 | 15.09 | 21.44 | 25.4 | 28.58 | 25.4 |
| 300 | 12 | 323.8 | 3.96 | 4.57 | 9.53 | 9.53 | 10.31 | 14.27 | 12.7 | 12.7 | 17.48 | 25.4 | 28.58 | 33.32 | 25.4 |
| 350 | 14 | 355.6 | 3.96 | 4.78 | 9.53 | 11.13 | 15.09 | 12.7 | 19.05 | 27.79 | 31.75 | 35.71 | |||
| 400 | 16 | 406.4 | 4.19 | 4.78 | 9.53 | 12.7 | 16.66 | 12.7 | 21.44 | 30.96 | 36.53 | 40.49 | |||
| 450 | 18 | 457 | 4.19 | 4.78 | 9.53 | 14.27 | 19.05 | 12.7 | 23.83 | 34.93 | 39.67 | 45.24 | |||
| 500 | 20 | 508 | 4.78 | 5.54 | 9.53 | 15.09 | 20.62 | 12.7 | 26.19 | 38.1 | 44.45 | 50.01 | |||
| 550 | 22 | 559 | 4.78 | 5.54 | 9.53 | 22.23 | 12.7 | 28.58 | 41.28 | 47.63 | 53.98 | ||||
| 600 | 24 | 610 | 5.54 | 6.35 | 9.53 | 17.48 | 24.61 | 12.7 | 30.96 | 46.02 | 52.37 | 59.54 | |||
| 650 | 26 | 660 | 9.53 | 12.7 | |||||||||||
| 700 | 28 | 711 | 9.53 | 12.7 | |||||||||||
| 750 | 30 | 762 | 6.35 | 7.92 | 9.53 | 12.7 | |||||||||
| 800 | 32 | 813 | 9.53 | 17.48 | 12.7 | ||||||||||
Conforms to ANSI B36.19 and ANSI B36.10 standards
FAQ:
Q: Are you a manufacturer or merely a trader?
A: We are group of companies and owned manufacturer bases and trading company. We specialized in special steel which include alloy structural steel and carbon steel and stainless steel, etc. All material are with high quality and competitive price.
Q: How do you guarantee the quality of your product?
A: Firstly, we can provide the certificates from the third party, such as TUV, CE, if you need. Secondly, we have a complete set of inspection system and every process is checked by QC. Quality is the lifeline of enterprise survival.
Q: Delivery time?
A: We have ready stock for most of material grades in our warehouse. If the material don't have stock, the delivery lead time is about 5-30 days after receiving your prepayment or firm order.
Q: What is the payment term?
A: T/T or L/C.
Q: Can you provide a sample for our testing before confirm the order?
A: Yes. We can provide sample to you for approval before you place an order to us. Free sample is available if we have stock.
Q: Can we visit your company and factory?
A: Yes, warmly welcome! We can book the hotel for you before you come to China and arrange our driver to our airport to pick you up when you come.
