90 Degree Stainless Steel Pipe Fittings , ASME B16.9 Stainless Steel Elbow Fittings

Product Details

Place of Origin: CHINA

Brand Name: zheheng

Certification: ISO9001 PED

Model Number: 4"*sch10s

Payment & Shipping Terms

Minimum Order Quantity: Negotiable

Price: Negotiable

Packaging Details: In bundles with waterproof material,or wooden crate packing

Delivery Time: 30 DAYS

Payment Terms: L/C, T/T, D/A, D/P

Supply Ability: 100TONS/30DAYS

Get Best Price
Highlight:

stainless steel pipe compression fittings

,

stainless steel pipe reducer fittings

Material:
304,316L,2205,904L ,hastelloy C 276
Standard:
AISI ASME B16.9
Type:
Coupling
Technique:
Butt Welding
Trade Terms:
FOB,
Name:
Stainless Steel Elbow Connector
Material:
304,316L,2205,904L ,hastelloy C 276
Standard:
AISI ASME B16.9
Type:
Coupling
Technique:
Butt Welding
Trade Terms:
FOB,
Name:
Stainless Steel Elbow Connector
90 Degree Stainless Steel Pipe Fittings , ASME B16.9 Stainless Steel Elbow Fittings

AISI ASME B16.9 LR 45 90 degree Stainless Steel Pipe Fittings stainless steel elbow connector



Details description:

zheheng steel is a manufacturer and trader for Stainless Steel Butt Welded elbows thin-walled, with grade WP304, 304L, 310, 316, 316L, 321, 347, 904L,Alloy Steel:s31803.s32750.S32760.,nickel alloy C276,600,625,800,825,K500, the products are exported to over 30 countries worldwide.

we are also one of AISI ASME B16.9 stainless steel pipe fittings exporter, 45,90 degree butt welding elbows stockholder ,stainless steel elbow connector supplier in china



Zheheng steel Chemical assurance

1. Each lot of raw materials will be tested by spectrometer before put in storage.

2. 100%PMI the mother pipe to ensure we put right material.

2. 100%PMI the finished pipe again to ensure we produced right grade



Heat Treatment Assurance

A full-automatic natural gas furnace with 24 meters in length.The real temperature tolerance could be within 10℃.
Standard fittings. That the fitting was manufac-
tured in conformance with this Standard, including all
dimensional requirements, is certified by a prefix "WP"
in the material grade designation marking.

Special Fittings. That the fitting was manufac-
tured in conformance with this Standard, except that
dimensional requirements are as agreed between the
purchaser and the manufacturer, is certified by a supple-
mentary suffix to the material grade designation mark-
ing as follows:
(a) "S9" applies for fittings in accordance with ASTM
A 234, A 403, A 420, and A 815.
(b) "SPLD" applies for fittings in accordance with
ASTM B 361, B 363, and B 366.



Details in supply

Name stainless steel fittings (elbow ,tee. reducer ,caps)
type Stainless Steel Butt Welded elbows thin-walled
O.D Seamless 1/2" To 24" Welded To 72"
W.T Sch5S-Sch160, XS,XXS(1.2mm~34mm)
Standard ASTM A403 ASME 16.9 ,DIN, JIS, BS, ISO, GB, SH, AND HG etc
material WP304, 304L, 310, 316, 316L, 321, 347, 904L,Alloy Steel:s31803.s32750.S32760.,nickel alloy C276,600,625,800,825,K500
surface treatment Sand Rolling, Sand Blasting ,Acid Cleaning.
packing wooden case, pallet or as customers’ requirement
applications Petroleum,chemical,power,gas,metallurgy, shipbuilding, construction, etc
min order 10 pieces
delivery time 15 after receipt of advanced payment
certificates API, CCS,and ISO9001:2008 ,PED





Packaging Details

Bubble pack for each Pipe Fitting packaged within carton box or plywood case, depending on order quantity and the way of transport

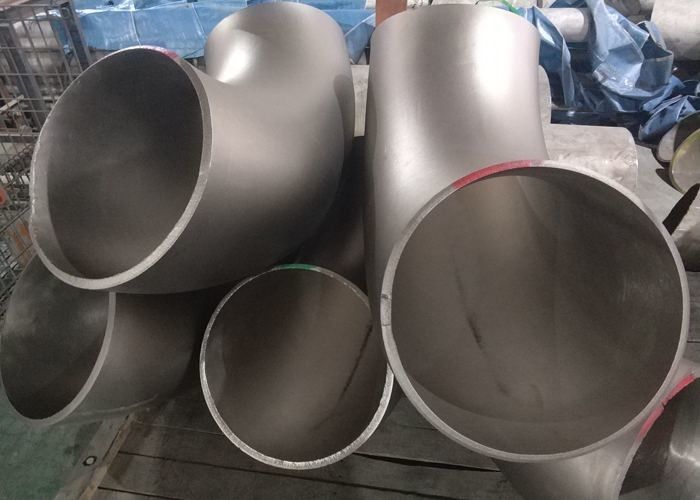

Our products show:

90 Degree Stainless Steel Pipe Fittings , ASME B16.9 Stainless Steel Elbow Fittings 0
