DIN / EN1.4057 Martensitic Stainless Steel Pipe Large / Small Diameter SS Pipe

Product Details

Place of Origin: Wenzhou,China

Brand Name: Zheheng

Certification: ISO9001

Model Number: 1.4057

Document: Product Brochure PDF

Payment & Shipping Terms

Minimum Order Quantity: MOQ500kg

Packaging Details: In wooded cases or pallets,or as for clients requirement

Delivery Time: 7-15 working days after receiving payment

Payment Terms: L/C, D/P, T/T, Western Union

Supply Ability: 1000 Ton/Tons per Month

Get Best Price
Highlight:

60mm Stainless Seamless Pipe

,

Martensitic Stainless Steel Pipe

,

EN1.4057 Stainless Steel Pipe

Thickness:
0.5-60mm
Size:
1/4" - 24"
OD:
6-2000mm
Section Shape:
Round
Surface Finish:
Polishing, Hair Line,Pickling
Price Terms:
FOB,CIF,CFR,EXW
Length:
6-7 M
Usage:
Industry
Technique:
Cold Drawn Or Hot Rolled
Thickness:
0.5-60mm
Size:
1/4" - 24"
OD:
6-2000mm
Section Shape:
Round
Surface Finish:
Polishing, Hair Line,Pickling
Price Terms:
FOB,CIF,CFR,EXW
Length:
6-7 M
Usage:
Industry
Technique:
Cold Drawn Or Hot Rolled
DIN / EN1.4057 Martensitic Stainless Steel Pipe Large / Small Diameter SS Pipe
DIN / EN1.4057 Martensitic Stainless Steel Pipe Large / Small Diameter SS Pipe
Characteristics
Chromium is the primary alloying element of martensitic steels such as 1.4057 stainless steel, imparting moderate corrosion resistance to a material with inherently high hardness and strength. In the unquenched and un-tempered condition, martensitic grades are brittle and unsuitable for engineering applications. Typically, nickel concentrations of 2-2.5% are added as a stabilizing element to ensure a martensitic steel retains its toughness properties through heat treatment, enabling the fabrication of numerous component types. Medical tools and mechanical components are among the most common devices constructed from martensitic steels.
Applications
  • Laboratory equipment
  • Marine systems
  • Beater bars
  • Pump and propeller shafts
  • Nuts and bolts
Chemical Composition
Grade C Mn Si P S Cr Ni
1.4057 min. - - - - - 15 1.25
1.4057 max. 0.2 1 1 0.04 0.03 17 2.5
Physical Properties
Physical Properties Value
Density, g/cm³ (lb/in³) 7.7 (0.278)
Magnetic Yes
Specific heat capacity, J/(Kg·K) 460 at 20°C (68°F)
Electrical resistivity, μΩ·m 0.70 at 20°C (68°F)
Modulus of elasticity (Elastic Modulus), GPa (10³ ksi) 215 (31.2) at 20°C (68°F)
212 (30.7) at 100°C (212°F)
205 (29.7) at 200°C (392°F)
200 (29) at 300°C (572°F)
Thermal conductivity, (W/m·K) 25 at 20°C (68°F)
Mean coefficient of thermal expansion, (10⁻⁶/K) 10.0 at 20-100°C (68-212°F)
10.5 at 20-200°C (68-392°F)
10.5 at 20-300°C (68-572°F)
10.5 at 20-400°C (68-752°F)
Martensitic vs Austenitic Stainless Steel

Martensitic Stainless Steel: The main alloying element is chromium. Typically used in weakly corrosive media such as sea water, fresh water, and steam, with use temperatures ≤580°C. Usually employed as production materials for high-stress components and tools. Due to poor welding performance, it is generally not used as welding parts.

Through heat treatment, the mechanical properties can be adjusted. Typical grades are Cr13 type (2Cr13, 3Cr13, 4Cr13, etc.). High hardness after quenching, with different strength and toughness combinations based on tempering temperature. Mainly used in steam turbine blades, cutlery, and surgical instruments.

Austenitic Stainless Steel: The main alloying elements are chromium and nickel. This type of steel has high toughness, low brittle transition temperature, good corrosion resistance and high temperature strength, excellent oxidation resistance, and good pressure processing and welding properties.

When Cr is about 18%, Ni 8-10%, and C about 0.1%, the steel has a stable austenitic structure. Austenitic stainless steel is non-magnetic with high toughness and plasticity, but low strength. It cannot be strengthened through phase change, only by cold working. With added elements like S, Ca, Se, Te, it has good machinability.

Product Testing
  • Coating Thickness Test
  • Geometry Inspection
  • Ultrasonic Inspection
  • Nondestructive Testing
  • Hydrostatic Testing
Packaging Process
  1. Plastic caps protect both ends
  2. Weaving bag wrapped outside the pipe
  3. Packed into wooden case

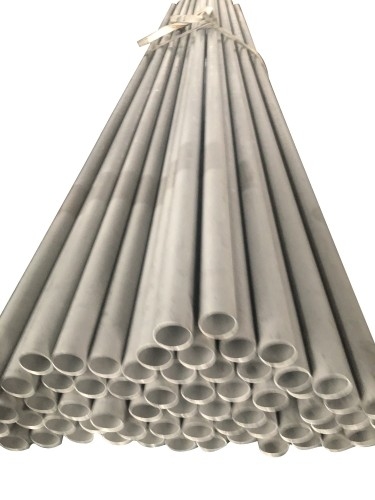

Product Image
DIN / EN1.4057 Martensitic Stainless Steel Pipe Large / Small Diameter SS Pipe 0
