Product Details
Place of Origin: Wenzhou,China
Brand Name: Zheheng
Certification: ISO9001
Model Number: 904L
Payment & Shipping Terms
Minimum Order Quantity: MOQ500kg
Packaging Details: Seaworthy Standard Package
Delivery Time: 7-15 working days after receiving payment
Payment Terms: L/C, D/P, T/T, Western Union
Supply Ability: 5000 Ton/Tons per Month
NPS: |
1/8''-24'' |
Grade: |
904L Stainless Steel |
Wall Thickness: |
SCH10S,SCH40, SCH XS, SCH 60,SCH80S,SCH12020,SCH1160,SCH |
Delivery Time: |
15-21 Days |
Application: |
Heat Exchanger, Boiler, Condenser, Cooler, Heater |
Section Shape: |
Round |
Finished: |
Annealing Pickling, Bright Annealing |
Price Term: |
FOB CIF CFR EXW Etc. |
Specification: |
ASTM A312, A269, A789, A790 |
NPS: |
1/8''-24'' |
Grade: |
904L Stainless Steel |
Wall Thickness: |
SCH10S,SCH40, SCH XS, SCH 60,SCH80S,SCH12020,SCH1160,SCH |
Delivery Time: |
15-21 Days |
Application: |
Heat Exchanger, Boiler, Condenser, Cooler, Heater |
Section Shape: |
Round |
Finished: |
Annealing Pickling, Bright Annealing |
Price Term: |
FOB CIF CFR EXW Etc. |
Specification: |
ASTM A312, A269, A789, A790 |
Overview

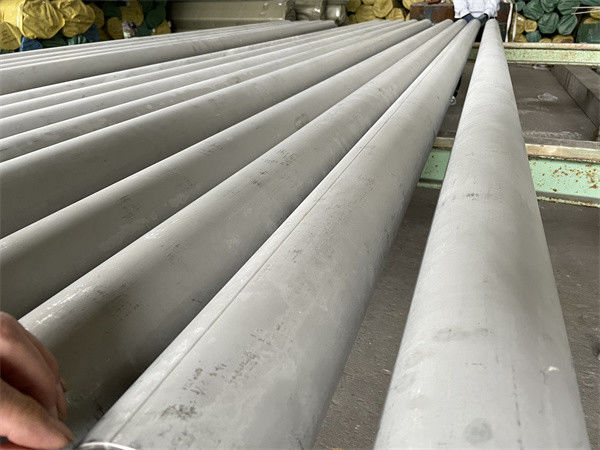

SS 904L pipes, also known as UNS N08904, are made up of a high amount of chromium, nickel and iron, which offer superior corrosion resistance, strength and toughness. It has low carbon content, copper and molybdenum, contributing to its excellent resistance to pitting and crevice corrosion.It's also well-suited for use in environments that require resistance to elevated temperatures and high levels of corrosion.
Which industries used?
Chemical processing
Oil and gas
Pharmaceutical
Chemical composition
The high chromium content promotes and maintains a passive film which protects the material in many corrosive environments. 904L has a greater resistance to precipitation of ferrite and sigma phases on cooling and welding than other stainless steels containing molybdenum such as 316L and 317L. There is no risk of intercrystalline corrosion on cooling or welding due to the low carbon content. Its maximum service temperature is at 450°C.
|
Grade |
Cr | Ni | C | Si | Mn | P | S | Mo | Cu | Fe |
| 904L | 19.0-23.0 | 23.0-28.0 | 0.02Max | 1.0max | 2.0max | 0.045max | 0.035 max | 4.0-5.0 | 1.0- 2.0 | balance |
Mechanical Properties
904L has good formability and weldability characteristics due to its low carbon content. It also offers good toughness and strength at both room temperature and elevated temperatures. Additionally, it exhibits excellent fatigue strength even after prolonged exposure to high temperatures.
| Grade |
Tensile Strength KSI (min.) |
Yield Strength 0.2% Offset KSI (min.) | Elongation % in 2ʺ(50.8 mm) | Hardness (Brinell) MAX |
Hardness (Rockwell B) MAX |
| 904L | 71 | 31 | 35 | 70-90 | 150 |
Physical Properties (Room Temperature)
This type of steel has good ductility and excellent machinability properties, which make it easy to work with when fabricating parts or components from this material. It also has excellent thermal expansion properties, making it suitable for cryogenic environments or high-temperature applications where thermal shock can occur.
| Specific Heat (0-100°C) | 450 | J.kg-1.°K-1 |
| Thermal Conductivity | 11.5 | W.m -1.°K-1 |
| Thermal Expansion | 15.8 | μm/μm/°C |
| Modulus Elasticity | 190 | GPa |
| Electrical Resistivity | 9.52 | Ohm-cm |
| Density | 7.95 | g/cm3 |
Application
Energy Chemical industry
Mechanical Engineering
Automobile Industry
Rail Transit Equipment
Steamship production
Bridge Engineering
Heat Treatment
Annealing: The recommended annealing temperatures for 904L wrought steel is 1095 °C (2000 °F).
Why choose us
1.Size control
2.Chemical composition control
4.ultrasonic testing of steel tube
3.hydraulic testing machine
