Product Details
Place of Origin: Wenzhou
Brand Name: ZHE HENG
Certification: ISO9001,CE
Model Number: 304,304L,304N,304LM,316
Payment & Shipping Terms
Minimum Order Quantity: 500 kg
Price: $1000-4200/Ton
Packaging Details: Exportsea worthy packing with each bundle tied and protected, Or as to clients' requirements.
Delivery Time: 30-45 work days
Payment Terms: L/C, T/T, D/P
Supply Ability: 1000+
Term Name: |
100% Quality Of 304 Stainless Steel Tubing With Cheap Price |
Shape: |
Rounde Pipe |
Technique: |
Cold Rolled,Seamless/Welded |
Thickness Tolerance: |
1.2mm,1.5mm,2mm |
Length: |
1000mm-12000mm |
Size: |
As Per Requirement |
Welding Line Type: |
Seamless/welded |
Packing: |
We Can Negotiate |
Term Name: |
100% Quality Of 304 Stainless Steel Tubing With Cheap Price |
Shape: |
Rounde Pipe |
Technique: |
Cold Rolled,Seamless/Welded |
Thickness Tolerance: |
1.2mm,1.5mm,2mm |
Length: |
1000mm-12000mm |
Size: |
As Per Requirement |
Welding Line Type: |
Seamless/welded |
Packing: |
We Can Negotiate |

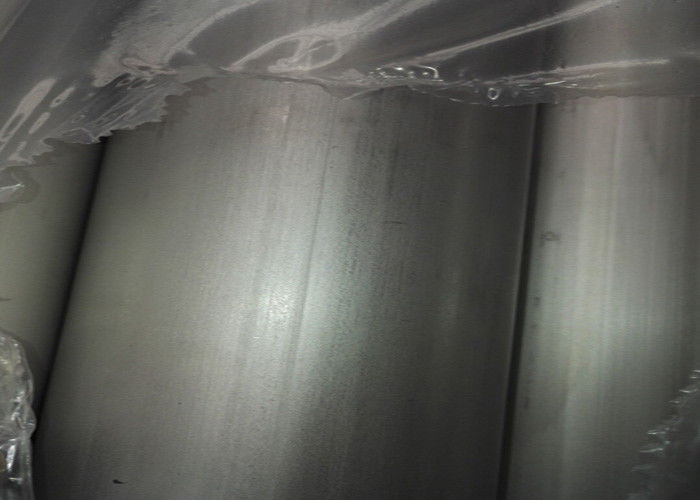

Stainless steel welded pipe is made of precision cold rolled sheet. The wall thickness difference of these cold-rolled sheets is generally about 0.002 inches, so the wall thickness difference is very small, and the wall thickness of the entire pipe is very uniform.
1.When decorative pipes, product pipes and prop pipes, stainless steel welded pipes are usually selected;
2.Conveying water, oil, gas, air and heating hot water or steam and other low pressure systems, usually choose stainless steel welded pipe;
3. Power station, nuclear power plant boiler
4.Stainless steel welded pipe is generally used for liquid transportation below 0.8MPa, and seamless pipe can be used to withstand liquid transportation above 0.8MPa.
Chemical Composition about stainless steel pipe | |||||||
Grade | C ≤ | Si ≤ | Mn ≤ | P ≤ | S ≤ | Ni ≤ | Cr ≤ |
304 | 0.08 | 0.75 | 2 | 0.045 | 0.03 | 8.00-11.00 | 18.00-20.00 |
304L | 0.035 | 0.75 | 2 | 0.045 | 0.03 | 8.00-13.00 | 18.00-20.00 |
316 | 0.08 | 1 | 2 | 0.045 | 0.03 | 10.00-14.00 | 16.00-18.00 |
316L | 0.035 | 0.75 | 2 | 0.045 | 0.03 | 10.00-15.00 | 16.00-18.00 |
WALL THCKNESS FOR STAINLESS STEEL PIPE &T UBE (ASME B36.10 & B36.19) | |||||||||||||||
DNmm | DNin | φmm | SCH5S | SCH10S | SCH40S | STD | Sch40 | Sch60 | Sch80s | XS | Sch80 | Sch120 | Sch140 | Sch160 | XXS |
6 | 1/8 | 10.3 | 1.24 | 1.73 | 1.73 | 1.73 | 2.41 | 2.41 | 2.41 | ||||||
8 | 1/4 | 13.7 | 1.65 | 2.24 | 2.24 | 2.24 | 3.02 | 3.02 | 3.02 | ||||||
10 | 3/8 | 17.1 | 1.65 | 2.31 | 2.31 | 2.31 | 3.2 | 3.2 | 3.2 | ||||||
15 | 1/2 | 21.3 | 1.65 | 2.11 | 2.77 | 2.77 | 2.77 | 3.73 | 3.73 | 3.73 | 4.78 | 7.47 | |||
20 | 3/4 | 26.7 | 1.65 | 2.11 | 2.87 | 2.87 | 2.87 | 3.91 | 3.91 | 3.91 | 5.56 | 7.82 | |||
25 | 1 | 33.4 | 1.65 | 2.77 | 3.38 | 3.38 | 3.38 | 4.55 | 4.55 | 4.55 | 6.35 | 9.09 | |||
32 | 1 1/4 | 42.2 | 1.65 | 2.77 | 3.56 | 3.56 | 3.56 | 4.85 | 4.85 | 4.85 | 6.35 | 9.7 | |||
40 | 1 1/2 | 48.3 | 1.65 | 2.77 | 3.68 | 3.68 | 3.68 | 5.08 | 5.08 | 5.08 | 7.14 | 10.15 | |||
50 | 2 | 60.3 | 1.65 | 2.77 | 3.91 | 3.91 | 3.91 | 5.54 | 5.54 | 5.54 | 8.74 | 11.07 | |||
65 | 2 1/2 | 76 | 2.11 | 3.05 | 5.16 | 5.16 | 5.16 | 7.01 | 7.01 | 7.01 | 9.53 | 14.02 | |||
80 | 3 | 88.9 | 2.11 | 3.05 | 5.49 | 5.49 | 5.49 | 7.62 | 7.62 | 7.62 | 11.13 | 15.24 | |||
90 | 3 1/2 | 101.6 | 2.11 | 3.05 | 5.74 | 5.74 | 5.74 | 8.08 | 8.08 | 8.08 | |||||
100 | 4 | 114.3 | 2.11 | 3.05 | 6.02 | 6.02 | 6.02 | 8.56 | 8.56 | 8.56 | 11.13 | 13.49 | 17.12 | ||
125 | 5 | 141.3 | 2.77 | 3.4 | 6.55 | 6.55 | 6.55 | 9.53 | 9.53 | 9.53 | 12.7 | 15.88 | 19.05 | ||
150 | 6 | 168.3 | 2.77 | 3.4 | 7.11 | 7.11 | 7.11 | 10.97 | 10.97 | 10.97 | 14.27 | 18.26 | 21.95 | ||
200 | 8 | 219.1 | 2.77 | 3.76 | 8.18 | 8.18 | 8.18 | 10.31 | 12.7 | 12.7 | 12.7 | 18.26 | 20.62 | 23.01 | 22.23 |
250 | 10 | 273 | 3.4 | 4.19 | 9.27 | 9.27 | 9.27 | 12.7 | 12.7 | 12.7 | 15.09 | 21.44 | 25.4 | 28.58 | 25.4 |
300 | 12 | 323.8 | 3.96 | 4.57 | 9.53 | 9.53 | 10.31 | 14.27 | 12.7 | 12.7 | 17.48 | 25.4 | 28.58 | 33.32 | 25.4 |
350 | 14 | 355.6 | 3.96 | 4.78 | 9.53 | 11.13 | 15.09 | 12.7 | 19.05 | 27.79 | 31.75 | 35.71 | |||
400 | 16 | 406.4 | 4.19 | 4.78 | 9.53 | 12.7 | 16.66 | 12.7 | 21.44 | 30.96 | 36.53 | 40.49 | |||
450 | 18 | 457 | 4.19 | 4.78 | 9.53 | 14.27 | 19.05 | 12.7 | 23.83 | 34.93 | 39.67 | 45.24 | |||
500 | 20 | 508 | 4.78 | 5.54 | 9.53 | 15.09 | 20.62 | 12.7 | 26.19 | 38.1 | 44.45 | 50.01 | |||
550 | 22 | 559 | 4.78 | 5.54 | 9.53 | 22.23 | 12.7 | 28.58 | 41.28 | 47.63 | 53.98 | ||||
600 | 24 | 610 | 5.54 | 6.35 | 9.53 | 17.48 | 24.61 | 12.7 | 30.96 | 46.02 | 52.37 | 59.54 | |||
650 | 26 | 660 | 9.53 | 12.7 | |||||||||||
700 | 28 | 711 | 9.53 | 12.7 | |||||||||||
750 | 30 | 762 | 6.35 | 7.92 | 9.53 | 12.7 | |||||||||
800 | 32 | 813 | 9.53 | 17.48 | 12.7 |
Q: Are you a manufacturer or merely a trader?
A: We are group of companies and owned manufacturer bases and trading company. We specialized in special steel which include alloy structural steel and carbon steel and stainless steel, etc. All material are with high quality and competitive price.
Q: How do you guarantee the quality of your product?
A: Firstly, we can provide the certificates from the third party, such as TUV, CE, if you need. Secondly, we have a complete set of inspection system and every process is checked by QC. Quality is the lifeline of enterprise survival.
Q: Delivery time?
A: We have ready stock for most of material grades in our warehouse. If the material don't have stock, the delivery lead time is about 5-30 days after receiving your prepayment or firm order.
Q: What is the payment term?
A: T/T or L/C.
Q: Can you provide a sample for our testing before confirm the order?
A: Yes. We can provide sample to you for approval before you place an order to us. Free sample is available if we have stock.
Q: Can we visit your company and factory?
A: Yes, warmly welcome! We can book the hotel for you before you come to China and arrange our driver to our airport to pick you up when you come.
