Product Details:
Payment & Shipping Terms:
|

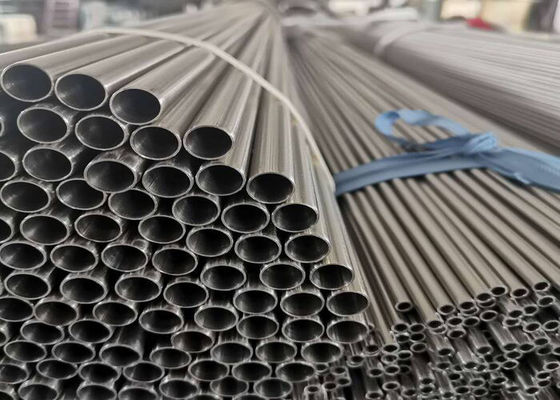

Term Name: | Stainless Steel U Tube | Shape: | Rounde Pipe |
---|---|---|---|
Technique: | Cold Rolled,Hot Rolled | Thickness Tolerance: | 1.2mm,2mm |
Length: | 1000mm-12000mm | Size: | As Per Requirement |
Welding Line Type: | Seamless,Welded | Packing: | We Can Negotiate |
High Light: | Welded Stainless Steel U-Bent Tubes,1000mm Welded Stainless Steel Tubes,Stainless Steel Seamless Tubes 1.2mm |
Overview:
Stainless steel elbow has excellent mechanical properties, excellent wear resistance and a thin and dense chrome-rich oxide film surface. This makes the stainless steel bend in all water including soft water has good corrosion resistance, even in underground use, also has good corrosion resistance, if the bend itself does not have good corrosion resistance, once rust, then the bend can only withstand 30 meters/second high speed water erosion, and stainless steel bend basically will not occur corrosion, It can directly withstand the water speed of 60 meters per second, and the service life is more than 100 years.
Stainless steel bend can not only play a good supporting role, but also can carry out liquid and gaseous material long-distance transmission, so as to improve the efficiency of industrial production, make people's life more comfortable. Stainless steel elbow is also suitable for many areas of infrastructure construction, therefore, stainless steel elbow is very common in life.
Stainless Steel Seamless Pipe Chemical Component:
Chemical Composition about stainless steel pipe | |||||||
Grade | C ≤ | Si ≤ | Mn ≤ | P ≤ | S ≤ | Ni ≤ | Cr ≤ |
201 | 0.12 | 0.75 | 7.00 | 0.045 | 0.045 | 1.00-1.28 | 13.70-15.70 |
202 | 0.15 | 1 | 2.25 | 0.045 | 0.045 | 4.07-4.17 | 14.00-16.00 |
304 | 0.08 | 0.75 | 2 | 0.045 | 0.03 | 8.00-11.00 | 18.00-20.00 |
304L | 0.035 | 0.75 | 2 | 0.045 | 0.03 | 8.00-13.00 | 18.00-20.00 |
309 | 0.15 | 0.75 | 2 | 0.045 | 0.03 | 12.00-15.00 | 22.00-24.00 |
310S | 0.08 | 1.5 | 2 | 0.045 | 0.03 | 19.00-22.00 | 24.00-26.00 |
316 | 0.08 | 1 | 2 | 0.045 | 0.03 | 10.00-14.00 | 16.00-18.00 |
316L | 0.035 | 0.75 | 2 | 0.045 | 0.03 | 10.00-15.00 | 16.00-18.00 |
321 | 0.04-0.10 | 0.75 | 2 | 0.045 | 0.03 | 9.00-13.00 | 17.00-20.00 |
Size table:
WALL THCKNESS FOR STAINLESS STEEL PIPE &T UBE (ASME B36.10 & B36.19) | |||||||||||||||
DNmm | DNin | φmm | SCH5S | SCH10S | SCH40S | STD | Sch40 | Sch60 | Sch80s | XS | Sch80 | Sch120 | Sch140 | Sch160 | XXS |
6 | 1/8 | 10.3 | 1.24 | 1.73 | 1.73 | 1.73 | 2.41 | 2.41 | 2.41 | ||||||
8 | 1/4 | 13.7 | 1.65 | 2.24 | 2.24 | 2.24 | 3.02 | 3.02 | 3.02 | ||||||
10 | 3/8 | 17.1 | 1.65 | 2.31 | 2.31 | 2.31 | 3.2 | 3.2 | 3.2 | ||||||
15 | 1/2 | 21.3 | 1.65 | 2.11 | 2.77 | 2.77 | 2.77 | 3.73 | 3.73 | 3.73 | 4.78 | 7.47 | |||
20 | 3/4 | 26.7 | 1.65 | 2.11 | 2.87 | 2.87 | 2.87 | 3.91 | 3.91 | 3.91 | 5.56 | 7.82 | |||
25 | 1 | 33.4 | 1.65 | 2.77 | 3.38 | 3.38 | 3.38 | 4.55 | 4.55 | 4.55 | 6.35 | 9.09 | |||
32 | 1 1/4 | 42.2 | 1.65 | 2.77 | 3.56 | 3.56 | 3.56 | 4.85 | 4.85 | 4.85 | 6.35 | 9.7 | |||
40 | 1 1/2 | 48.3 | 1.65 | 2.77 | 3.68 | 3.68 | 3.68 | 5.08 | 5.08 | 5.08 | 7.14 | 10.15 | |||
50 | 2 | 60.3 | 1.65 | 2.77 | 3.91 | 3.91 | 3.91 | 5.54 | 5.54 | 5.54 | 8.74 | 11.07 | |||
65 | 2 1/2 | 76 | 2.11 | 3.05 | 5.16 | 5.16 | 5.16 | 7.01 | 7.01 | 7.01 | 9.53 | 14.02 | |||
80 | 3 | 88.9 | 2.11 | 3.05 | 5.49 | 5.49 | 5.49 | 7.62 | 7.62 | 7.62 | 11.13 | 15.24 | |||
90 | 3 1/2 | 101.6 | 2.11 | 3.05 | 5.74 | 5.74 | 5.74 | 8.08 | 8.08 | 8.08 | |||||
100 | 4 | 114.3 | 2.11 | 3.05 | 6.02 | 6.02 | 6.02 | 8.56 | 8.56 | 8.56 | 11.13 | 13.49 | 17.12 | ||
125 | 5 | 141.3 | 2.77 | 3.4 | 6.55 | 6.55 | 6.55 | 9.53 | 9.53 | 9.53 | 12.7 | 15.88 | 19.05 | ||
150 | 6 | 168.3 | 2.77 | 3.4 | 7.11 | 7.11 | 7.11 | 10.97 | 10.97 | 10.97 | 14.27 | 18.26 | 21.95 | ||
200 | 8 | 219.1 | 2.77 | 3.76 | 8.18 | 8.18 | 8.18 | 10.31 | 12.7 | 12.7 | 12.7 | 18.26 | 20.62 | 23.01 | 22.23 |
250 | 10 | 273 | 3.4 | 4.19 | 9.27 | 9.27 | 9.27 | 12.7 | 12.7 | 12.7 | 15.09 | 21.44 | 25.4 | 28.58 | 25.4 |
300 | 12 | 323.8 | 3.96 | 4.57 | 9.53 | 9.53 | 10.31 | 14.27 | 12.7 | 12.7 | 17.48 | 25.4 | 28.58 | 33.32 | 25.4 |
350 | 14 | 355.6 | 3.96 | 4.78 | 9.53 | 11.13 | 15.09 | 12.7 | 19.05 | 27.79 | 31.75 | 35.71 | |||
400 | 16 | 406.4 | 4.19 | 4.78 | 9.53 | 12.7 | 16.66 | 12.7 | 21.44 | 30.96 | 36.53 | 40.49 | |||
450 | 18 | 457 | 4.19 | 4.78 | 9.53 | 14.27 | 19.05 | 12.7 | 23.83 | 34.93 | 39.67 | 45.24 | |||
500 | 20 | 508 | 4.78 | 5.54 | 9.53 | 15.09 | 20.62 | 12.7 | 26.19 | 38.1 | 44.45 | 50.01 | |||
550 | 22 | 559 | 4.78 | 5.54 | 9.53 | 22.23 | 12.7 | 28.58 | 41.28 | 47.63 | 53.98 | ||||
600 | 24 | 610 | 5.54 | 6.35 | 9.53 | 17.48 | 24.61 | 12.7 | 30.96 | 46.02 | 52.37 | 59.54 | |||
650 | 26 | 660 | 9.53 | 12.7 | |||||||||||
700 | 28 | 711 | 9.53 | 12.7 | |||||||||||
750 | 30 | 762 | 6.35 | 7.92 | 9.53 | 12.7 | |||||||||
800 | 32 | 813 | 9.53 | 17.48 | 12.7 | ||||||||||
FAQ:
Q: Are you a manufacturer or merely a trader?
A: We are group of companies and owned manufacturer bases and trading company. We specialized in special steel which include alloy structural steel and carbon steel and stainless steel, etc. All material are with high quality and competitive price.
Q: How do you guarantee the quality of your product?
A: Firstly, we can provide the certificates from the third party, such as TUV, CE, if you need. Secondly, we have a complete set of inspection system and every process is checked by QC. Quality is the lifeline of enterprise survival.
Q: Delivery time?
A: We have ready stock for most of material grades in our warehouse. If the material don't have stock, the delivery lead time is about 5-30 days after receiving your prepayment or firm order.
Q: What is the payment term?
A: T/T or L/C.
Q: Can you provide a sample for our testing before confirm the order?
A: Yes. We can provide sample to you for approval before you place an order to us. Free sample is available if we have stock.
Q: Can we visit your company and factory?
A: Yes, warmly welcome! We can book the hotel for you before you come to China and arrange our driver to our airport to pick you up when you come.
