Stainless Steel Coil Full Premixed Condensing Gas Wall-Hung Furnace

Product Details

Place of Origin: CHINA

Brand Name: zheheng

Certification: ISO9001 PED

Model Number: 15.88mm

Payment & Shipping Terms

Minimum Order Quantity: Negotiable

Price: Negotiable

Packaging Details: In bundles with waterproof material,or wooden crate packing

Delivery Time: 30 DAYS

Payment Terms: L/C, T/T, D/A, D/P

Supply Ability: 30TONS/30DAYS

Get Best Price
Highlight:

OD 12MM Stainless Steel Coil Tubing

,

Seamless Stainless Steel Coil Tubing

,

Cold Drawing SS Coil Tubing

Standard:
ASTM,AISI,DIN
Application:
Heat Exchanger,industry
Type:
Welded,Seamless
Steel Grade:
300 Series,304
Outer Diameter:
6-38.1mm
Thickness:
0.25-2.5mm
Technique:
Cold Drawn,Welded,Precision Rolling
Length:
1700FT
Product Name:
Stainless Steel Tubing,stainless Steel Coil Tube
Welding Line Type:
Seamless And Welded
Standard:
ASTM,AISI,DIN
Application:
Heat Exchanger,industry
Type:
Welded,Seamless
Steel Grade:
300 Series,304
Outer Diameter:
6-38.1mm
Thickness:
0.25-2.5mm
Technique:
Cold Drawn,Welded,Precision Rolling
Length:
1700FT
Product Name:
Stainless Steel Tubing,stainless Steel Coil Tube
Welding Line Type:
Seamless And Welded
Stainless Steel Coil Full Premixed Condensing Gas Wall-Hung Furnace

Stainless Steel Coil Full Premixed Condensing Gas Wall-Hung Furnace



Stainless steel coil tube diameter heat exchanger is generally made of stainless steel tube.

First, the stainless steel disk into the appropriate diameter of the spiral shape, and then by extrusion, so that each circle of spiral tube to form a flat section, which can increase the heat transfer area. At the same time, the screw spacing after extrusion is ensured. In order to facilitate the configuration of different power heat exchangers, generally with a power as a unit (8~10KW) processing stainless steel spiral tube. And finally according to the size of the wall-hung furnace design power, a number of stainless steel spiral tube combination into the required heat exchanger.
In recent years, it has been proved that stainless steel is an ideal material for making condensing heat exchanger. For the heat exchanger on the wall furnace of natural gas condensation, the stainless steel alloy (the main elements are chromium, nickel, molybdenum, titanium, etc.) can be made. This alloy material can prevent the corrosion of the condensate, so the surface of the heat exchanger does not need to be treated with anti-corrosion.
The thermal conductivity of stainless steel is not as good as that of copper and ordinary steel. In order to make up for its poor thermal conductivity, special attention should be paid to take some measures to strengthen heat transfer in the design of heat exchanger.



Cold drawn stainless steel seamless coil tubing product introduction:
Product name: precision cold-drawn stainless steel bright seamless coil tubing (whole roll pure seamless)
Production process: first cold rolling, then cold drawing and coiling.
Surface treatment: vacuum bright annealing (vacuum bright annealing process, the inner and outer surface of the stainless steel tube will not contact with oxygen, no
  oxide skin, so that the inner and outer surface of the stainless steel coil is cleaner, brighter and more delicate)
Delivery state: soft state (HRB≤90)
Material of coil: 304/ 304L / 321/ 317L / 2205/ 2507
Production standard: ASTM(ASME)SA/A312 / A213 / A269,DIN, GB,JIS.
Coil tubing specification: OD Φ 4mm-x 31.8mm, wall thickness (WT):0.7-2.11mm.
Tolerance range: outside diameter: ±0.1mm, wall thickness: ±10%.
Coil length:
1.1: According to the difference of outer diameter and wall thickness, the production weight of a seamless coil tubing reaches about 120KG.
1.2: Please note that the longer the length of seamless coil is, the more difficult it is to produce, and the higher the price will be.
1.3: the length of the stainless steel coil tubing according to the external diameter and wall thickness of the demand, using the stainless steel pipe theory calculation formula conversion.
1.4: Solemnly declare: the whole reel seamless coil has no welding point.
1.5: According to the demand, can also be used with a number of stainless steel seamless coil butt welding into a few thousand meters above the super-long stainless steel coil tubing.
Finished product inspection: Hydraulic test (10Mpa - 35Mpa)/ air pressure test/eddy current flaw detection test.
Coding identification: According to customer requirements.
Packing method: Using woven bags or plywood boxes, plywood spools, convenient transportation and storage;The finished stainless steel coil will be wrapped into a roll of packing or wrapped in wooden shaft packing, sea, land transportation, air transportation are very convenient, reduce transportation costs and convenient customer inventory storage.
Delivery time:
2.1: T/T settlement can be settled with KG price and rice price.
2.2: The production cycle of stainless steel seamless coil with a single roll weight less than 30KG is about 25-30 days.
2.3: Stainless steel seamless coil tubing single volume weight 30Kg-50Kg production cycle in about 35-45 days.
2.4: Single roll weight of stainless steel seamless coil tubing is 50Kg-120Kg. The production cycle is about 50-60 days.
Product advantages: Stainless steel bright coil tubing in use can be cut according to the required length requirements, bending, reduce waste, reduce costs, especially in the transmission pipeline installation to save the installation of joints, improve ety performance.Seamless coils are a good choice to reduce leakage risk in hydraulic systems.In the process of installation, the use of joints is greatly reduced, and the ety of the whole pipeline system is completely improved.Enhance the security of system operation.
Scope of application: Stainless steel coil tubing is widely used in oil drilling, shipbuilding, aerospace and petrochemical refining equipment, spiral around the pipe heat exchanger, the residual wound tube heat exchanger and cold treatment, chemical industry pipeline, fluid pipe, steam heat preservation pipe, stainless steel heating coil (heating coil pipe), high pressure fluid pipes, stainless steel heat preservation heat insulation pipe line,Anticorrosive stainless steel pipes and cables protected by PVC sheath, umbilical cables and other industries.

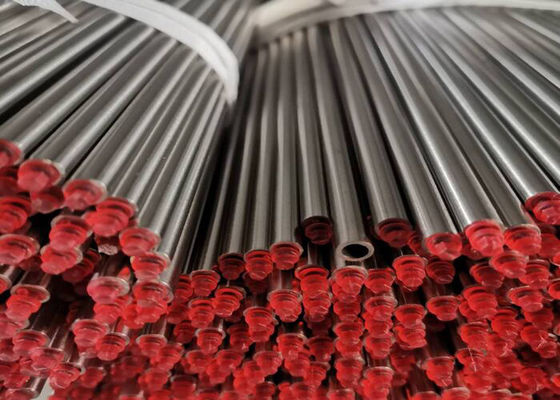

product show:

Stainless Steel Coil Full Premixed Condensing Gas Wall-Hung Furnace 0
