Product Details:
Payment & Shipping Terms:
|
| Source: | China | Model NO.: | Inconel600 |
|---|---|---|---|
| Transport Package: | Bundles | Trademark: | Zheheng |
| HS Code: | 73044190 | Usage: | Pipeline Transport |
| Surface Treatment: | Annealed And Pickled | Section Shape: | Round |
Product Discreption:

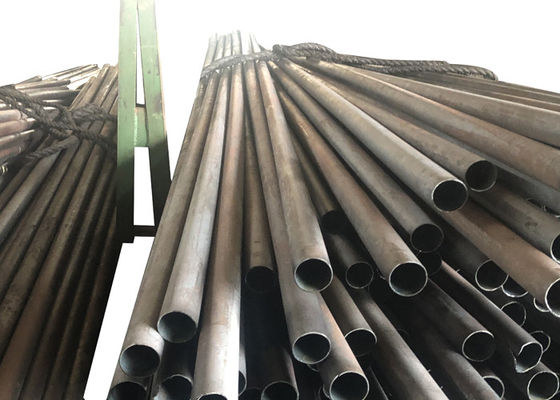

1) Commodity name: Nickel based alloy seamless tube and pipe Inconel600 Incoloy800h Inconel625
2) Process method: Cold finished
3) Surface finish: Annealed/pickled
4) Material: nconel600 Incoloy800 Inconel625 Inconel690 Monel400
5) Standards: ASME SB-167 ASTM B829-2004 ASTM B677-04 ASME SB407
6) Size:
A) O. D.: Φ 6 to Φ 406mm
B) W.T:1mm to 30mm
7) Length: Max. 13 meters (specific or random)
8) Delivery conditions: Annealed, pickled
Nickel base corrosion-resistant alloy.
The main alloy elements are copper, chromium and molybdenum.It has good comprehensive performance, can resist various acid corrosion and stress corrosion.The first application was nickel - copper alloy, also known as monel alloy.In addition, there are nickel-chromium alloys, nickel-molybdenum alloys, nickel-chromium molybdenum alloys, etc.Used to manufacture all kinds of corrosion resistant parts.
Equipment and components for sour-gas service
Reactors for acetic acid production
Sulphuric acid coolers
Methylene diphenyl isocyanate (MDI)
Manufacture and processing of technically impure phosphoric acid
Combustion-resistant alloy for high pressure oxygen applications
| Product | Thickness | Diameter | Wall Thickness | Width | Length |
| Plate | 0.3mm-30mm | 1m/1.22m/1.5m | 1m-11.8m | ||
| Bar | 2mm-300mm | 1m-5m | |||
| Pipe | 6mm-406mm | 0.3mm-30mm | |||
| Forging | 30mm-300mm | 300mm-800mm | 0.2m-1m | ||
| For the plate, bar and pipe, we can cut for you according to your required length from our stock. |
Hastelloy C-276 Chemical composition
| Alloy | % | Ni | Cr | Mo | Fe | W | Co | C | Mn | Si | V | P | S |
| C | Min.Max. | balance | 14.5 16.5 | 15 17 | 4 7 | 3 4.5 | 2.5 | 0.08 | 1 | 1 | 0.35 | 0.04 | 0.03 |
| C276 | Min.Max. | balance | 14.5 16.5 | 15 17 | 4 7 | 3 4.5 | 2.5 | 0.01 | 1 | 0.08 | 0.35 | 0.04 | 0.03 |
Welding of Inconel 600
Any traditional welding procedures can be used to weld Inconel 600 to similar alloys or other metals. Before welding, preheating is needed and also any stain, dust or mark should be cleared by steel wire brush. About 25mm width to welding edge of base metal should be polished to bright.
Recommend filler wire regarding welding Inconel 600: ERNiCr-3
Size Range
Inconel 600 wire, bar, rod, forging, plate, sheet, tube, fastener and other standard forms are available.
