Product Details:
Payment & Shipping Terms:
|
| Features: | Pickling And Annealed | Material: | 316 ,X5CrNiMo17-12-2 ,1.4401 |
|---|---|---|---|
| Standard: | ASTM ,JIS ,EN .DIN | Outside Diameter: | 1 Inch ,1.25 Inch ,1.5 Inch ,2 Inch , |
| Wall Thickness: | SCH10 ,SCH20 ,SCH30 ,SCHSTD ,SCH40 , | Type: | Smls |
| Application: | Superheater, HeatExchanger, And Condenser Tubing | ||
| High Light: | ss seamless tube,304 stainless steel seamless pipe |
||

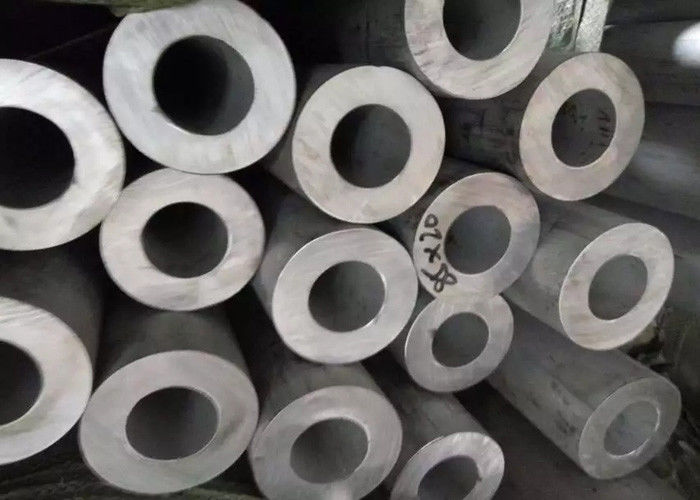

Austenitic Seamless Stainless Steel Tubing ,316 ,X5CrNiMo17-12-2 ,1.4401,1 inch ,1.25 inch ,1.5 inch ,2 inch ,
Zheheng steel deal with 316 AusteniticSeamless Stainless Steel Tubing has different names in different standards, the European standard is 1.4401, the chemical conforms to X5CrNiMo17-12-2 , and in the American standard we are generally called 316, referred to as 316 Seamless Stainless Steel Tubing. Zheheng steel is a Chinese company specializing in the production of various 1 inch ,1.25 inch ,1.5 inch ,2 inch , , 316 austenitic stainless steel seamless tubing. The products are strictly in accordance with the American standard. European standard, Japanese standard implementation.
316 Seamless Stainless Steel Tubing (X5CrNiMo17-12-2) has good oxidation resistance. In the range of 427 ° C - 857 ° C (800 ° F - 1575 ° F), it is preferable not to continuously use 316 stainless steel, but when 316 Seamless Stainless Steel Tubing is continuously used outside this temperature range, the stainless steel has good heat resistance.
Length:As per client's requirement, max length: 12000mm
Standard:ASTM 269 ,ASTM 270 ,ASTM 409 ,ASTM 554 ,ASTM 778 ,
Test:Leak Tightness Test ,Non-destructive Test (NDT)
Material: :316 ,X5CrNiMo17-12-2 ,1.4401
| Chemical Composition about stainless steel Tubing | |||||||
| Grade | C ≤ | Si ≤ | Mn ≤ | P ≤ | S ≤ | Ni ≤ | Cr ≤ |
| 316 | 0.08 | 1 | 2 | 0.045 | 0.03 | 10.00-14.00 | 16.00-18.00 |
List of different names in different countries of the world (316 stainless steel seamless tubing)
| NO | OLD steel grade | New steek grade(07.10) | JIS | ASTM | UNS | KS | BS EN | IS | IS | CNS |
| 12 | 0Cr17Ni12Mo2 | 06Cr17Ni12Mo2 | SUS316 | 316 | S31600 | STS316 | 1.4401 | 04Cr17Ni12Mo2 | 316 | 316 |
Our Inspection and Test Procedure:
1.100% PMI,Spectro Chemical Aanlysis Test for Raw Material
2.100% Dimension & Visual Examination
3. Mechanical Properties Test Include Tension Test,Flaring Test (For Seamless tube/pipe)/ Flange Test (For Welded Pipe & Tube), Hardness Test ,Reversed Flattening Test
4.100% Hydrostatic Test or 100% NON-DESTRUCTIVE Test (ET or UT)
5.Radiographic Test for Welded Pipe (shall be accordance with specification,or shall be as agreed upon between the purchaser and vendor)
6.Straightness Test (optional)
7.Roughness Test (optional)
8.Intergranular Corrosion Test(optional)
9.Impact Test (optional)
10.Grain Size Determinations (optional)
NOTES : ALL THE TESTS AND INSPECTION RESULT NEED TO BE SHOWED IN REPORTS ACCORDING TO STANDARD AND SPECIFICATION.
our products Austenitic Seamless Stainless Steel Tubing ,316 ,X5CrNiMo17-12-2 ,1.4401 paclking show:
