Product Details
Place of Origin: CHINA
Brand Name: zheheng
Certification: ISO9001 PED
Model Number: 25mm
Payment & Shipping Terms
Minimum Order Quantity: Negotiable
Price: Negotiable
Packaging Details: In bundles with waterproof material,or wooden crate packing
Delivery Time: 30 DAYS
Payment Terms: L/C, T/T, D/A, D/P
Supply Ability: 50TONS/30DAYS
Certificates: |
ABS, DNV, GL, BV, PED 97/23/EC, |
Standard: |
Astm Din |
Type: |
Seamless |
Technique: |
Cold Rolling |
Application: |
Gas Turbine Engines |
Material: |
Inconel Alloy718 |
Certificates: |
ABS, DNV, GL, BV, PED 97/23/EC, |
Standard: |
Astm Din |
Type: |
Seamless |
Technique: |
Cold Rolling |
Application: |
Gas Turbine Engines |
Material: |
Inconel Alloy718 |
DIN ASTM alloy pipe inconel 718 tubing material / mechanical properties / composition / density / applications
zheheng steel produce and supply DIN astm alloy inconel 718 seamless pipes ,inconel 718 seamless pipe have good mechanical properties ,composition ,density .they are used in rocket motors, nuclear reactors and spacecraft.
production range:
1. Item: seamless alloy inconel pipe
2. STANDARD : ASTM,AISI,ASME,JIS,DIN,EN,GB,BS,SUS
3. MATERIAL: inconel 600,inconel 625,inconel 718,nitronic 50,nitronic 60,nimonic 75,nimonic 90,hastelloy C276,hastelloy X,incoloy 800,incoloy 825,etc
4. OD :12mm-150mm(1/8"-120")(INCH)
5. WT :1mm-2500mm(Sch5S-SchXXS)
6. LENGTH
1). 5.8m,6m 12m or as required
2). 20feets,40feets
3). random length or as customer request
7.TYPE
Seamless&welded
8.TECHNIC :Hot Rolled; Cold Rolled; Cold Drawn
9.SURFACE :Pickling,annealing,manual polish and mechanical polish , mirror polish
10.PACKING :Standard seaworthy package
(1.plywood case 2.wooden pallet package 3.bundlepackage and other package or as customer request)
Features:
Inconel 718 is an age-hardenable nickel-chromium alloy that combines corrosion resistance with high strength and good fabricability. It has high creep-rupture strength at temperatures up to 700℃. Its excellent relaxation resistance contributes to its application in springs.
Applications:
Gas turbine engines, rocket motors, nuclear reactors and spacecraft.
Note:
Inconel is a registered trademark of the Special Metals Corporation group of companies.
Products description:
Equivalent designations
UNS N07718
DIN W. Nr. 2.4668
| Form | ASTM |
| Rod, bar and forging | B 637 |
| Plate, sheet and strip | B 670, B 906 |
| Seamless pipe and tube | B 983 |
inconel 718 chemical composition
| % | Ni | Fe | Cr | Mo | C | Mn | Si | P | S | Co | Nb+Ta | Ti | Al | Cu | B |
| min | 50 | balance | 17 | 2.8 | 4.75 | 0.65 | 0.2 | ||||||||
| max | 55 | 21 | 3.3 | 0.08 | 0.35 | 0.35 | 0.015 | 0.015 | 1 | 5.5 | 1.15 | 0.8 | 0.3 | 0.006 |
alloy inconel 718 Physical properties
| Density | 8.23 g/cm3 |
| Melting range | 1260-1335℃ |

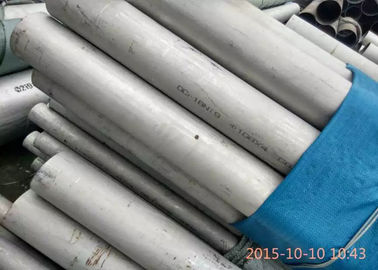

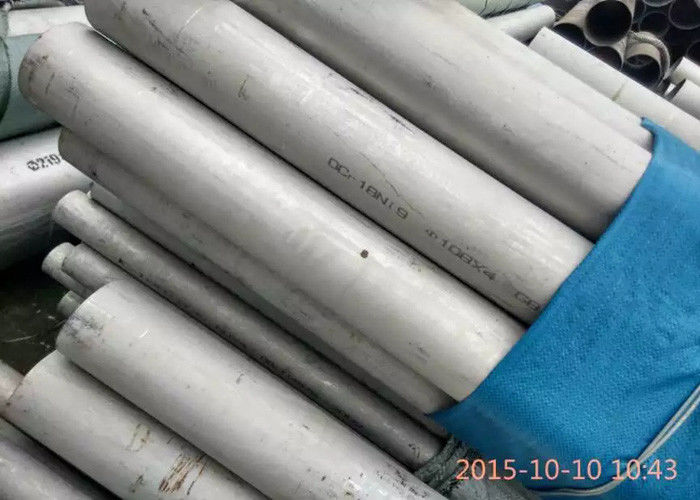

product show:
