Material: | Austenitic Steel | Standard: | ASTM A312 |
---|---|---|---|
Type: | Seamless | Technique: | Cold Roll |
Inspection: | 100% | Application: | Heat Exchanger |
High Light: | stainless steel boiler tubes,bending stainless steel tubing |
Austenitic Steel Sanitary water heat exchanger stainless steel coil tube for High pressure
High pressure stainless steel coil heat exchanger is used to raise the temperature of the fluid to prevent hydrate formation, reduce viscosity, and break down emulsions for efficient separation of oil ,gas and water, providing heat directly from adequate steam usually supplied by a steam generator.The heat exchanging efficiency of this kind of method is higher and can eliminate potential fire risk.
ASTM Standards Referenced Documents:
A262 Practices for Detecting Susceptibility to Intergranular
Attack in Austenitic Stainless Steels
A370 Test Methods and Definitions for Mechanical Testing
of Steel Products
A941 Terminology Relating to Steel, Stainless Steel, Related
Alloys, and Ferroalloys
A999/A999M Specification for General Requirements for
Alloy and Stainless Steel Pipe
A1016/A1016M Specification for General Requirements for
Ferritic Alloy Steel, Austenitic Alloy Steel, and Stainless
Steel Tubes
E112 Test Methods for Determining Average Grain Size
E381 Method of Macroetch Testing Steel Bars, Billets,
Blooms, and Forgings
chemical composition:
ASTM A213 / A213 M | ||
Elements | 304L(wt%) | 316L (wt%) |
(C) Carbon, max | 0.035 | 0.035 |
(Mn) Manganese, max | 2 | 2 |
(P) Phosphorus, max | 0.045 | 0.045 |
(S) Sulfur, max | 0.03 | 0.03 |
(Si) Silicon, max | 1 | 1 |
(Ni) Nickel | 8.0 - 12.0 | 10.0 - 14.0 |
(Cr) Chromium | 18.0 - 20.0 | 16.0 - 18.0 |
(Mo) Molybdenum | N/A | 2.0 - 3.0 |
(Fe) Iron | Bal. | Bal. |
(Cu) Copper | N/A | N/A |
(N) Nitrogen | N/A | N/A |
Chemical Composition of Material |
Material
Composition |
201 | 202 | 304 | 316 | 430 |
C | ≤0.15 | ≤0.15 | ≤0.08 | ≤0.08 | ≤0.12 | |
Si | ≤1.00 | ≤1.00 | ≤1.00 | ≤1.00 | ≤1.00 | |
Mn | 5.5-7.5 | 7.5-10 | ≤2.00 | ≤2.00 | ≤1.00 | |
P | ≤0.06 | ≤0.06 | ≤0.045 | ≤0.045 | ≤0.040 | |
S | ≤0.03 | ≤0.03 | ≤0.030 | ≤0.030 | ≤0.030 | |
Cr | 16-18 | 17-19 | 18-20 | 16-18 | 16-18 | |
N | 3.5-5.5 | 4-6 | 8-10.5 | 10-14 | ||
Mo | 2.0-3.0 | |||||
Mechanical Property |
Material Item | 201 | 202 | 304 | 316 | |
Tensile Strength | ≥535 | ≥520 | ≥520 | ≥520 | ||
Yield Strength | ≥245 | ≥205 | ≥205 | ≥205 | ||
Extension | ≥30% | ≥30% | ≥35% | ≥35% | ||
Hardness (HV) | <253 | <253 | <200 | <200 |
production range:
Austenitic Steel: | TP304,TP304L,TP304H,TP304N, TP310S,TP316,TP316L,TP316Ti,TP316H, TP317,TP317L, TP321, TP321H,TP347, TP347H,904L… |
Duplex Steel : | S32101,S32205,S31803,S32304,S32750, S32760 Others:TP405,TP409, TP410, TP430, TP439 ... |
Russia Standard | 08Х17Т,08Х13,12Х13,12Х17,15Х25Т,04Х18Н10,08Х20Н14С2, 08Х18Н12Б, 10Х17Н13М2Т,10Х23Н18,08Х18Н10,08Х18Н10Т, 08Х18Н12Т,08Х17Н15М3Т, 12Х18Н10Т,12Х18Н12Т,12Х18Н9, 17Х18Н9, 08Х22Н6Т, |
European Standard | 1.4301,1.4307,1.4948,1.4541,1.4878,1.4550,1.4401,1.4404,1.4571, 1.4438,1.4841,1.4845,1.4539,1.4162, 1.4462, 1.4362, 1.4410, 1.4501 |

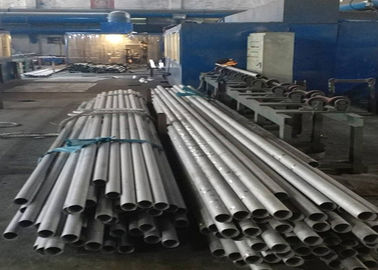

product show:
