TP304 / 304H Stainless Steel Heat Exchanger Tube , Stainless Steel Welded Pipe

Place of Origin CHINA
Brand Name zheheng
Certification ISO9001 PED
Model Number 25mm
Minimum Order Quantity Negotiable
Price Negotiable
Packaging Details In bundles with waterproof material,or wooden crate packing
Delivery Time 30 DAYS
Payment Terms L/C, T/T, D/A, D/P
Supply Ability 50TONS/30DAYS

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Material TP304/304H Standard ASTM A312
Type Seamless Technique Cold Roll
Inspection 100% Thickness +/-0.03mm
Highlight

bending stainless steel tubing

,

metric stainless steel tubing

Leave a Message
Product Description

TP304/304H ASTM A312 stainless steel welded pipe heat exchange stainless steel coil tube



Material: 201,202,304,316,316L;
Standard: ASTM A 554;
Specifications:
20mm x 10mm, 20mmx40mm, 20mmx50mm

25mm x 13mm, 25mmx38mm, 25mmx50mm

30mm x 10mm, 30mmx15mm, 30mmx60mm

45mm x 75mm, 45mmx95mm,

50mm x 100mm, 150mmx100mm;



Thickness: 0.4mm To 3.0mm;
Length: 6m Or as customized;
Tolerance:
Thickness:+/-0.03mm

Dimension:+/-0.03mm

Length:+/-3-5mm



Surface Finish: Mill finish,BA polish(mirrior polish),hair brush ,circular satine polish,etc..
Payment Term: T/T:30% deposit and 70% pay against the Copy of B/L or L/C at sight

Permitted Variations in Wall Thickness
In addition to the implicit limitation of wall thickness
for seamless pipe imposed by the limitation on weight in
Specification A999/A999M, the wall thickness for seamless
and welded pipe at any point shall be within the tolerances
specified in Table 3, except that for welded pipe the weld area
shall not be limited by the “Over” tolerance. The wall thickness
and outside diameter for inspection for compliance with this
requirement for pipe ordered by NPS and schedule number is
shown in Table X1.1.

Mechanical Tests, Grain Size Determinations, and
Weld Decay Tests Required

1 Mechanical Testing Lot Definition—The term lot for
mechanical tests shall be as follows:
1.1 Where the final heat treated condition is obtained,
consistent with the requirements of 6.2, in a continuous
furnace, by quenching after hot forming or in a batch-type
furnace equipped with recording pyrometers and automatically
controlled within a 50 °F [30 °C] or lesser range, the term lot
for mechanical tests shall apply to all pipes of the same
specified outside diameter and specified wall thickness (or
schedule) that are produced from the same heat of steel and
subjected to the same finishing treatment within the same
operating period.
1.2 Where the final heat treated condition is obtained,
consistent with the requirements of 6.2, in a batch-type furnace
not equipped with recording pyrometers and automatically
controlled within a 50 °F [30 °C] or lesser range, the term lot
shall apply to the larger of: (a) each 200 ft [60 m] or fraction
thereof and (b) those pipes heat treated in the same furnace
batch charge for pipes of the same specified outside diameter
and specified wall thickness (or schedule) that are produced
from the same heat of steel and are subjected to the same
finishing temperature within the same operating period.

chemical composition:

ASTM A213 / A213 M
Elements 304L(wt%) 316L (wt%)
(C) Carbon, max 0.035 0.035
(Mn) Manganese, max 2 2
(P) Phosphorus, max 0.045 0.045
(S) Sulfur, max 0.03 0.03
(Si) Silicon, max 1 1
(Ni) Nickel 8.0 - 12.0 10.0 - 14.0
(Cr) Chromium 18.0 - 20.0 16.0 - 18.0
(Mo) Molybdenum N/A 2.0 - 3.0
(Fe) Iron Bal. Bal.
(Cu) Copper N/A N/A
(N) Nitrogen N/A N/A

Chemical Composition of Material

Material



Composition

201 202 304 316 430
C ≤0.15 ≤0.15 ≤0.08 ≤0.08 ≤0.12
Si ≤1.00 ≤1.00 ≤1.00 ≤1.00 ≤1.00
Mn 5.5-7.5 7.5-10 ≤2.00 ≤2.00 ≤1.00
P ≤0.06 ≤0.06 ≤0.045 ≤0.045 ≤0.040
S ≤0.03 ≤0.03 ≤0.030 ≤0.030 ≤0.030
Cr 16-18 17-19 18-20 16-18 16-18
N 3.5-5.5 4-6 8-10.5 10-14
Mo       2.0-3.0



Mechanical Property

Material Item 201 202 304 316
Tensile Strength ≥535 ≥520 ≥520 ≥520
Yield Strength ≥245 ≥205 ≥205 ≥205
Extension ≥30% ≥30% ≥35% ≥35%
Hardness (HV) <253 <253 <200 <200



  410, 1.4501

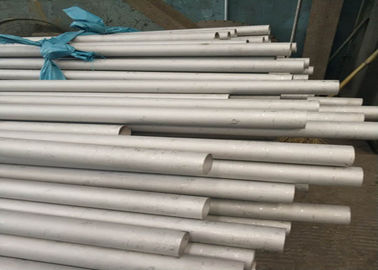

product show:

TP304 / 304H Stainless Steel Heat Exchanger Tube , Stainless Steel Welded Pipe 0
