Product Details
Place of Origin: CHINA
Brand Name: zheheng
Certification: ISO9001 PED
Model Number: 25mm
Document: Product Brochure PDF
Payment & Shipping Terms
Minimum Order Quantity: Negotiable
Price: Negotiable
Packaging Details: In bundles with waterproof material,or wooden crate packing
Delivery Time: 30 DAYS
Payment Terms: L/C, T/T, D/A, D/P
Supply Ability: 50TONS/30DAYS
Material: |
304,316L,2205,904L ,hastelloy C 276 |
Standard: |
ASTM A269/ A213 |
Type: |
Seamless |
Technique: |
Cold Roll |
Outer Diameter: |
3.18-101.6mm |
NDT: |
Eddy Current Or Hydraulic Test |
Material: |
304,316L,2205,904L ,hastelloy C 276 |
Standard: |
ASTM A269/ A213 |
Type: |
Seamless |
Technique: |
Cold Roll |
Outer Diameter: |
3.18-101.6mm |
NDT: |
Eddy Current Or Hydraulic Test |
ASTM A269/ A213 seamless stainless steel U bend heat exchanger tube for oil industry
zheheng steel is one of ASTM A213 stainless steel seamless tube manufacturer, seamless stainless steel u bend heat exchanger tube stockholder, ss cold draw stainless steel tube exporter ,ss cold roll seamless stainless steel heat exchanger tube supplier in china ,
Our heat exchanger tube with pickling and annealing surface is very popular in boilers and heat exchangers industry , water heater industry , air-conditioning industry etc . This kind of seamless tubes are have a very important position in our all products .
Application
a) For fluid & gas transport
b) Structure & machining etc
Advantages
a) Advanced technology of cold draw machine
b) Advanced annealing machine
c) Better mechanical property
d) More precise dimension
e) Perfect inspection method and inspection equipment etc
Repair by Welding
1 For welded pipe whose diameter equals or exceeds NPS 6, and whose nominal wall thickness equals or exceeds 0.200, it is permitted to make weld repairs to the weld seamwith the addition of compatible filler metal using the same procedures specified for plate defects in the section on Repair by Welding of Specification A999/A999M.
2 Weld repairs of the weld seam shall not exceed 20 % of
the seam length.
3 Weld repairs shall be made only with the gas tungsten- arc welding process using the same classification of bare fillerrod qualified to the most currentAWS SpecificationA5.9 as the
grade of stainless steel pipe being repaired and as shown inTable 6. Alternatively, subject to approval by the purchaser,weld repairs shall be made only with the gas tungsten-arc
welding process using a filler metal more highly alloyed than the base metal when needed for corrosion resistance or other properties.
4 Pipes that have had weld seam repairs with filler metal shall be uniquely identified and shall be so stated and identified on the certificate of tests. When filler metal other than that listed in Table 6 is used, the filler metal shall be identified on the certificate of tests.
| Standard | ASTM A554, A249, A269 and A270, A312 | |||||
| Material Grade |
201 ( Ni 0.8%), 202 (Ni 3.5%~4.5%), 301(Ni 5%) 304 (Ni 8%, Cr 18%), 316 (Ni 10%, Cr 18%), 316L (Ni10%~14%), |
|||||
| Outer Diameter | 0.5mm--508mm | |||||
| Thickness | 0.25mm - 60mm | |||||
| Length | 6m or as customers' request | |||||
|
Tolerance |
a) Outer Diameter: +/- 0.2mm | |||||
| b) Thickness: +/- 0.02mm | ||||||
| c) Length: +/- 5mm | ||||||
| Surface |
180G, 320G, 400G Satin / Hairline 400G, 500G, 600G or 800G Mirror finish |
|||||
| Application | Decoration construction, upholstery, industry instrument | |||||
| Test | Squash test, extended test, water pressure test, crystal rot test, heat treatment, NDT | |||||
| Chemical Composition of Material |
Material
Composition |
201 | 202 | 304 | 316 | 430 |
| C | ≤0.15 | ≤0.15 | ≤0.08 | ≤0.08 | ≤0.12 | |
| Si | ≤1.00 | ≤1.00 | ≤1.00 | ≤1.00 | ≤1.00 | |
| Mn | 5.5-7.5 | 7.5-10 | ≤2.00 | ≤2.00 | ≤1.00 | |
| P | ≤0.06 | ≤0.06 | ≤0.045 | ≤0.045 | ≤0.040 | |
| S | ≤0.03 | ≤0.03 | ≤0.030 | ≤0.030 | ≤0.030 | |
| Cr | 16-18 | 17-19 | 18-20 | 16-18 | 16-18 | |
| N | 3.5-5.5 | 4-6 | 8-10.5 | 10-14 | ||
| Mo | 2.0-3.0 | |||||
|
Mechanical Property |
Material Item | 201 | 202 | 304 | 316 | |
| Tensile Strength | ≥535 | ≥520 | ≥520 | ≥520 | ||
| Yield Strength | ≥245 | ≥205 | ≥205 | ≥205 | ||
| Extension | ≥30% | ≥30% | ≥35% | ≥35% | ||
| Hardness (HV) | <253 | <253 | <200 | <200 | ||

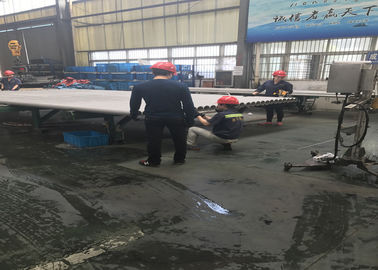

product show:
Video
