Product Details
Place of Origin: CHINA
Brand Name: zheheng
Certification: ISO9001 PED
Model Number: 25mm
Payment & Shipping Terms
Minimum Order Quantity: Negotiable
Price: Negotiable
Packaging Details: In bundles with waterproof material,or wooden crate packing
Delivery Time: 30 DAYS
Payment Terms: L/C, T/T, D/A, D/P
Supply Ability: 50TONS/30DAYS
Material: |
Seamless Stainless Steel Heat Exchanger Tube |
Standard: |
EN10216-5 , EN10216-2 |
Type: |
Seamless |
Technique: |
Cold Roll |
Trade Terms: |
Exw |
Certificates: |
LR,ABS |
Material: |
Seamless Stainless Steel Heat Exchanger Tube |
Standard: |
EN10216-5 , EN10216-2 |
Type: |
Seamless |
Technique: |
Cold Roll |
Trade Terms: |
Exw |
Certificates: |
LR,ABS |
EN10216-5 , EN10216-2 Seamless Stainless Steel Heat Exchanger for pressure vessels equipement
ZHEHENG STEEL has passed approved by ABS, DNV, GL, BV, PED 97/23/EC, AD2000-WO, GOST9941-81, CCS, TS, CNNC, ISO9001-2008, ISO 14001-2004 With good quality and competitive price, we warm a good reputation in domestic and international markets. We hope to build a good and long relationship with customers from home and abroad.
Workmanship, Finish, and Appearance:
The finished pipes shall be reasonably straight and shall have a workmanlike finish. Removal of imperfections by grinding is permitted, provided the wall thicknesses are not
decreased to less than that permitted in Section 9 of Specifi-cation A999/A999M.
Chemical composition:
| Chemical composition | Element | 201 | 202 | 304 | 316 | S31803 | S32750 | |
| C | ≤0.15 | ≤0.15 | ≤0.08 | ≤0.08 | ≤0.030 | ≤0.030 | ||
| Si | ≤1.00 | ≤1.00 | ≤1.00 | ≤1.00 | ≤1.00 | ≤0.80 | ||
| Mn | 5.5-7.5 | 7.5-10.0 | ≤2.00 | ≤2.00 | ≤2.00 | ≤1.20 | ||
| P | ≤0.060 | ≤0.060 | ≤0.045 | ≤0.045 | ≤0.030 | ≤0.035 | ||
| S | ≤0.030 | ≤0.030 | ≤0.030 | ≤0.030 | ≤0.020 | ≤0.020 | ||
| Cr | 16-18 | 17-19 | 18-20 | 16-18 | 21-23 | 21-23 | ||
| Ni | 3.5-5.5 | 4.0-6.0 | 42958 | 43022 | 4.5-6.5 | 6.0-8.0 | ||
| Mo | 2.0-3.0 | 2.5-3.5 | 3.0-5.0 | |||||
| N | ≤0.25 | ≤0.25 | 0.08-0.2 | 0.24-0.32 | ||||
| Cu | ≤0.50 | |||||||
| Mechanical properties | Material Item | 201 | 202 | 304 | 316 | S31803 | S32750 | |
| Tensile Strength (MPa) | ≥655 | ≥620 | ≥515 | ≥515 | ≥620 | ≥800 | ||
| Yield Strength (MPa) | ≥260 | ≥310 | ≥205 | ≥205 | ≥450 | ≥550 | ||
| Elongation (%) | ≥35 | ≥35 | ≥35 | ≥35 | ≥25 | ≥15 | ||
| Hardness (HV) | ≤230 | ≤230 | ≤200 | ≤200 | ≤303 | ≤323 | ||
Production range:
| Austenitic Steel: | TP304,TP304L,TP304H,TP304N, TP310S,TP316,TP316L,TP316Ti,TP316H, TP317,TP317L, TP321, TP321H,TP347, TP347H,904L… |
| Duplex Steel : | S32101,S32205,S31803,S32304,S32750, S32760 Others:TP405,TP409, TP410, TP430, TP439 ... |
| Russia Standard | 08Х17Т,08Х13,12Х13,12Х17,15Х25Т,04Х18Н10,08Х20Н14С2, 08Х18Н12Б, 10Х17Н13М2Т,10Х23Н18,08Х18Н10,08Х18Н10Т, 08Х18Н12Т,08Х17Н15М3Т, 12Х18Н10Т,12Х18Н12Т,12Х18Н9, 17Х18Н9, 08Х22Н6Т, |
| European Standard | 1.4301,1.4307,1.4948,1.4541,1.4878,1.4550,1.4401,1.4404,1.4571, 1.4438,1.4841,1.4845,1.4539,1.4162, 1.4462, 1.4362, 1.4410, 1.4501 |
QUALITY CONTROL
1~ Incoming Raw Material Inspection
2~ Raw Material Segregation to avoid steel grade mix-up
3~ Heating and Hammering End for Cold Drawing
4~ Cold Drawing and Cold Rolling, on line inspection
5~ Heat Treatment, +A, +SRA, +LC, +N, Q+T
6~ Straightening-Cutting to specified length-Finished Measuring Inspection
7~ Machanical Testing in own labs with Tensile Strength, Yield Strength, Elongation, Hardness, Impact, Mictrostruture etc
8~ Packing and Stocking

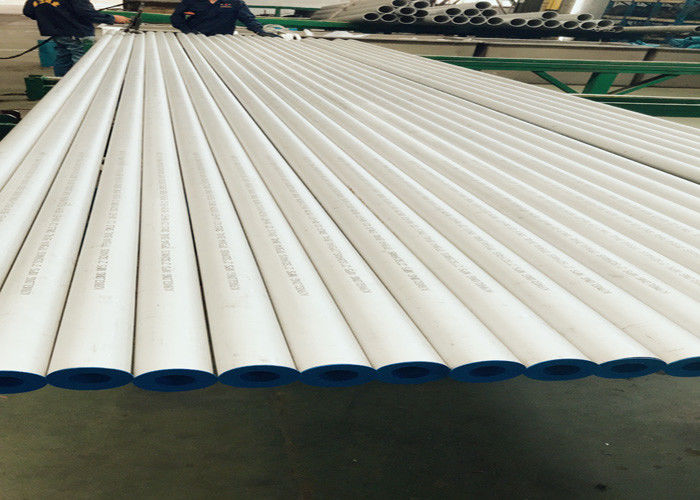

Product show:
