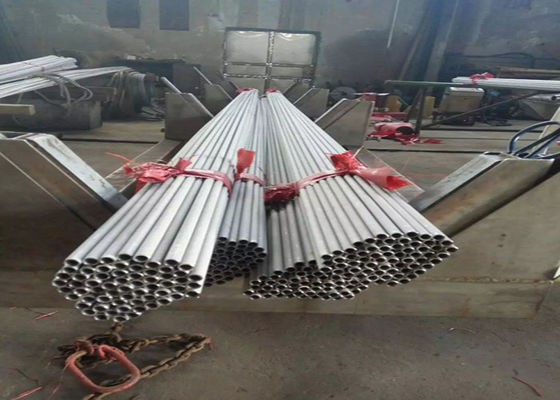

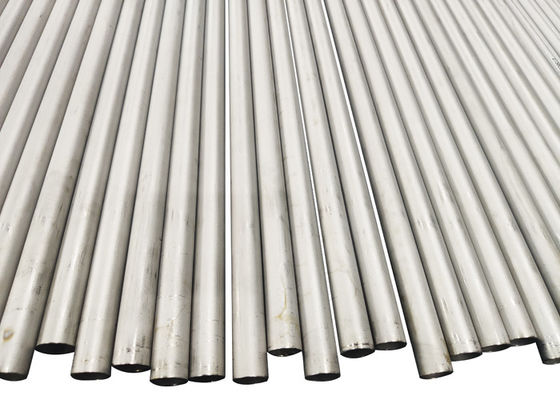

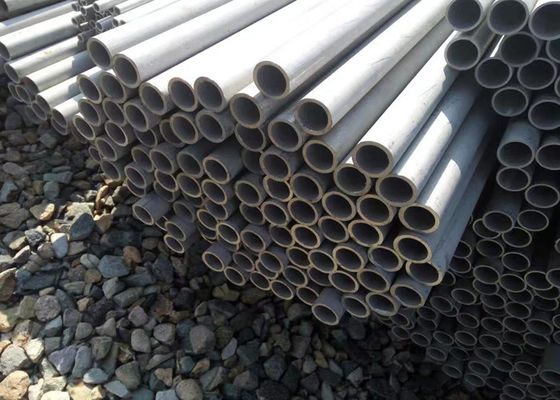

1.4362 EN 10216-5 Stainless Steel Seamless Pipe For Pressure Purposes

  • 1.4362 EN 10216-5 Stainless Steel Seamless Pipe For Pressure Purposes
  • 1.4362 EN 10216-5 Stainless Steel Seamless Pipe For Pressure Purposes
  • 1.4362 EN 10216-5 Stainless Steel Seamless Pipe For Pressure Purposes
  • 1.4362 EN 10216-5 Stainless Steel Seamless Pipe For Pressure Purposes
Place of Origin CHINA
Brand Name zheheng steel
Certification PED,IS09001
Model Number 14
Minimum Order Quantity Negotiable
Price Negotiable
Packaging Details In bundles with waterproof material,or wooden crate packing
Delivery Time 30 DAYS
Payment Terms L/C, T/T, D/A, D/P
Supply Ability 50TONS/30DAYS

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Material 1.4362 Standard AISI, ASTM, DIN, EN,
Shape SCH10, SCH20, SCH30, STD, Technique Cold Draw.cold Roll
Application Oil, Petroleum/Power Package Woven Packing
Highlight

seamless pipes and tubes

,

ss seamless pipe
Leave a Message
Product Description

1.4362 Stainless Steel Seamless pipe and tube Factory



1.4362 is a low-carbon high-alloy stainless steel. Because its nickel content in the composition is less than 4%, the steel grade contains a ferrite-austenitic structure, so it is called duplex stainless steel.



In the corrosion resistance of stainless steel, elemental chromium and molybdenum usually play a major role, and nickel does not play a major role. The function of nickel is mainly to make manganese and copper combine to form austenite crystals at room temperature, so nickel plays a more important role in steel sheet forming than corrosion resistance. Since 1.4362 stainless steel has a higher CR content than 316L and no molybdenum, its corrosion resistance is comparable to that of 316L. However, it has higher corrosion resistance than 304.



product Description:

Grade: 200 series: 201, 202,200Gu, 201Gu,301, 302, 303, 303Gu, 304, 304L, 304Gu,309, 316, 316L, 310, 310S, 316Ti, 316N,317,317L,321,347,347H ,410,416,420,430,904L

Shape: Round ,Square ,Oval,Seamless,Welded,Capillary Pipe, etc

Standard: GB, AISI, ASTM, DIN, JIS, KS, BS

Out diameter: 5-500mm, or as your demands



Thickness: 1-30mm

Length: 2-6m, or as your requirement

Condition: Hot/cold rolled, hot/cold drawn, hot forged

Surface: Bright/black/pickled

Certification: ISO

Application: Stainless Steel can widely use for Industries, Constructions, Decorations, Life, Medical, Transportation, Chemical industry, Solar energy, Marine, Aviation, etc.

Size Range:
Outer Diameter Tolerance
6~30 0.15/-0.2
>30-50 ±0.30
≤50 ±0.75%D
Wall Thickness Tolerance
D≤38 20%/t, -0
D>38 22%/t, -0
Bend Tolerance
T≤15 1.5mm
T≤15 1.5mm


Chemical Composition(%):

Steel Number C Si Mn P S Cu Cr Ni Mo
1.4362 ≤0.03 ≤1.00 ≤2.00 ≤0.035 ≤0.015 0.10-0.60 22.0-24.0 3.6-5.5 0.10-0.60


Merchanical Properties:

Steel Number Tensile properties at room temperature Impact prpperties
Proof strength Tensile strength Rm Elongation Amin(%)

Minimum average

absorbed energy KV (J)
Rp0.2
min		 at RT at-40℃
Mpa Mpa l t l t t
1.4362 400 600-820 25 25 120 90 40



      ≤2.00 ≤2.00 ≤1.00
P ≤0.06 ≤0.06 ≤0.045 ≤0.045 ≤0.040
S ≤0.03 ≤0.03 ≤0.030 ≤0.030 ≤0.030
Cr 16-18 17-19 18-20 16-18 16-18
N 3.5-5.5 4-6 8-10.5 10-14
Mo       2.0-3.0



Mechanical Property

 Material Item 201 202 304 316
Tensile Strength ≥535 ≥520 ≥520 ≥520
Yield Strength ≥245 ≥205 ≥205 ≥205
Extension ≥30% ≥30% ≥35% ≥35%
Hardness (HV) <253 <253 <200 <200



Packing details:

1. by bundles, each bundle weight under 3 tons, for small outer diameter steel pipe, each bundle with 4 - 8 steel strips.
2. after making by bundle, covered with Polyethylene waterproof cloth.
3. make black paints painting on each pipe, then make bundles
Port: Tianjin port or any other port in China
Delivery Details : 7-30 days after payment




OUR CONTACT :

Welcome to contact for more details.

Contact Person Mr SHEN
MAIL  sales@zhehengsteel.com
Skype shenbain



Our products packing:

1.4362 EN 10216-5 Stainless Steel Seamless Pipe For Pressure Purposes 0
